High-performance Embedded Workshop 16. Using the Test Support Facility
REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
253
16.6.2.7 Code-Trace (Trace window)
The following table shows information on the test-image data to be saved into test-image files and test results (not
matched).
Test group name Code
Test item name Trace
Test-image data to be
saved into test-image files Values set as detailed information and the range of data in the Trace window acquired with this setting.
No trace range is specified by default.
Comparing PTR
Compared trace range
Trace type Trace type
Trace data is not matching. PTR Unmatched trace range
Src
Content of the test-image file
Dest Data in the current High-performance Embedded Workshop system or
in another test-image file to be compared with
Test result details
Example Comparing PTR -3 to -1. Trace type : Trace.
Trace data is not matching. PTR:-3 to PTR:-1
Trace data at the beginning of difference. PTR:-3
Src : 0000001879 0000107C F->DEMMW MOV.L @R15+, R1 R1<-
00000010
Dest: 0000001887 00000818 FD
To make detailed setting (with one trace type)

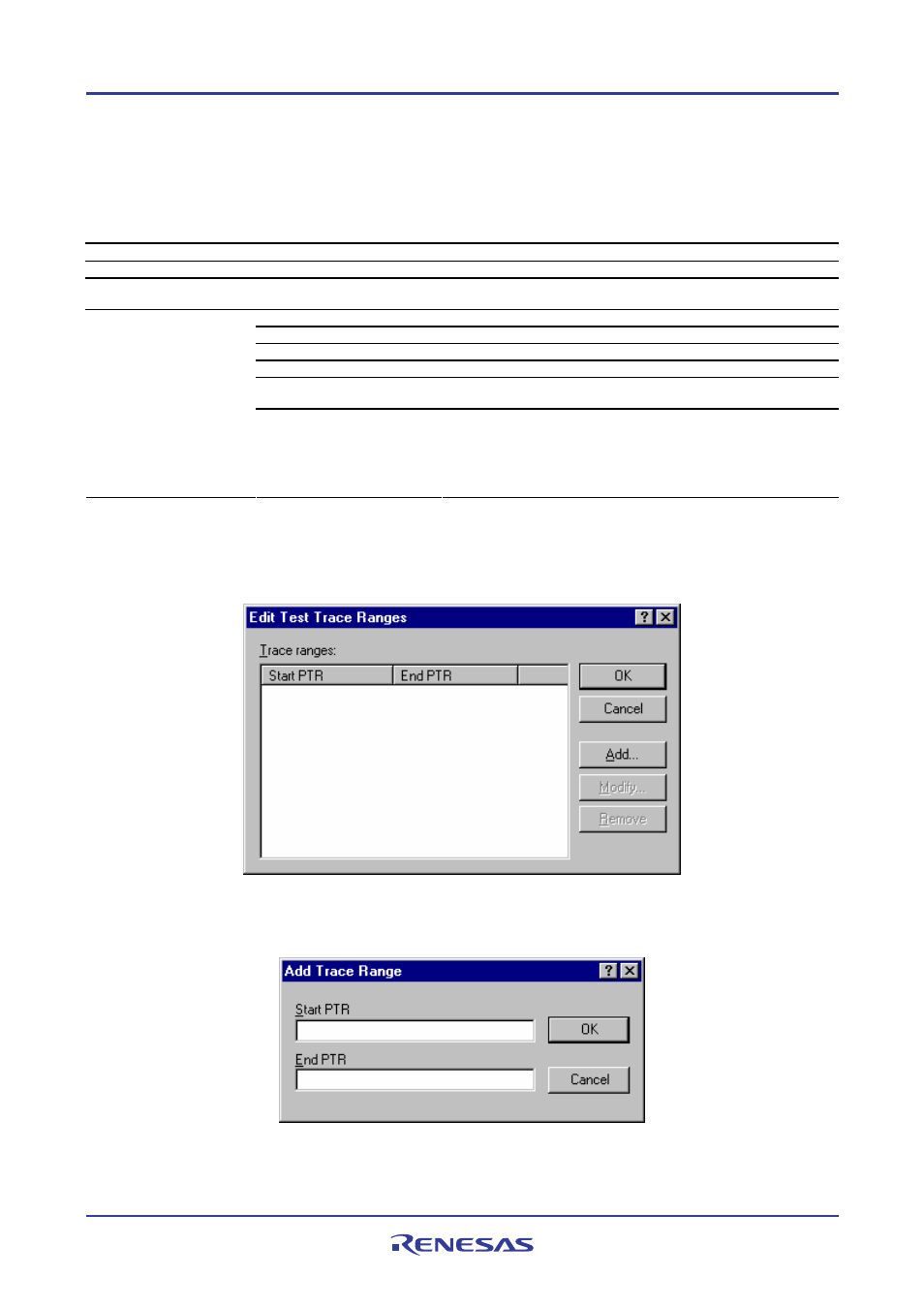

If you double-click on a test item in the Create New Test Image dialog box, a further dialog box for detailed setting
opens.
• To add a trace range
1. Click on the Add button on the Edit Test Trace Ranges dialog box to open the Add Trace Range dialog box.
2. Specify Start PTR, and End PTR to set a trace range to be saved into a test-image file.
