High-performance Embedded Workshop 18. Synchronized Debugging
REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
376
18. Synchronized Debugging
The synchronized debugging system is designed to help with debugging multi-core devices.
It allows you to run programs on multiple CPU cores and synchronize common debug operations (Go, step, halt etc.)
between the cores. The Synchronized Debug dialog box is the main entry point for configuring and initiating the
synchronized debugging system.
Options related to synchronized debugging are saved in “SDO” files. These are always located in the “Sync” directory.
This is defined as:
“\Renesas\HEW\hew_001\Sync”
The local settings directory is set by Windows® and is normally:
Window® 2000 operating system or Windows® XP operating system:
“C:\Documents and Settings\\Local Settings\Application Data”
Window Vista® operating system:
“C:\Users\\AppData\Local”

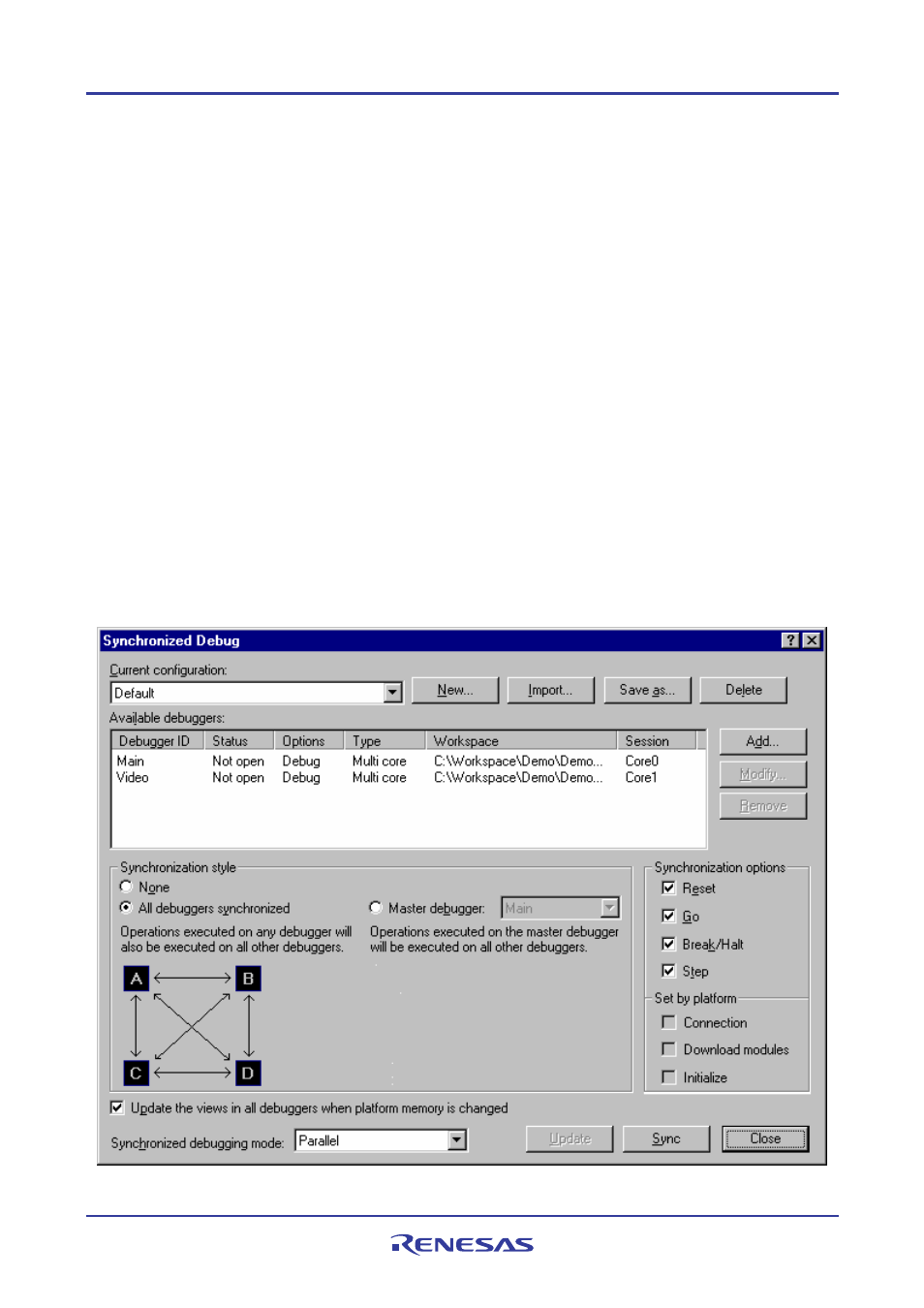

18.1 The Synchronized Debug dialog box
Select Synchronized Debugging from the Debug menu to open the Synchronized Debug dialog box.
This can be done when High-performance Embedded Workshop initially starts up or when there is a workspace open.
There is also an option to open the dialog from the High-performance Embedded Workshop Welcome! dialog box.
