High-performance Embedded Workshop 16. Using the Test Support Facility
REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
251
• To add a simulated I/O range

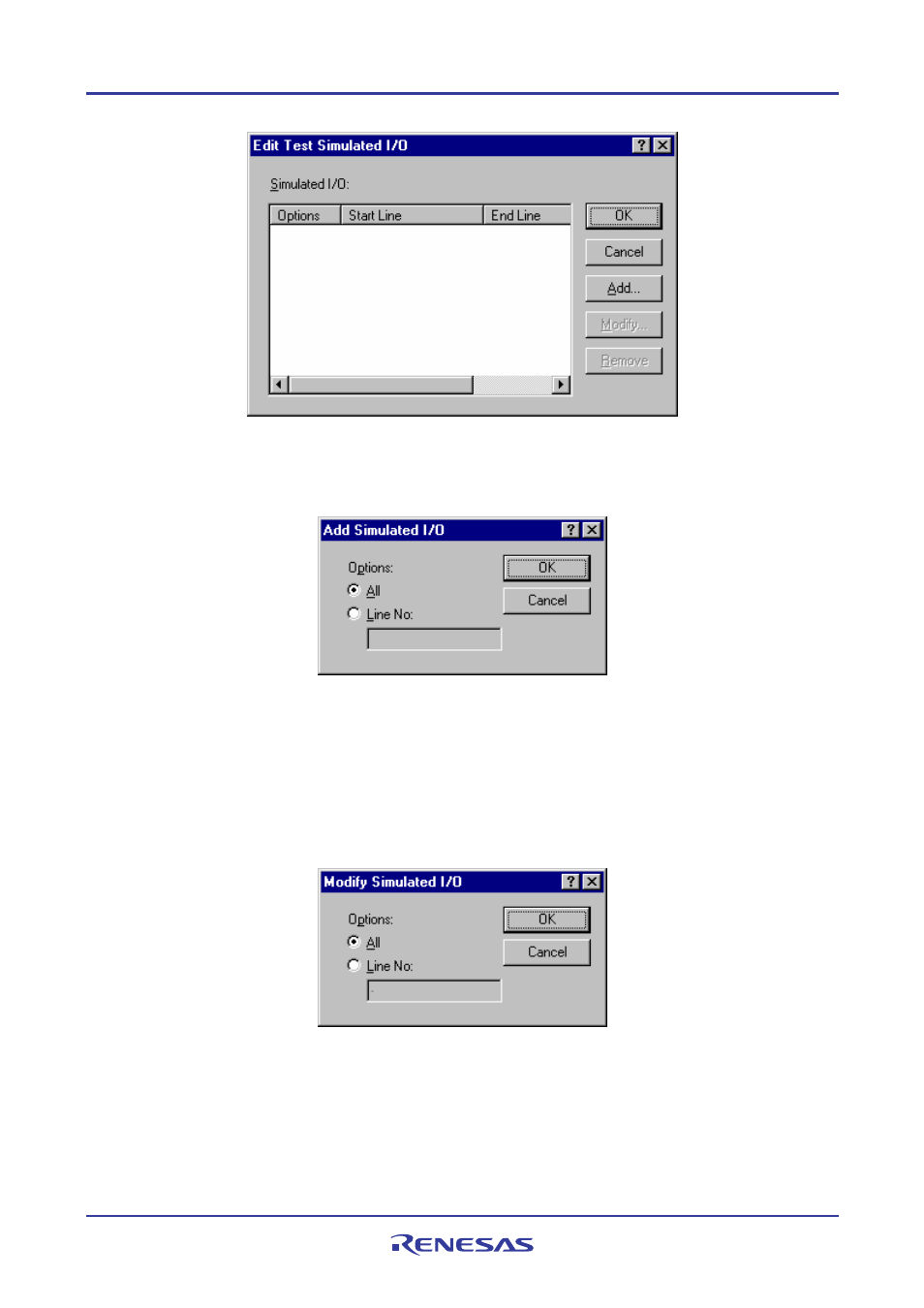

1. Click on the Add button on the Edit Test Simulated I/O dialog box to open the Add Simulated I/O dialog
box.
2. Specify All or Line No to set a I/O simulation range to be saved into a test-image file.
3. Click OK.
• To modify a simulated I/O range
1. Click on the Modify button on the Edit Test Simulated I/O dialog box. The simulated I/O range selected in
the Simulated I/O list will be modified. Only one variable is selectable in the list. The Modify Simulated I/O
dialog box opens.
2. Specify All or Line No to set the I/O simulation range to be saved into a test-image file.
3. Click OK.
