High-performance Embedded Workshop 17. Using the Debugger
REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
332

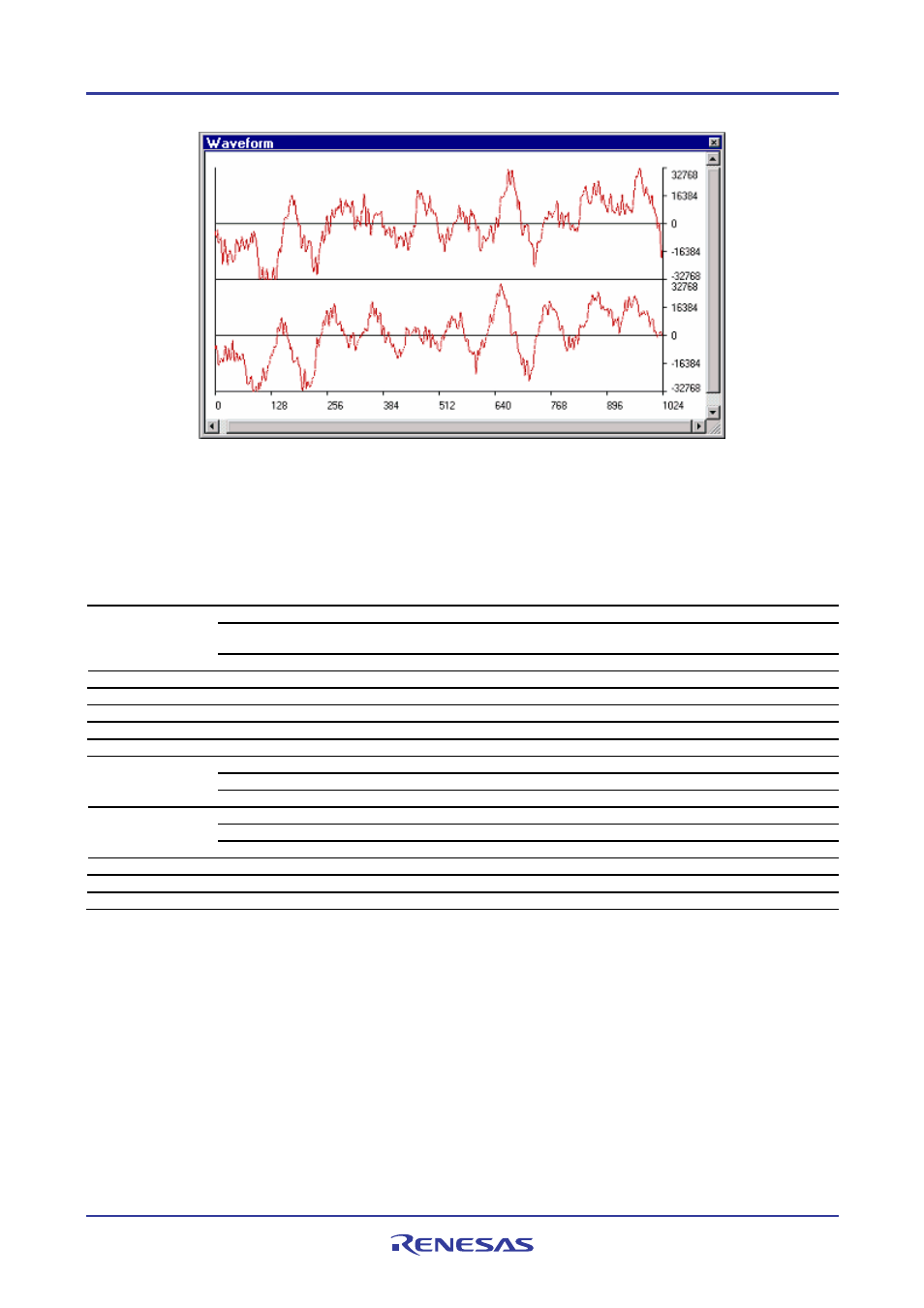

• If you double-click the coordinate where you wish to view the sampling information, the Sample Information
dialog box appears.
Options
Right-clicking displays a pop-up menu containing available options.
Pop-up Menu Option Macro Recording Function
Nonrefresh - Disables refresh of the Waveform window.
Stop - Automatically refreshes the Waveform window when user program
execution stops.
Auto Refresh
Real time - Regularly refreshes the Waveform window.
Refresh Now - Refreshes the Waveform window.
Update Interval * - Specifies the refresh interval.
Zoom In - Zoom-in display.
Zoom Out - Zoom-out display.
Reset Zoom - Resets the zoom display.
X2 - The zoom magnification is 2.
X4 - The zoom magnification is 4.
Zoom Magnification
X8 - The zoom magnification is 8.
128 - The size of the X-coordinate is 128 pixels.
256 - The size of the X-coordinate is 256 pixels.
Scale
512 - The size of the X-coordinate is 512 pixels.
Clear Cursor - Hides the cursor display.
Sample Information - Displays the sampling information of the cursor location.
Properties - Opens the Waveform Properties dialog box.
Note:
*. Available only when the debugger supports this function.
17.5.2 Regularly refreshing the Waveform window
Selecting [Auto Refresh -> Nonrefresh] from the pop-up menu will not refresh the window.
Selecting [Auto Refresh -> Stop] from the pop-up menu will allow the window contents to be automatically refreshed
when user program execution stops.
Selecting [Auto Refresh -> Real time] from the pop-up menu will allow the window contents to be refreshed while the
user program is running.
