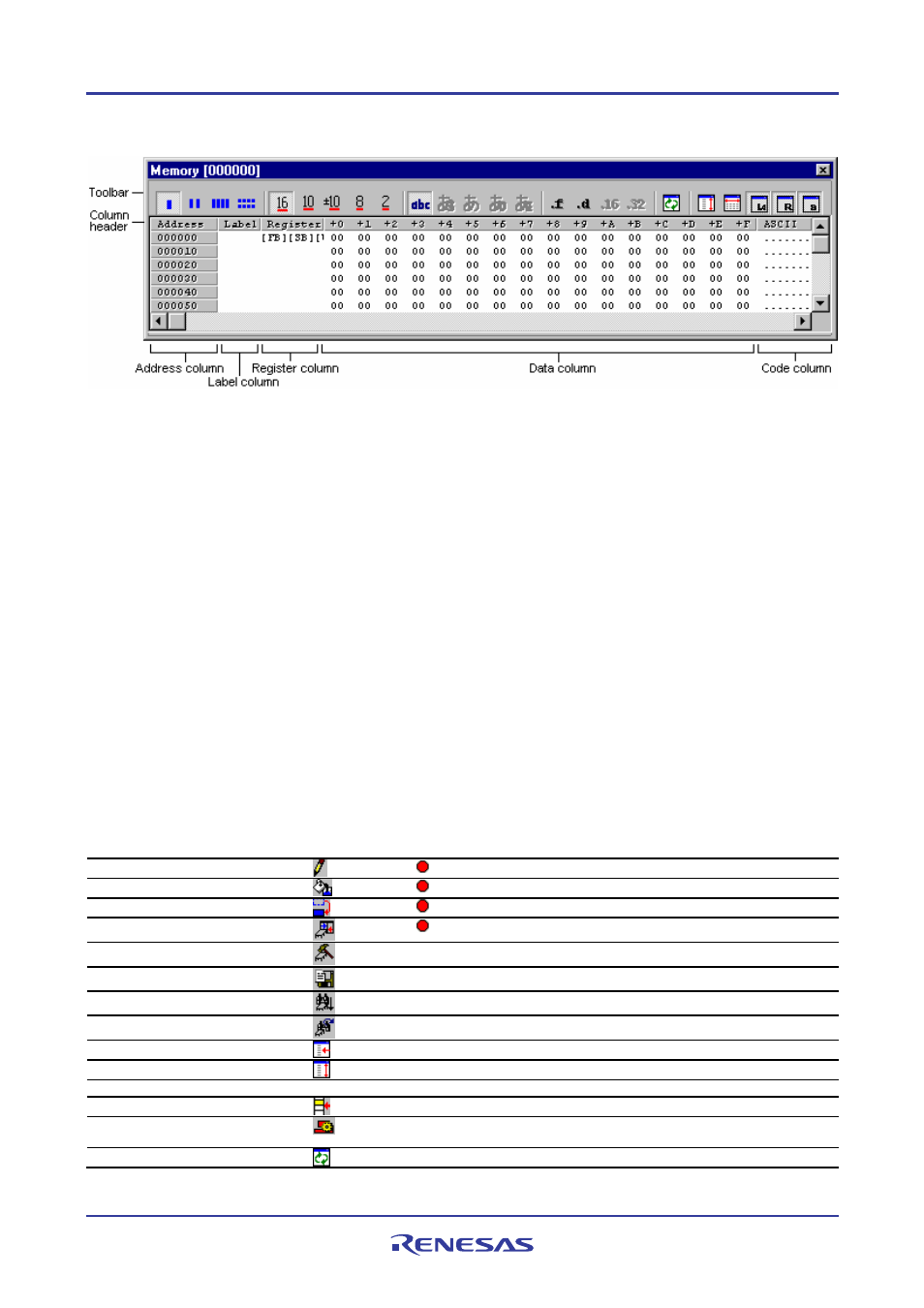

Window configuration

• The Label and Register columns are hidden by default.
• The Label column shows the name of the label allocated to the first address of the memory data displayed on

this row.

• The Register column shows the name of the register allocated to the first address of the memory data displayed

on this row.

• '+n' in the column header of the Data column means the offset value from the first address of the row.
• The column header of the Code column shows the code name.
• Double-clicking the Address or Label column opens a dialog box, which allows you to change the display start

address.

• A dialog box which allows you to change the memory data at the clicked address by double-clicking the Data

or Code column. Changing of the value can be recorded in a macro (Macro Recording).

• The Address, Data, and Code columns can be changed by using in-place editing. (Macro Recording)

Options

Right-clicking displays a pop-up menu containing available options.

A basic operation is allocated to the toolbar.

The Toolbar display and Customize toolbar options are also included in the pop-up menu opened by right-clicking on
the toolbar.

Pop-up Menu Option

Toolbar Button Macro Recording Function

Set

Sets data at specified address.

Fill

Fills specified memory block with data.

Move

Moves specified memory block to.

Compare *1

Compares the contents of two memory blocks.

Test *1

Tests an area of memory.

Save Memory contents

Saves memory contents in a text file.

Search *1

Finds a value in memory.

Search Next *1

Finds a next value in memory.

Address

Specifies the display start address.

Scroll Area

Specifies scroll range.

(xxxxx)

Starts address to value of the register.

Followed Stack Pointer *1

Keeps tracking of the stack pointer position.

Set Start Up Symbol

Changes the program display position immediately after
downloading.

Refresh

Refreshes the Memory window.
