saved into test-image files setting. Checkboxes for all watch points are blank by default.
Failed at xxx , data value is different: Name of the unmatched watch point
Src
Content of the test-image file
Dest Data in the current High-performance Embedded Workshop
system or in another test-image file to be compared with
Test result details
Example Failed at 414, data value is different: Src = 0000, Dest = 0001
To make detailed setting
If you double-click on a test item in the Create New Test Image dialog box, a further dialog box for detailed setting
opens.

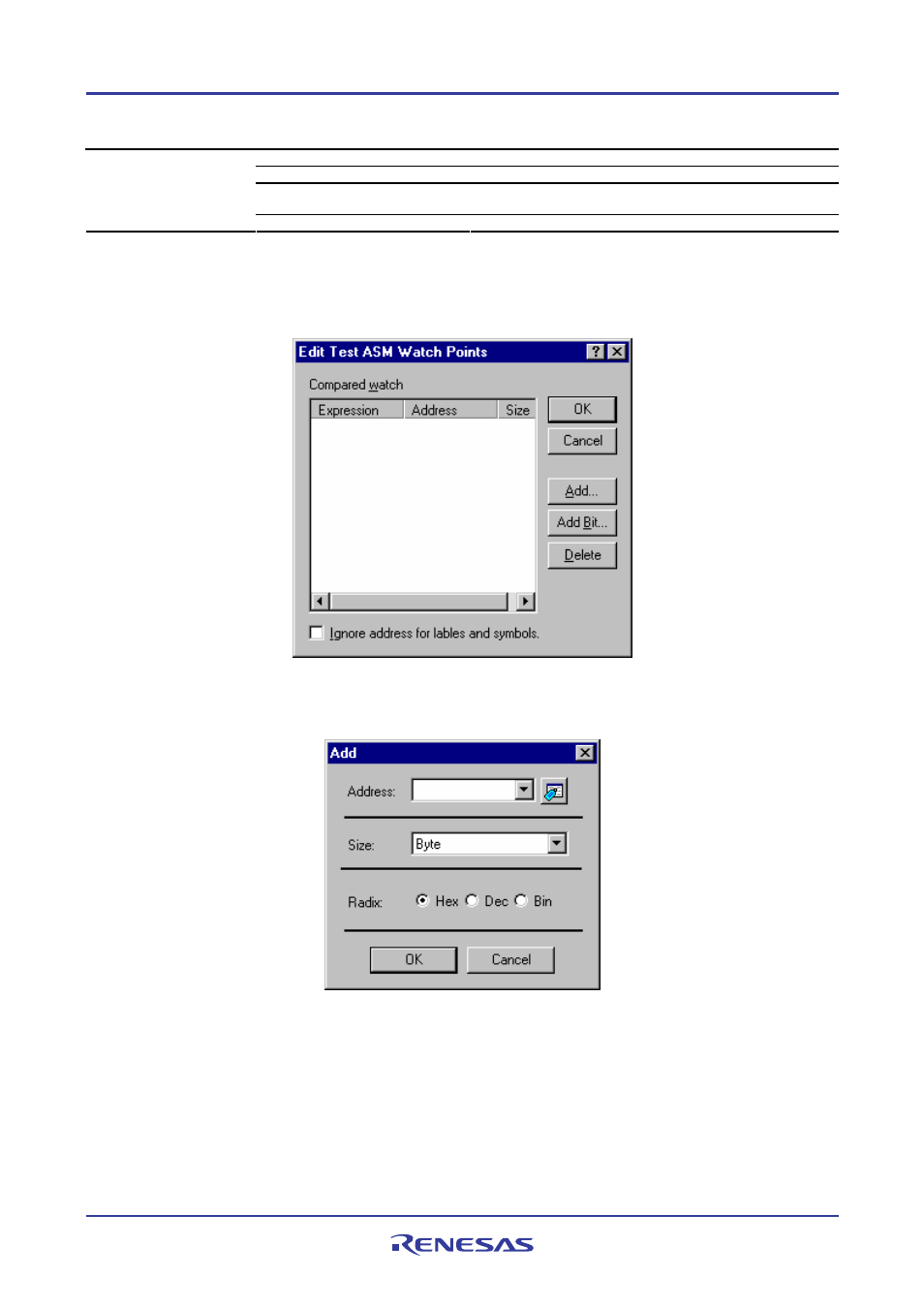

• To add a watch point
1. Click on the Add button on the Edit Test ASM Watch Points dialog box to open the Add dialog box.
2. Specify Address, Size, and Radix to set a watch point to be saved into a test-image file.
3. Click OK.
• To add a bit-level watch point
1. Click on the Add Bit button on the Edit Test ASM Watch Points dialog box to open the BitAdd dialog box.
