High-performance Embedded Workshop 16. Using the Test Support Facility
REJ10J1837-0100 Rev.1.00 Nov. 16, 2008
252
• To remove a simulated I/O range
1. Click the Remove button on the Edit Test Simulated I/O dialog box. The simulated I/O range selected in the
Simulated I/O list will be removed. Only one simulated I/O range is selectable in the list.
Then click OK.
16.6.2.6 Code-Coverage (Coverage window)
The following table shows information on the test-image data to be saved into test-image files and test results (not
matched).
Test group name Code
Test item name Coverage
Test-image data to be
saved into test-image files Values set as detailed information and the range of data in the Coverage window acquired with this
setting. No test range is specified by default.
Range
Coverage range
Instruction Execution Unmatched test option
mismatch at Unmatched address
Image Content of the test-image file
System Data in the current High-performance Embedded Workshop system or in
another test-image file to be compared with
Test result details
Example Range DemoSH4.c:
Instruction Execution Time mismatch at 0x20E4 -- Image: 1 System: 0

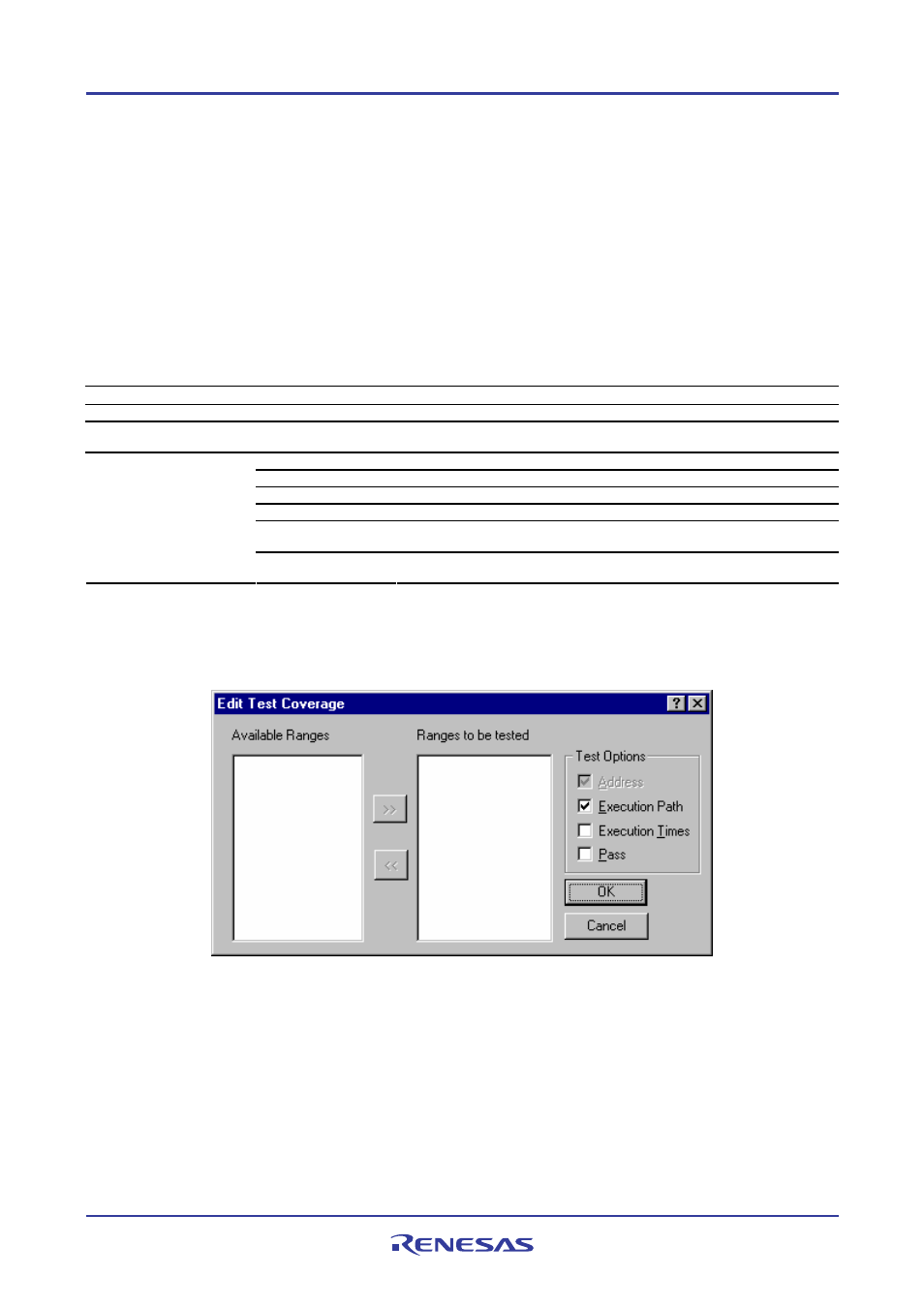

To make detailed setting
If you double-click on a test item in the Create New Test Image dialog box, a further dialog box for detailed setting
opens.
1. The Available Ranges list shows the coverage ranges that are currently available.
2. If you select coverage ranges in the Available Ranges list and click the ">>" button, these coverage ranges
then appear in the Ranges to be tested list.
3. The Address checkbox among test options is always ON because addresses must be saved whenever coverage
ranges are saved into test-image files (users cannot control this selection). To set other test options Execution
Path, Execution Times, and Pass, select the check boxes for these options. The Execution Path checkbox is
selected by default. Other check boxes are not selected by default.
4. Click OK.
