Bandwidth Management

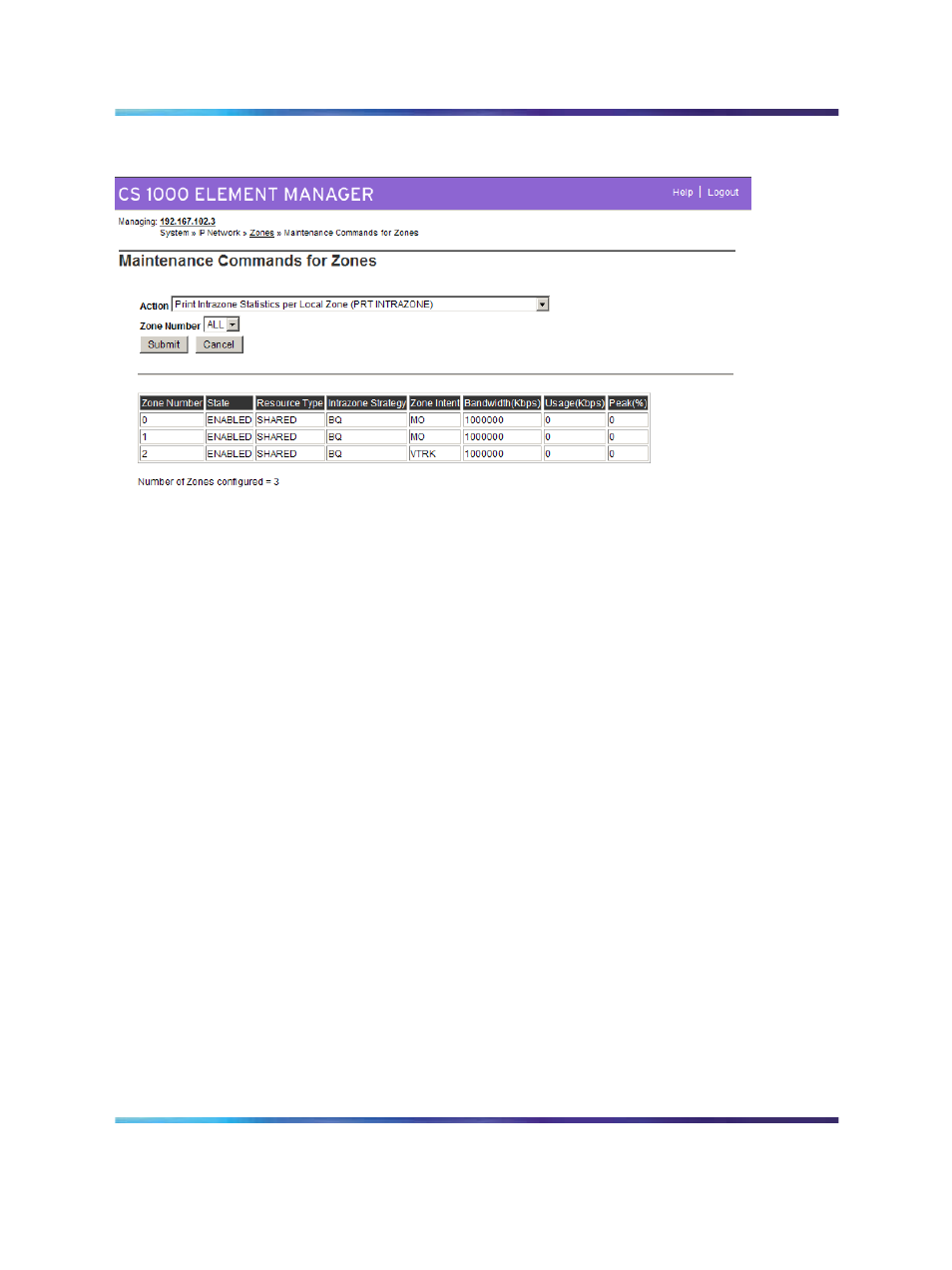

Figure 15
Maintenance Commands for Zones web page

Do one of the following:

•

To display intrazone statistics:

1. Select Print Interzone Statistics (PRT INTERZONE) from

the Action drop-down list.

2. Select a zone from the Zone Number drop-down list, by

doing of the following:

•

Select ALL to print statistics for all zones.

•

Select a specific zone number to display statistics for a
specific zone.

•

To display interzone statistics:

1. Select Print Intrazone Statistics per Local Zone (PRT

INTRAZONE) from the Action drop-down list.

2. Select a zone from the Near End Zone Number drop-down

list, by doing of the following:

•

Select ALL to print statistics for all zones.

•

Select a specific zone number to display statistics for a
specific zone.

Click Submit.
