Installing and configuring IP Phones 267
2002 have a one-line display. The IP Phone 2004, IP Phone 2007 and IP
SoftPhone 2050 have a three-line display. Users can scroll through the
display screens using the navigation keys.
Procedure 24
Using Set-Based Installation
Step Action
This procedure installs IP Phones at the Branch Office and main office. If
necessary, the administrator can perform a Set-Based Installation when
the Branch User is in Local Mode.
1 To configure the S1 (primary connect server) on the IP Phone,
choose DHCP, or manually enter the IP address of the local (MG
1000B) TPS node. Enter the Branch Office node number and
password, as shown in
Figure 93 "Set-Based Installation Step 1"
(page 267) .

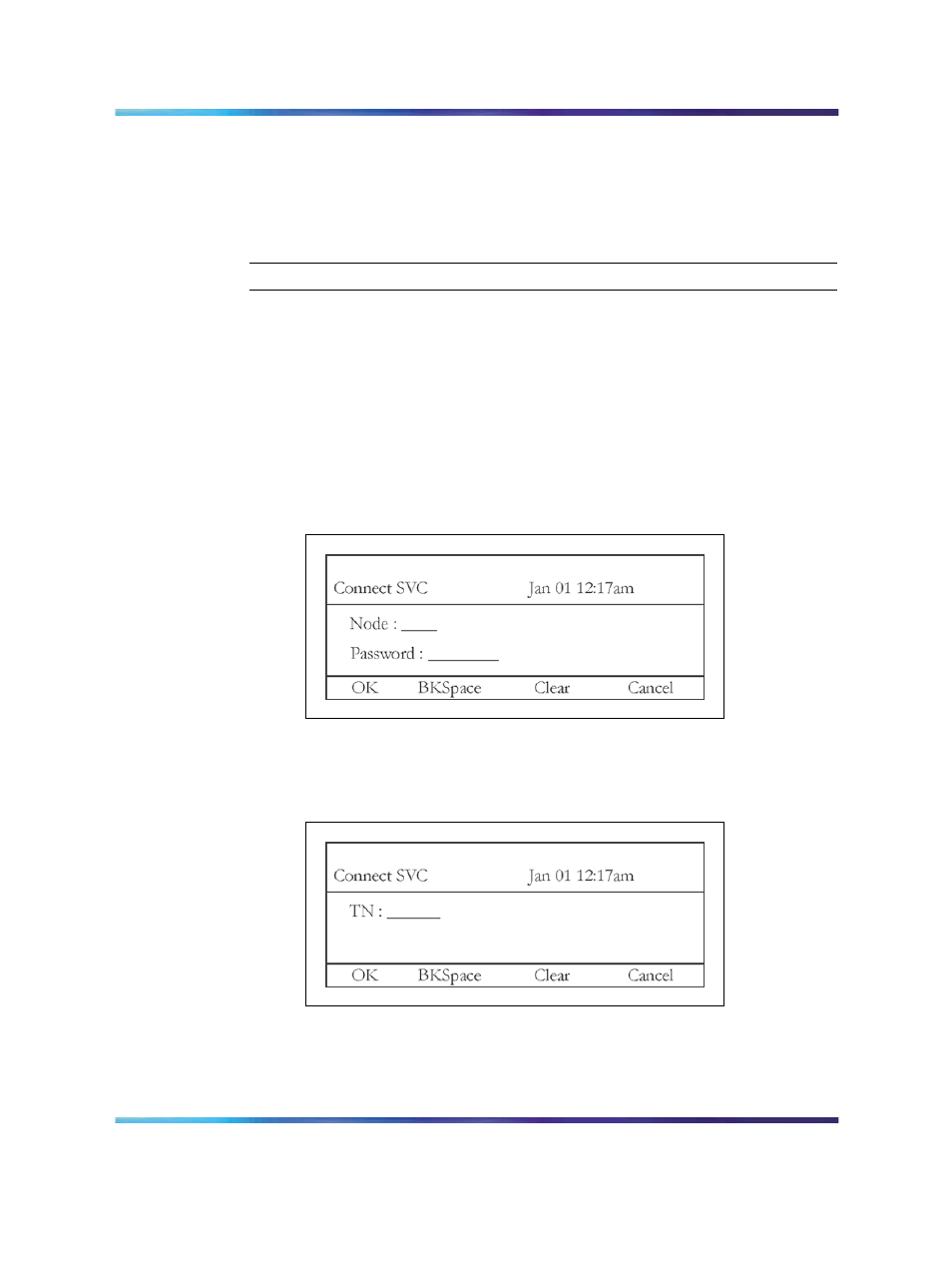

Figure 93
Set-Based Installation Step 1
2 Enter the TN and press the OK soft key, as shown in Figure 94
"Set-Based Installation Step 2" (page 267) .
Figure 94
Set-Based Installation Step 2
3 Wait for the default key map to download. The screen appears as
shown in
Figure 95 "Set-Based Installation Step 3" (page 268) .
