Local Aux Module Device Control
Ganging
The Gang Control function in the Local Aux Module allows a single point
of control for multiple devices (
Figure 211 ). The points of control are:
• The right-most Device Control Group on the System Bar, and
• The Device Control Module option.
Note An Aux bus link overrides a set delegate association in the System Bar.
Kayenne systems equipped and configured properly support device
control of Profile DDRs and VTRs. The Gang function permits control of
multiple external devices with the same set of panel controls. Devices can
be ganged so they play together at the same time (original and backup
tapes, for example).
Note The Kayenne Gang function does not synchronize multiple devices and there
is a possibility devices may not respond to a Play or Stop command at pre-
cisely the same time. This may cause a slight offset in playback of multiple
clips.

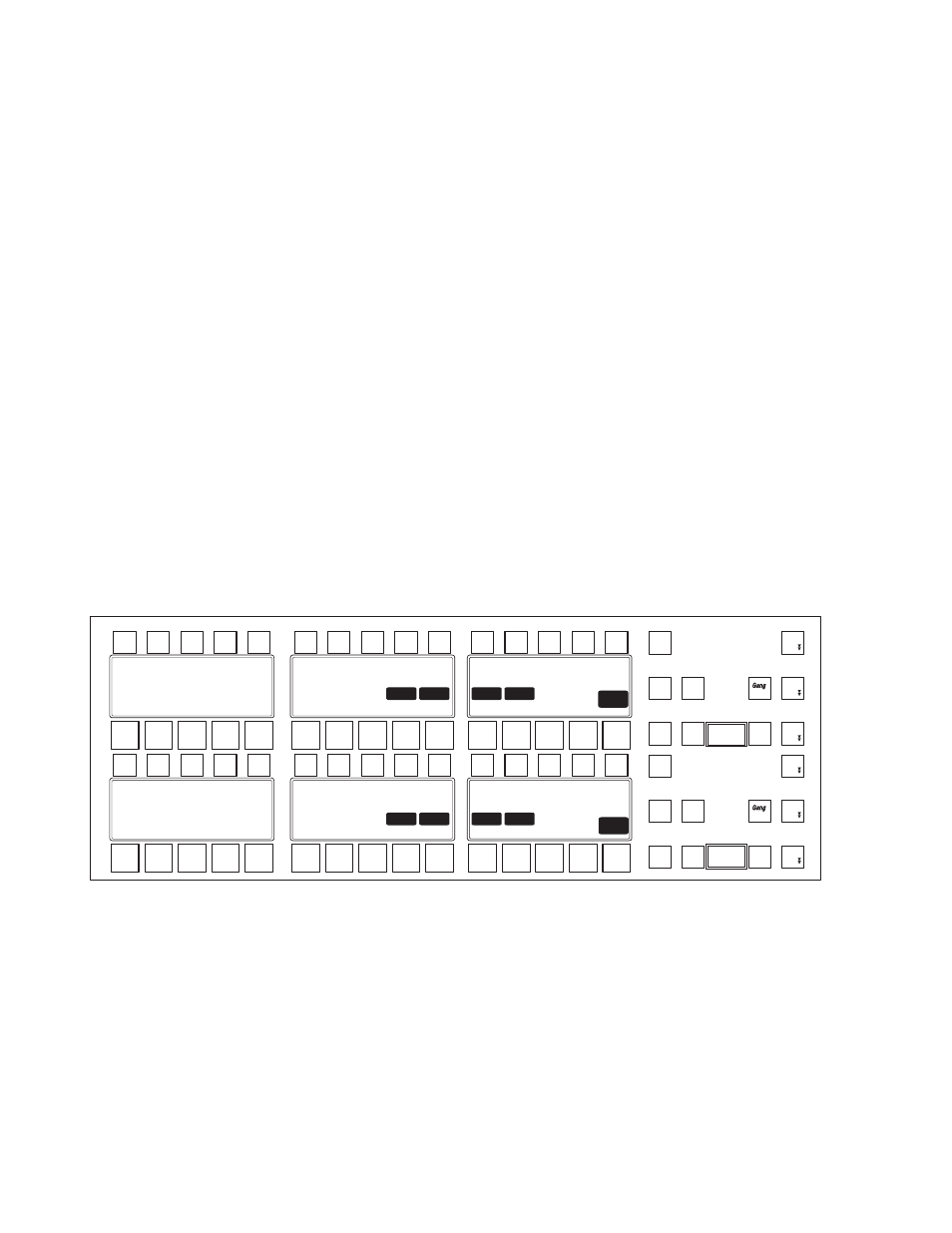

Figure 211. Local Aux Module
To set up a gang for control, perform the following:
1. Press one of the Gang buttons on the Local Aux Module (right). GANG
is displayed in the top row however the button displays are blank. The
bottom row display shows sources mapped to buttons on the Local Aux
Module, in the Panel Prefs, Button Mapping menu. Buttons are colored
white and are low tally.
