Keypad operation: To select a different directory, use the
↑ and ↓ keys on the
keyboard. To add a new directory, use the + key on the keyboard. To remove a
directory, use the - key on the keyboard.
Note: This selection is only available if you are saving a file to the diskette or USB
memory stick from the hard drive.
Files
Lists all the files in the upload from directory that can be uploaded to the host computer.
To remove a file, double-click on the touch screen where indicated.
Keypad operation: To scroll through different files, use the
↑, ↓, Page Up and Page
Down keys on the keyboard. To remove a file, use the - key on the keyboard. To select
multiple files to upload, highlight the first file selection, then use the
↑ and ↓ keys while
pressing the shift key to highlight the remaining files.
Local file name
The name of the local file that will be uploaded to the host computer.
Preview
If you check this box, you can preview the file you selected in the Preview window.
Keypad operation: To check or uncheck the box, press the SPACE key on the keyboard
when the Preview box has the focus.
Loading Invalid Files
While loading the desired part file, the control will check the part for proper geometry

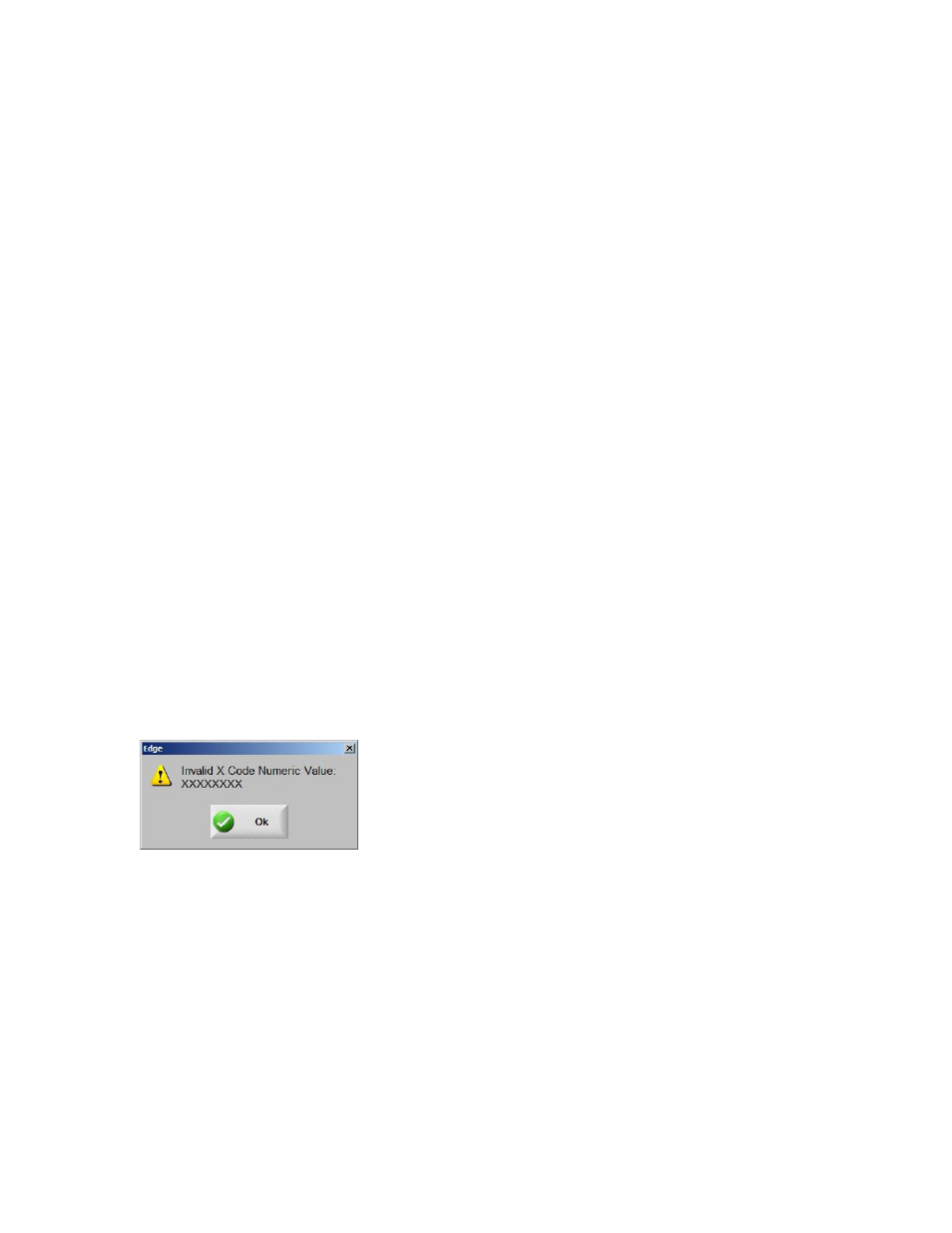

and other errors. If an error is detected, a message is displayed:
If the system attempts to load the part, the control highlights the invalid line of code from
the text editor.
For example, in the following sample code, the line of code “XXXXXXXX” is invalid
and has been circled for easy detection. Correct the file using the text editor. After the
invalid code is corrected, the control will attempt to translate the part file and will
indicate additional invalid codes.
