MAXQ Family User’s Guide:

MAXQ2010 Supplement

21-8

21.2.4 Timer B Clock Output Mode

Timer B can be configured to drive a clock output on the TBA pin as shown in Figure 21-4. For the timer to operate in
this mode, the capture/reload select bit (CP/RLB = TBnCN.0) and the counter/timer select bit (C/TB = TBnCN.15) must
be cleared to 0, and the Timer B output-enable bit (TBOE = TBnCN.5) ) must be set to 1. In this mode, the DCEN bit
has no effect. The clock signal output is a 50% duty-cycle square wave with a frequency given by the equation:

Clock Output Frequency = System Clock/(2 x TBnR)

Therefore, for a system clock of 1MHz and a TBnR register value of 0005h (arbitrary example), the clock output fre-
quency is 100kHz.

21.2.5 Timer B PWM/Output Control Functionality

The PWM/output control function is enabled whenever either of the TCBS or TBCR bits (TBnCN[12:11]) is set to 1. Table
21-4 shows how these bits determine the specific operation.

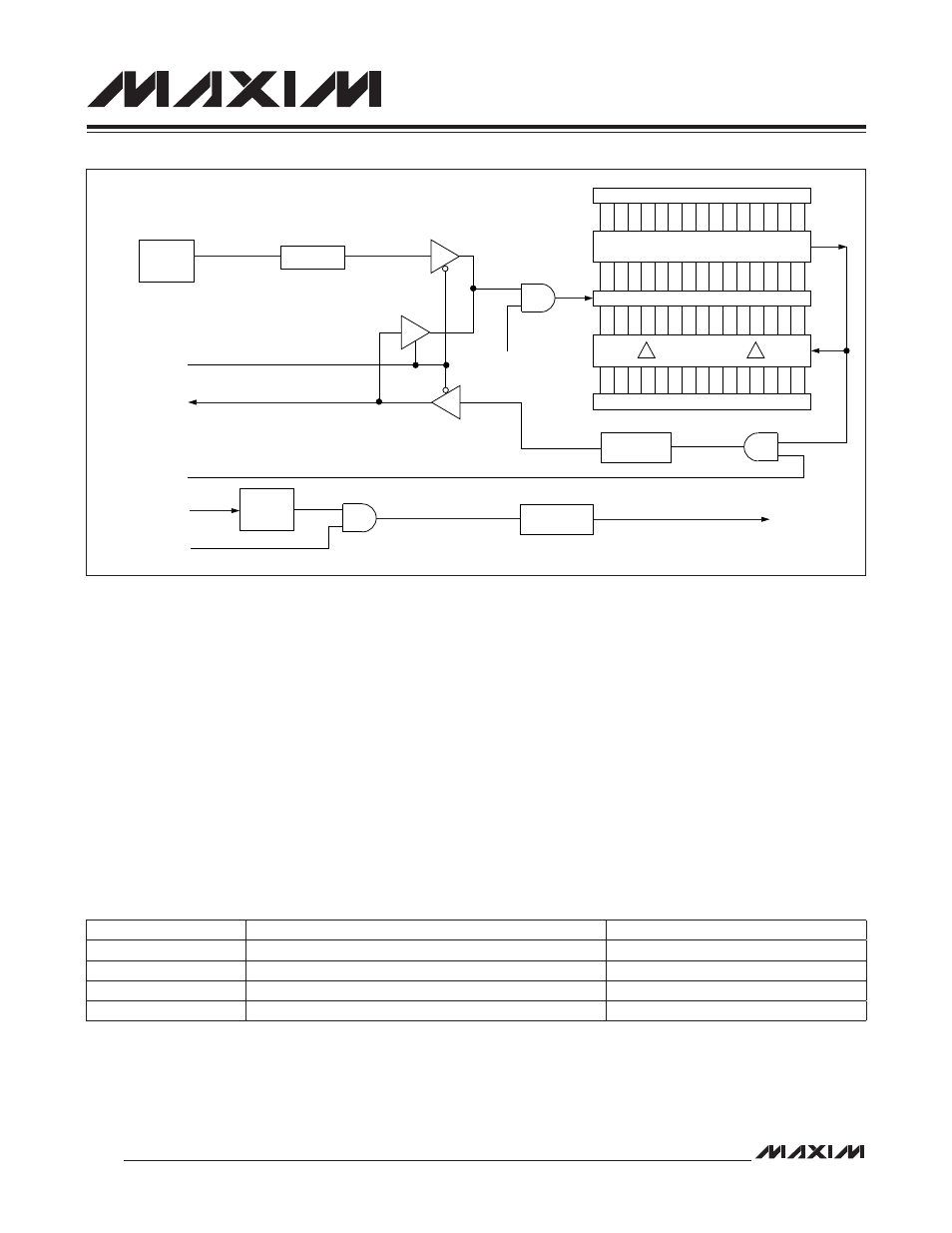

Figure 21-4. Timer B Clock Output Mode Block Diagram

Table 21-4. Timer B PWM/Output Control Function

15

0

TBnR

TBnV

0000h

SYSTEM

CLOCK

TBA PIN

TBA PIN

TRB = TBnCN.2

/CLK

C/TB = TBnCN.15 = 0

DIVIDE BY 2

FALLING

EDGE

TBB PIN

TIMER INTERRUPT

EXENB = TBnCN.3

COMPARE

0

15

EXFB = TBnCN.6

TBPS[2:0] = TBnCN[10:8]

2

(2 x TBPS[2:0])

TBCS:TBCR

FUNCTION

INITIAL STATE (IF TRB = 0)

00

None (Disabled)

No change

01

Reset on TBnC Match, Set on 0000h

Low

10

Set on TBnC Match, Reset on TBnR Match

High

11

Toggle on TBnC Match

No change
