MAXQ Family User’s Guide:
MAXQ2010 Supplement
20-9
20.8 LCD Frame Frequency
The LCD controller clock frequency (f
LCD
) can be sourced from either the 32kHz clock or the high-frequency clock
divided by 128 as specified by the LCCS bit. If stop mode is entered and the 32kHz clock is being used, LCD display
operation continues (if DPE = 1, OPM = 1, and SMO = 1). If stop mode is entered and the high-frequency clock divided
by 128 is being used, the LCD controller is suspended automatically until stop mode is exited and the high-frequency
clock completes its warmup period.
The bits FRM[3:0] control the generation of the LCD frame frequency from the selected LCD clock source (32kHz or
HFClk/128). The selected frame frequency (f
FRAME ) is defined as follows:
For 1/3 duty: f FRAME = f LCD /((FRM[3:0]) + 1) x 96)
For static, 1/2 and 1/4 duty: f FRAME = f LCD /((FRM[3:0]) + 1) x 64)
For best LCD drive performance, the frame frequency should typically be between 30Hz and 128Hz. Table 20-2 shows
example frequencies that can be generated from typical clock frequencies.

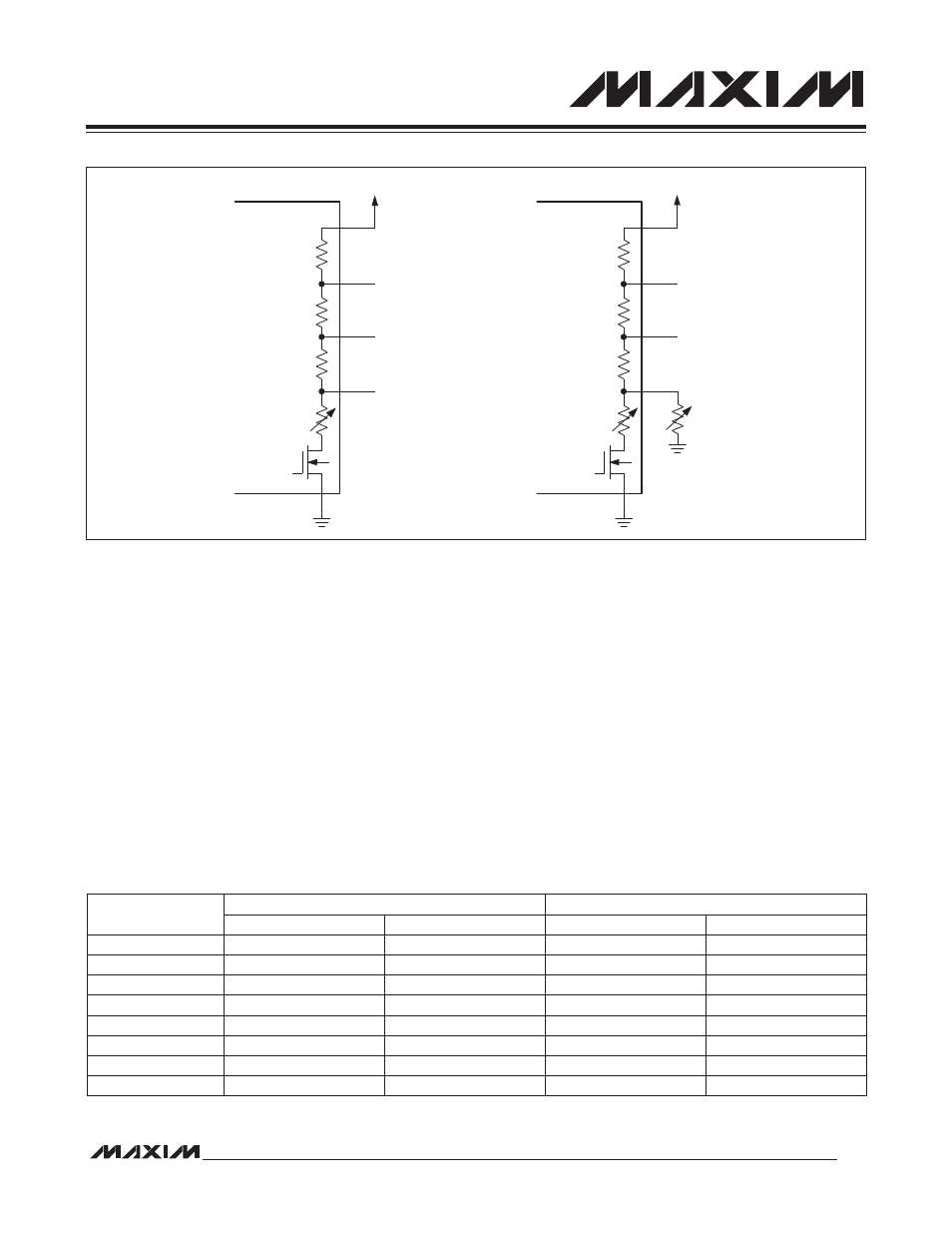

Figure 20-3. LCD Internal and External Display Contrast Adjustment
Table 20-2. Approximate LCD Frame Frequencies (Hz)
STATIC DISPLAY
R
R
V LCD2
V ADJ
R
V LCD
V
LCD1
R ADJ
DGND
LRIG = 1
STATIC DISPLAY
R
R
V LCD2
V ADJ
R
V LCD
V
LCD1
R ADJ
DGND
LRIG = 0
R EXT
FRM[3:0]
f LCD = 32,768Hz/2 f LCD = 19,531Hz (10MHz/512)
1, 1/2, 1/4 1/3 1, 1/2, 1/4 1/3
0 256 171 305 204
1 128 85 153 102
2 85 57 102 68
3 64 43 76 51
4 51 34 61 41
5 43 29 51 34
6 37 25 44 29
7 32 22 38 26
