4-47
Chapter 4 Function Settings
4
3

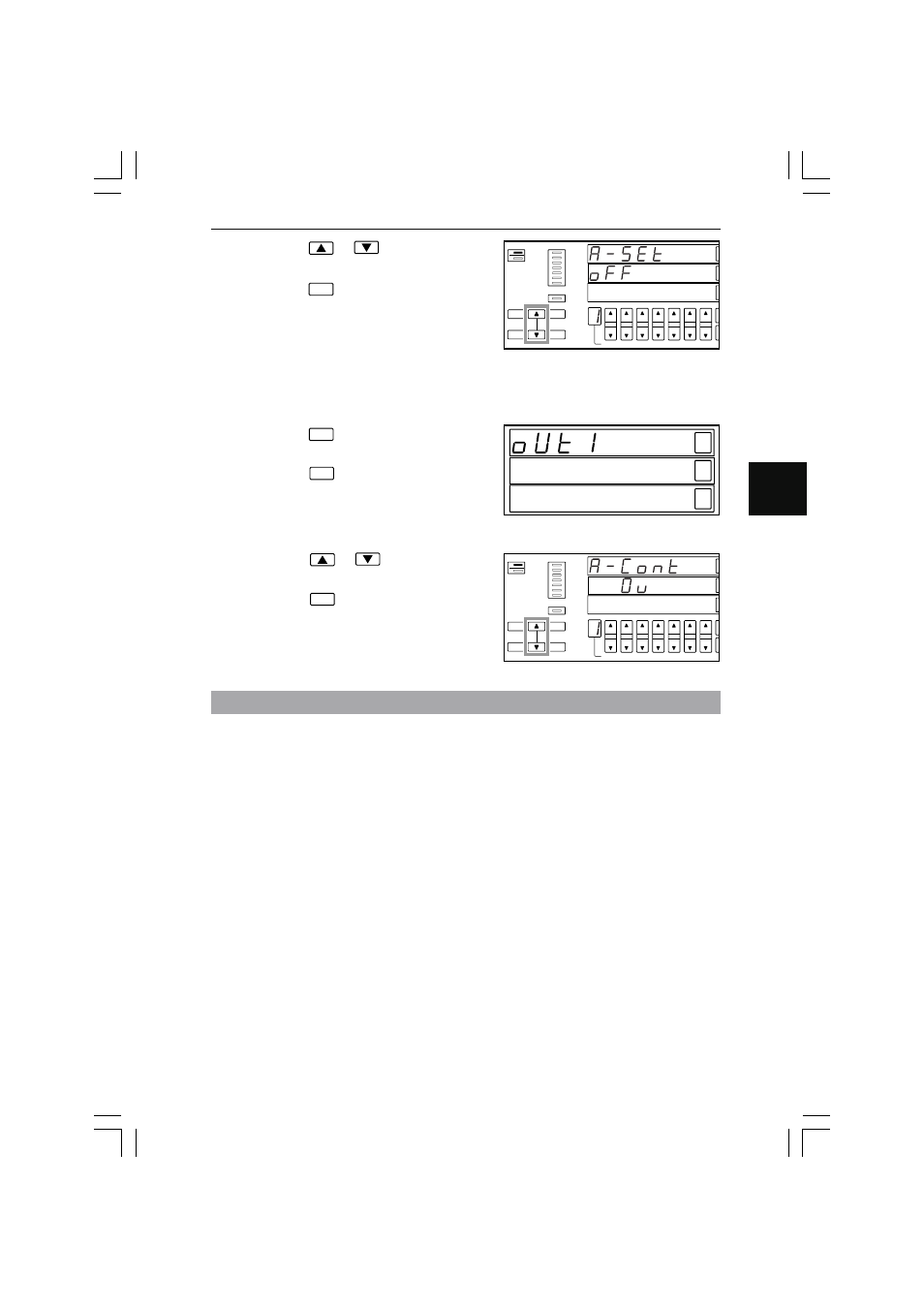

Press the
or
key and set the
analog update mode.
4
Press the
ENT
key.
The input item is entered and the output
setting display appears again.
■ Output Waiting Voltage
Take the following steps to set the voltage to be output when the display shows
“- - - - - - - -.”
3
Press the
or
key and set the
voltage.
4
Press the
ENT
key.
The input item is entered and the output
setting display appears again.
Comparator Output Setting
Adjust the comparator output settings.
Setting Range
The following comparator output settings are available.
• Strobe output time: Select the ON-time of the strobe output (i.e., one-shot output
time) from 0.4, 0.8, 1.6, 3.3, 6.6, 13.3, and 26.6 ms.
• Output logic:
Set the logic of the comparator output and WAITING output to NO
(normally open) or NC (normally closed).
• OFF-delay time:
Select the OFF-delay time of the comparator output from 0.0, 0.4,
0.8, 1.6, 3.3, 6.6, 13.3 and 26.6 ms.
1
Press the
ENT
key when the output
setting is displayed.
2
Press the
FUNC
key six times.
HI
GO
LO
PROG No.
AREA
DISP
ESC
PROG
FUNC
ENT
H
ZE
FOCUS
2
1
A R E A
POSITION
G
L
PROG No.
AREA
DISP
ESC
PROG
FUNC
ENT
H
ZE
FOCUS
2
1
A R E A
POSITION
G
L
