9-6
Chapter 9 Troubleshooting
9
Error Messages
The following section explains error messages that will be displayed if the LS-7000 Series
has errors while in operation.
Display Description Remedy
Measuring head error
This error message will be displayed
if the connector to the measuring
head is changed, the measuring
head is not connected correctly, or
there is a failure in the measuring
head or connection cable.
Check the wiring of the connection cable. Refer
to the item ERROR-0 in this manual. If the
problem is not solved, contact your KEYENCE
representative.
Press the ESC key and reset the error status.
Then make the right calibration setting.
Calibration setting error
Press the ESC key and reset the error status.
Then make the right setting.
SEG setting error
Press the ESC key and reset the error status.
Then make the right setting.
Area check setting error
Press the ESC key and reset the error status.
Then make the right setting.
Analog setting error
Press the ESC key and reset the error status.
Then make the right setting.
Tolerance setting error
Press the ESC key and reset the error status.
Then make the right setting. Hold value elimination setting
error
Error-0
Error-1
Error-2
Error-3
Error-4
Error-5
Error-6
❈ If the error message appearing on the monitor is other than the above ones, contact
your KEYENCE representative.
■ ERROR-0
If the connector to the measuring head is changed or Error-0 is displayed for one
measuring head while two measuring heads are in use, change the measuring head
number. Then the measurement operation of the LS-7000 Series will be continued.
TIM
LO
GO
HI
OUT 2
OUT 1
FOCUS
2
1
A R E A POSITION
HI
GO
LO
A possible setting change
is displayed.
A possible destination
change is displayed.
Resetting Error Status

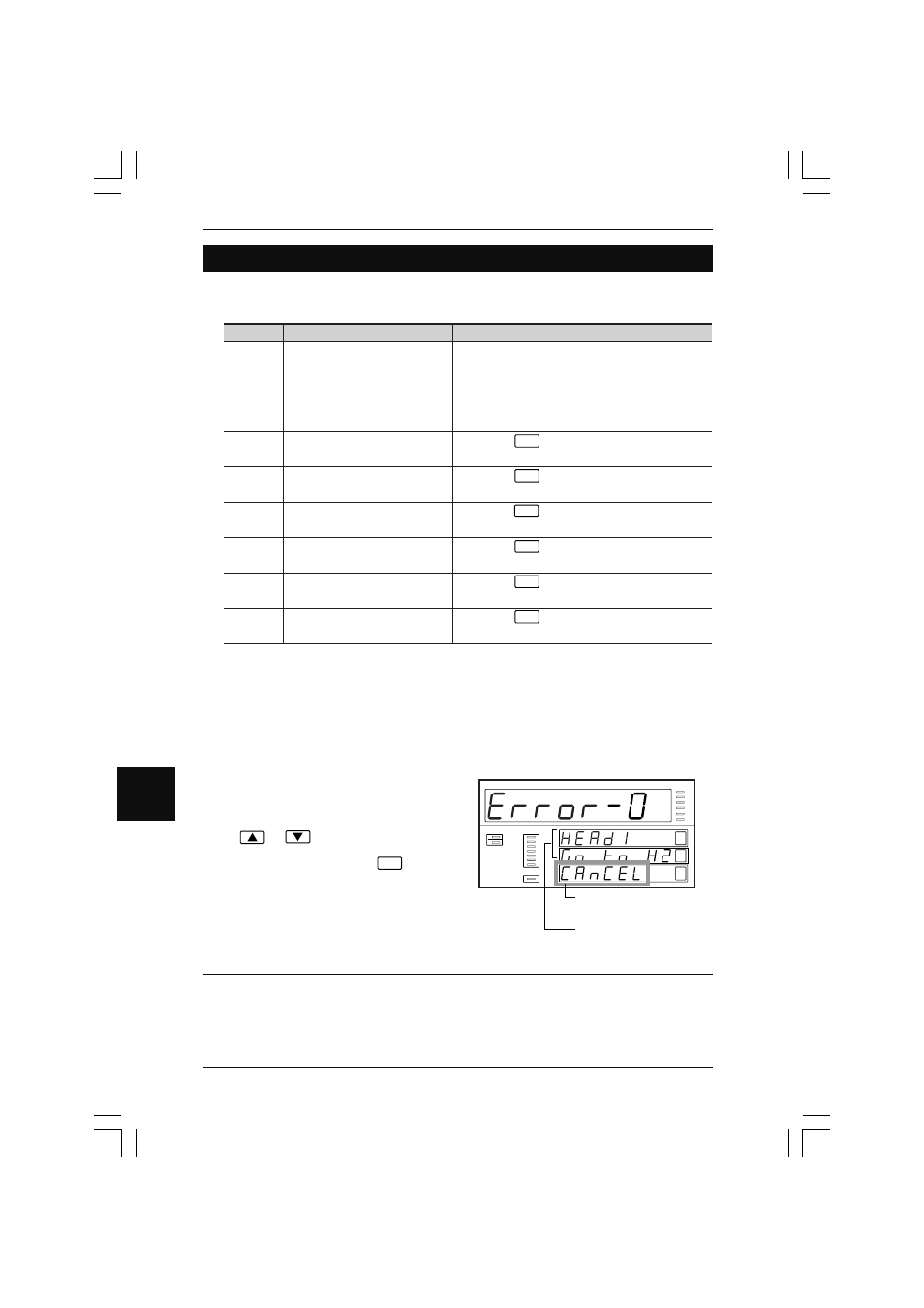

The Error-0 is displayed as shown in the
illustration.
1
To make a setting change, Press the
or key and select “Yes”.
2
Continue pressing the
ENT
key for 2
seconds.
The error status is reset and the LS-
7000 Series will return to measurement
mode.
Note: • Only the measuring head number used for the area setting in the program
number in use will be changed. The Error-0 message may be displayed if
the program number is changed. In that case, take the same steps to clear
the message.
• To change the setting, check that the setting change will not cause prob-
lems. Then reset the error status.
