4-48

Chapter 4 Function Settings

4

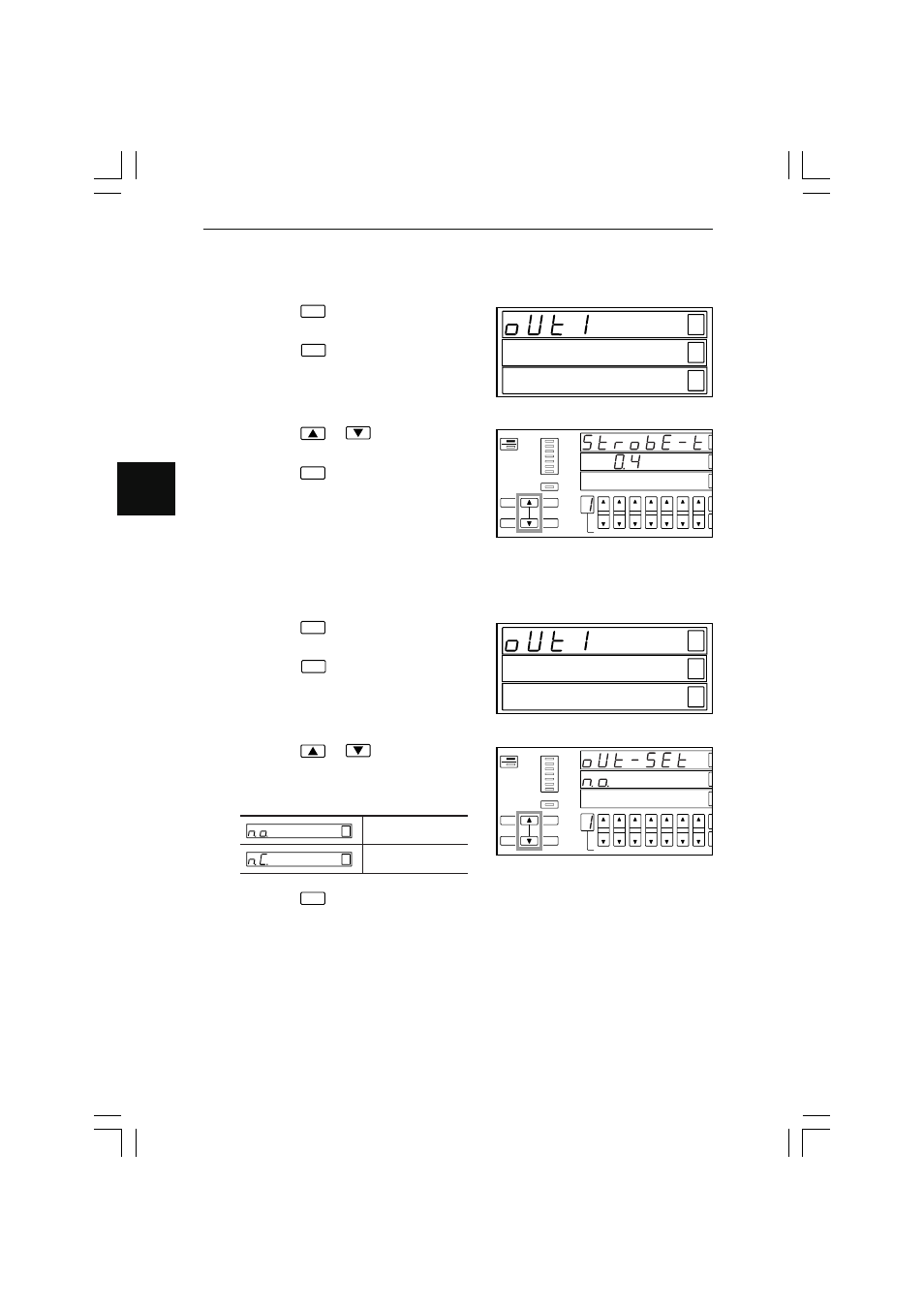

Strobe Output Time

Take the following steps to set the ON-time of strobe output.

1

Press the

ENT

key when the output

setting is displayed.

2

Press the

FUNC

key seven times.

HI

GO

LO

3

Press the

or

key and set the

output time.

4

Press the

ENT

key.

The input item is entered and the output
setting display appears again.

PROG No.

PRINT

AREA

DISP

ESC

PROG

FUNC

ENT

H

ZE

FOCUS

2

1

A R E A

POSITION

G

L

Output Logic

The logic of comparator output and WAITING output can be set to NO (normally open)
or NC (normally closed).

1

Press the

ENT

key when the output

setting is displayed.

2

Press the

FUNC

key eight times.

HI

GO

LO

3

Press the

or

key and set

the output logic.
The following displayed items can be
selected.

N.O.
(Normally open)

N.C.
(Normally closed)

GO

GO

PROG No.

PRINT

AREA

DISP

ESC

PROG

FUNC

ENT

H

ZE

FOCUS

2

1

A R E A

POSITION

G

L

4

Press the

ENT

key.

The input item is entered and the output setting display appears again.
