Chapter 4 Function Settings
4

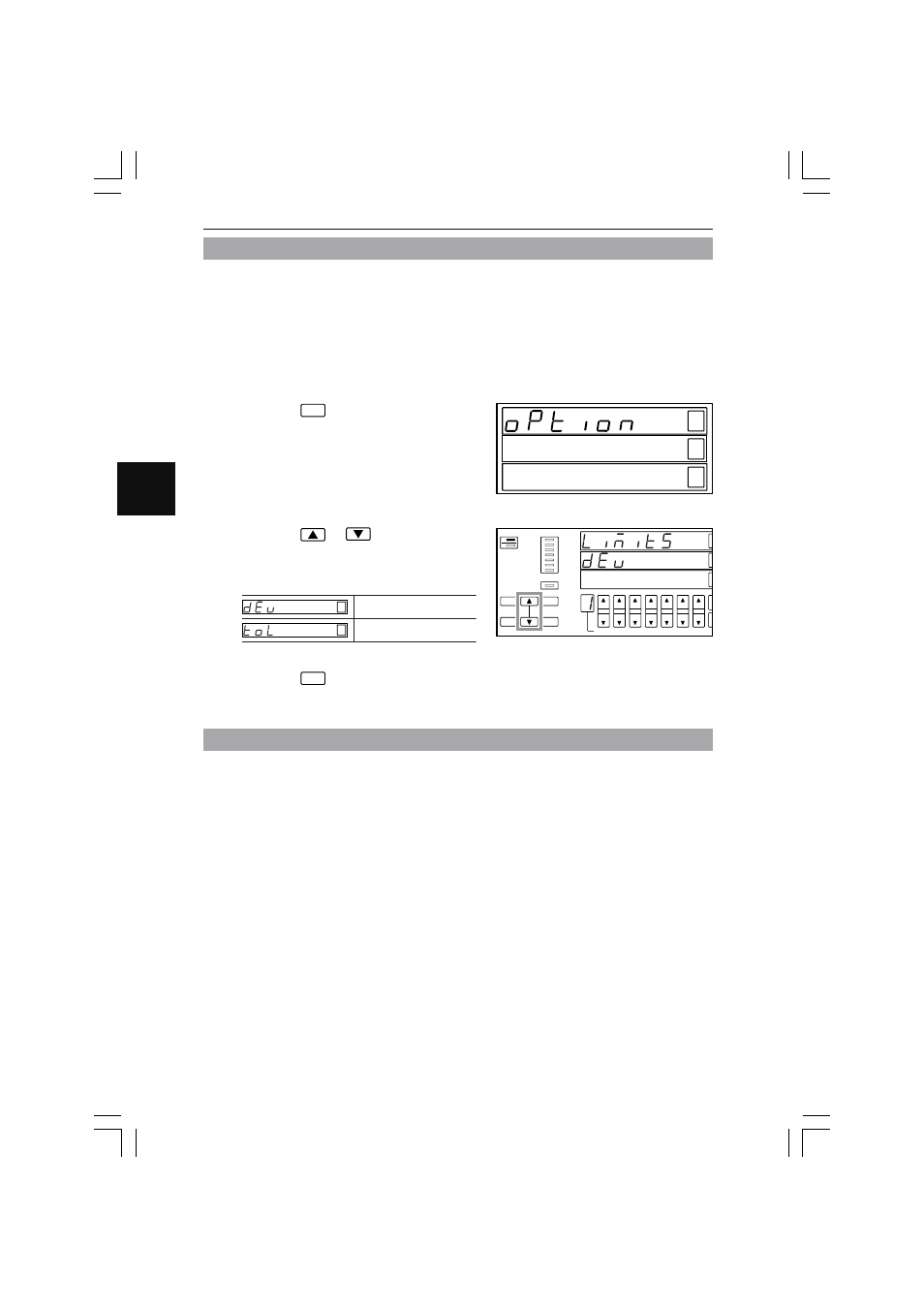

Tolerance Mode (LIMITS)
Take the following steps to select the appropriate tolerance mode.
Setting Range
The following modes are selectable.
• Reference value mode: Use this mode if there is a workpiece size change with the
deviations (tolerances) unchanged.
• Threshold mode: Specify the upper and lower limits in absolute values.
1
Press the
ENT
key when the option
setting is displayed.
2
Press the or key and set the
tolerance mode.
The following displayed items can be
selected.
Reference value mode
Threshold mode
GO
GO
HI
GO
LO
3
Press the
ENT
key.
The input item is entered and the option setting display appears again.
PROG No.
PRINT
AREA DISP
ESC PROG
FUNC ENT
H
ZE
FOCUS
2
1
A R E A POSITION
G
L
Timing Mode
Take the following steps to set the synchronous (timing) input terminals corresponding to
OUT1 and OUT2 respectively.
Setting Range
Select the input terminals from the following ones.
• Asynchronous mode (ASYNC): The LS-7000 Series is in asynchronous control of
OUT1 and OUT2. Select the input terminals inde-
pendently for OUT1 and OUT2 respectively. Terminal
number 13 corresponds to OUT1 and connector I/O
number 38 corresponds to OUT2.
• Synchronous mode (SYNC): The LS-7000 Series is in synchronous control of
OUT1 and OUT2. Terminal number 13 corresponds
to them. Connector I/O number 38 is disabled.
Refer to Section 6 I/O Terminals on page 6-1 for details.
