4-31
Chapter 4 Function Settings
4
2

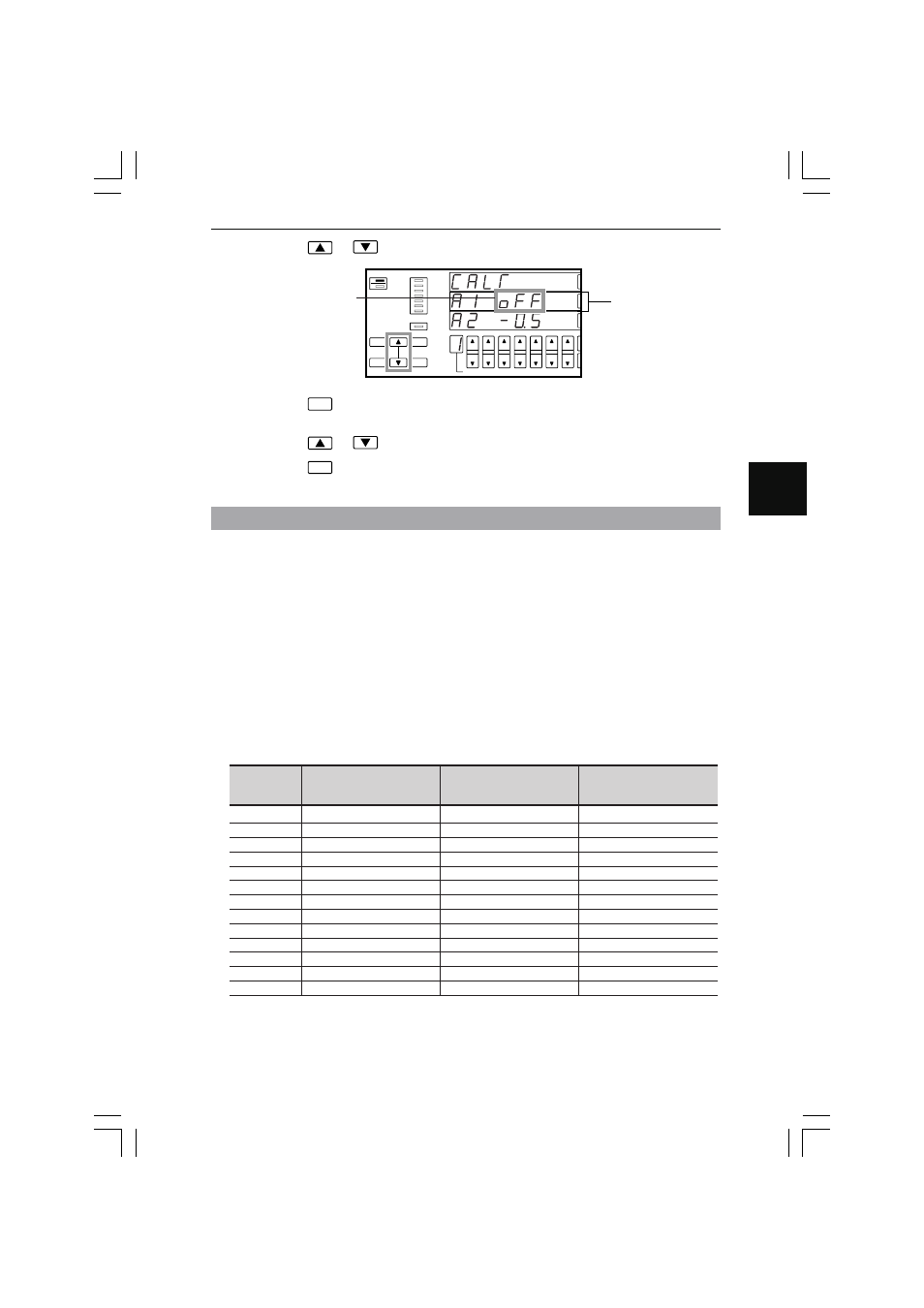

Press the or key and set the coefficient for AREA1.
PROG No.
PRINT
AREA DISP
ESC PROG
FUNC ENT
H
ZE
FOCUS
2
1
A R E A POSITION
G
L
AREA1 setting
The setting part flashes.
3
Press the
ENT
key.
The input value is entered and the AREA2 value flashes.
4
Press the or key and set the coefficient for AREA2.
5
Press the
ENT
key.
The input item is entered and the output setting display appears again.
Number of Averaging Measurements
Take the following procedure to determine the number of times to average measured
values.
Setting Range
Select the number of averaging measurements from the following.
1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, and 4096
If you want to average the fluctuation of measured values and obtain stable results,
select a comparatively large number. For high-speed measurement, the number se-
lected should be comparatively small.
■ Averaging Time and Refresh Cycle
The LS-7000 Series averages measured values in a moving averaging method, thus
making it possible to output the measured values within a short time.
The following table lists the averaging time, the number of moving averaging data items,
and the refresh cycle of a target according to the number of averaging measurements.
Number of
averaging
measurements
Averaging time (ms)
Number of moving
data samples
Refresh cycle (ms)
1 0.42 1 0.42
2 0.83 2 0.83
4 1.67 2 0.83
8 3.33 2 0.83
16 6.67 2 0.83
32 13.33 2 0.83
64 26.67 2 0.83
128 53.33 2 0.83
256 106.67 4 1.67
512 213.33 8 3.33
1024 426.67 16 6.67
2048 853.33 32 13.33
4096 1706.67 64 26.67
❈Measurement averaging time does not indicate the measuring response time of the
LS-7000 Series. Refer to Measuring Response Time on page 8-6 for details.
