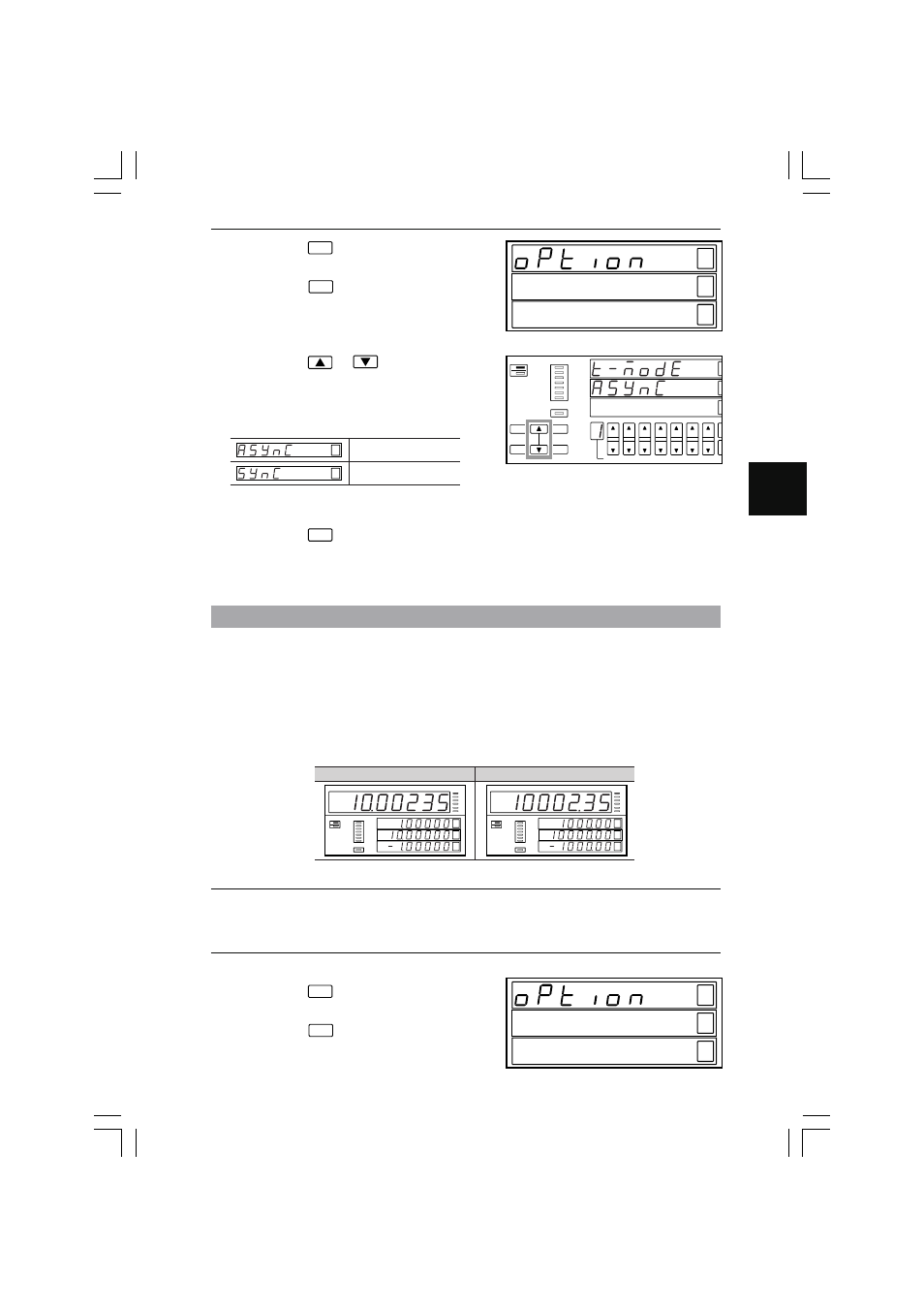

KEYENCE LS-7000 - Manual (Page 109)

4-57
Chapter 4 Function Settings
4
1
Press the
ENT
key when the option
setting is displayed.
2
Press the
FUNC
key.
3
Press the or key and set the
timing input.
The following displayed items can be
selected.
Asynchronous mode
Synchronous mode
GO
GO
HI
GO
LO
PROG No.
PRINT
AREA DISP
ESC PROG
FUNC ENT
H
ZE
FOCUS
2
1
A R E A POSITION
G
L
4
Press the
ENT
key.
The input item is entered and the option setting display appears again.
Display Unit
The display unit of measured values can be changed.
Select the display unit from the following.
• UNIT 1: Displayed in millimeters.
• UNIT 2: Displayed in micrometers.
• UNIT 3: Displayed in inches.
• UNIT 4: Displayed in mils (0.001 inch = 1 mil).
The displayed decimal position changes as shown below with the display unit changed.
mm μm
TIM LO
GO
HI OUT 2
OUT 1
FOCUS
2 1
A R E A POSITION
HI
GO
LO
TIM LO
GO
HI OUT 2
OUT 1
FOCUS
2 1
A R E A POSITION
HI
GO
LO
Note: When the display unit is changed, all set values will be reset to default values
(e.g., output set values and tolerance set values). Refer to page 4-60 for
default values in millimeters and micrometers and available value setting
ranges.
1
Press the
ENT
key when the option
setting is displayed.
2
Press the
FUNC
key twice.
HI
GO
LO
