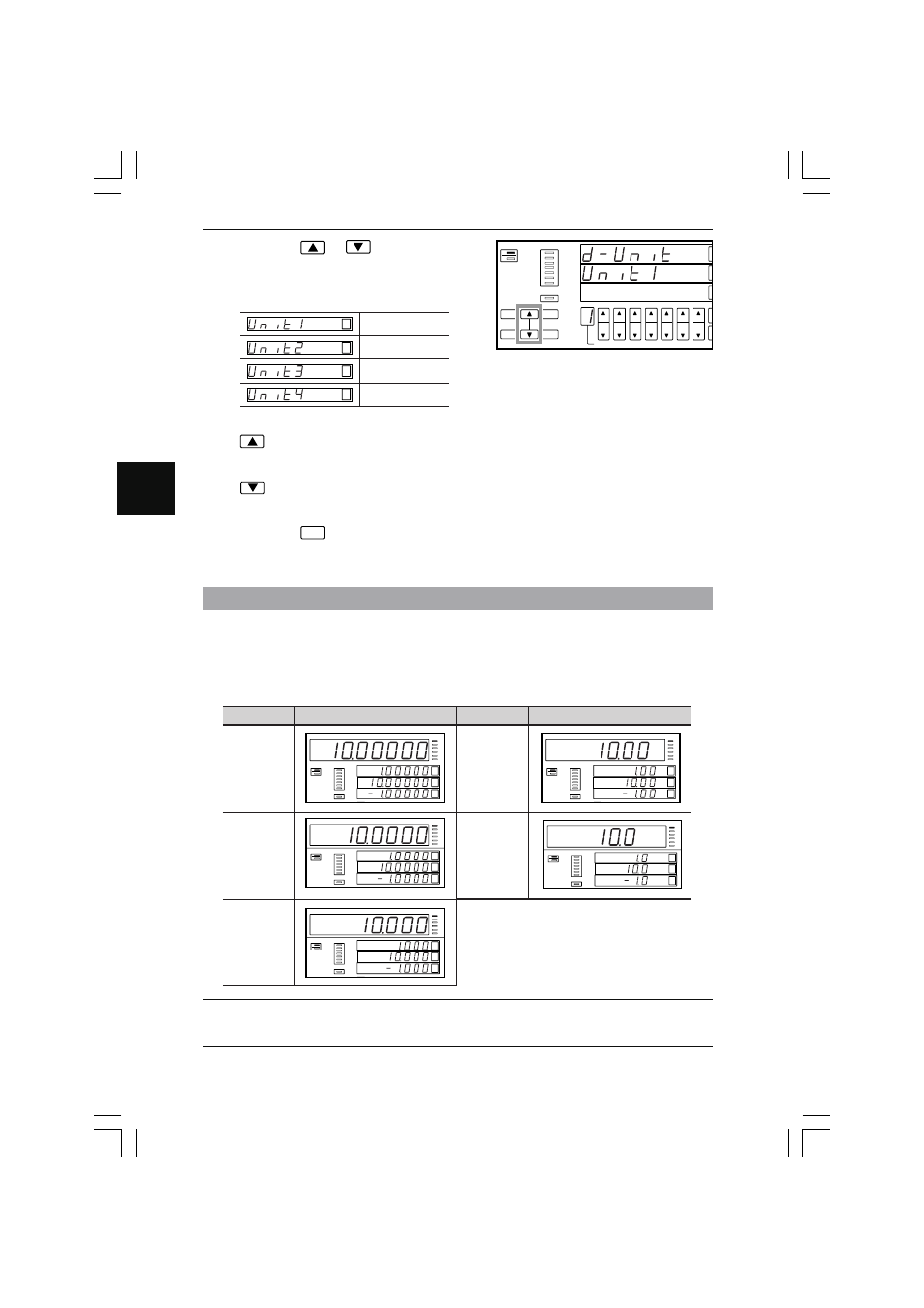

4-58
Chapter 4 Function Settings
4
3
Press the or key and set the
display unit.
The following displayed items can be
selected.
mm
μm
GO
GO
inch
mil
GO
GO
To change the unit to UNIT3, press the
key for 2 seconds when the UNIT2
is displayed.
To change the unit to UNIT2, press the
key for 2 seconds when the UNIT3
is displayed.
4
Press the
ENT
key.
The input item is entered and the option setting display appears again.
PROG No.
PRINT
AREA DISP
ESC PROG
FUNC ENT
H
ZE
FOCUS
2
1
A R E A POSITION
G
L
Minimum Display Unit
The minimum display unit of measured values can be changed.
Setting Range
Select the minimum display unit from the following. When the minimum display unit is
switched, the display changes together with the decimal position as shown below. A
μm
display unit is changed in the same way.
0.00001
0.00002
0.00005
Minimum display unit Display Minimum display unit Display
0.001
0.01
0.1
TIM LO
GO
HI OUT 2
OUT 1
FOCUS
2
1 A R E A POSITION
HI
GO
LO
TIM LO
GO
HI OUT 2
OUT 1
FOCUS
2 1 A R E A POSITION
HI
GO
LO
0.0001
0.0002
TIM
LO
GO HI
OUT 2
OUT 1
FOCUS
2
1 A R E A POSITION
HI
GO
LO
TIM LO
GO
HI OUT 2
OUT 1
FOCUS
2
1 A R E A POSITION
HI
GO
LO
TIM
LO
GO HI
OUT 2 OUT 1
FOCUS
2 1 A R E A POSITION
HI
GO
LO
Note: When the minimum display unit is changed, all set values will be reset to
default values (e.g., output set values and tolerance set values). Refer to
page 4-60 for default values and available value setting ranges.
