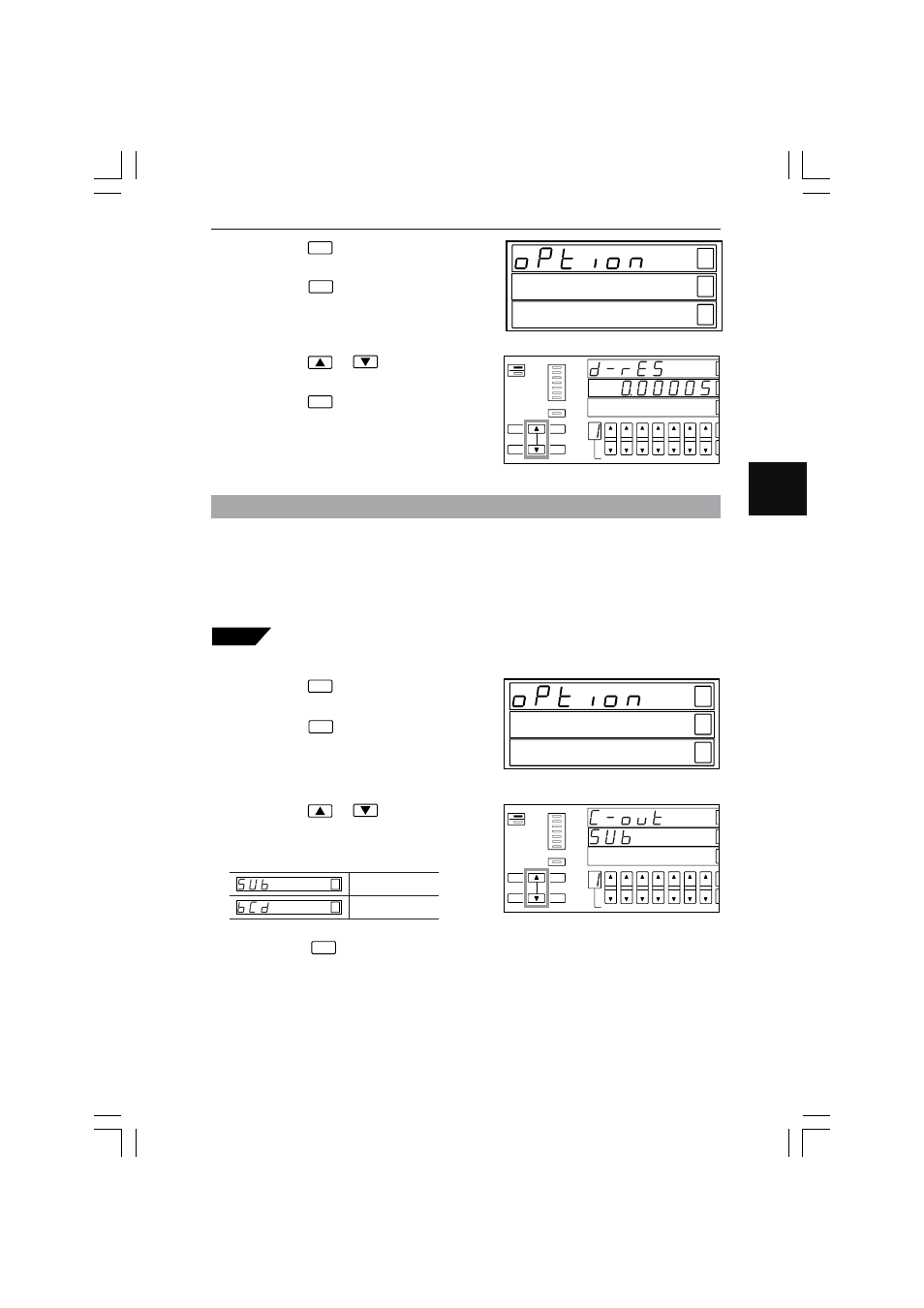

4-59
Chapter 4 Function Settings
4
1
Press the
ENT
key when the option
setting is displayed.
2
Press the
FUNC
key three times.
HI
GO
LO
3
Press the or key and set the
display unit.
4
Press the
ENT
key.
The input item is entered and the option
setting display appears again.
PROG No.
PRINT
AREA DISP
ESC PROG
FUNC ENT
H
ZE
FOCUS
2
1
A R E A POSITION
G
L
I/O Mode
The mode of the I/O connector on the rear panel of the controller can be changed.
Setting Range
Select the connector mode from the following.
• SUB: Output 2 I/O.
• BCD: BCD output.
Tips For the operation of the connectors in each mode, refer to Connector I/O on
page 6-4.
1
Press the
ENT
key when the option
setting is displayed.
2
Press the
FUNC
key four times.
HI
GO
LO
PROG No.
PRINT
AREA DISP
ESC PROG
FUNC ENT
H
ZE
FOCUS
2
1
A R E A POSITION
G
L
3
Press the or key and set the
mode.
The following displayed items can be
selected.
SUB mode
BCD mode
GO
GO
4
Press the
ENT
key.
The input item is entered and the option setting display appears again.
