4-14
Chapter 4 Function Settings
4
The input value is entered and the value in the next line flashes.
(3) Input the end edge (pitch) number.
4
Press the ENT key.
The input value is entered and the area display appears again.

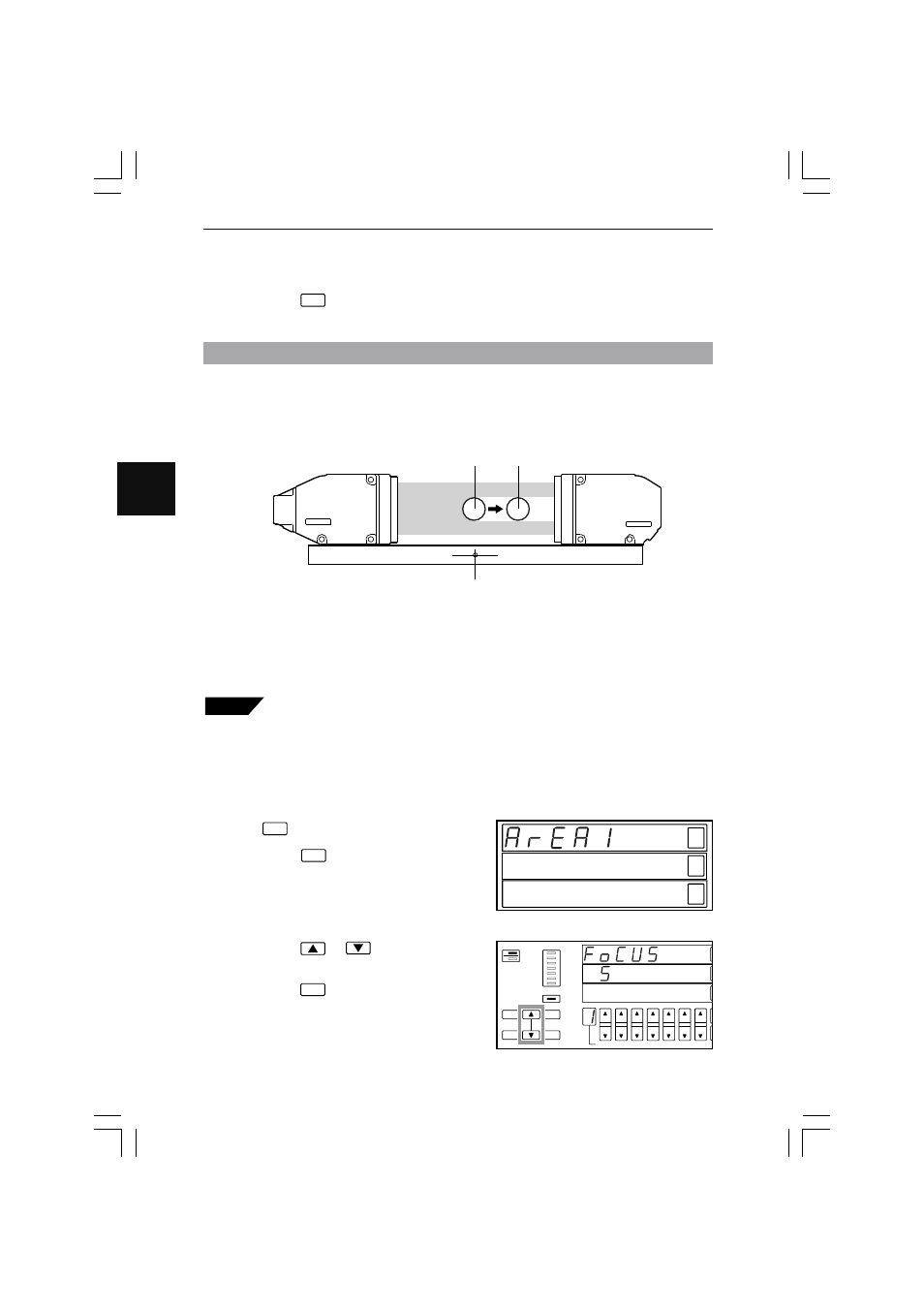

Focus Monitor
The focus monitor is a function that makes it possible to check whether the target is lo-
cated within the range where the highest precision measurement of the target is ensured.
The focus monitor range is the distance between the receiver and target in the measuring
area. When the target is within the range specified, the FOCUS indicator will light.
FOCUS display is lit
The center of the measuring area
Focus display is OFF
Setting Range
The value is set at 10 levels between 0 and 9. Set the value to 0 if the focus monitor
function is not used. Refer to Focus Characteristics on page 8-6 for the set values and
focus range in detail.
Tips The result of focus monitoring can be externally output as function output.
Refer to Selection of Function Output on page 4-17 for details.
■ Setting Method
1
Select the area to be set and press
the ENT key.
2
Press the
FUNC
key.
HI
GO
LO
PROG No.
PRINT
AREA DISP
ESC PROG
FUNC ENT
H
Z
FOCUS
2
1
A R E A POSITION
3
Press the or key and set the
value.
4
Press the
ENT
key after the value is
set.
The input value is entered and the area
display appears again.
