1-8
1
Chapter 1 Getting Started

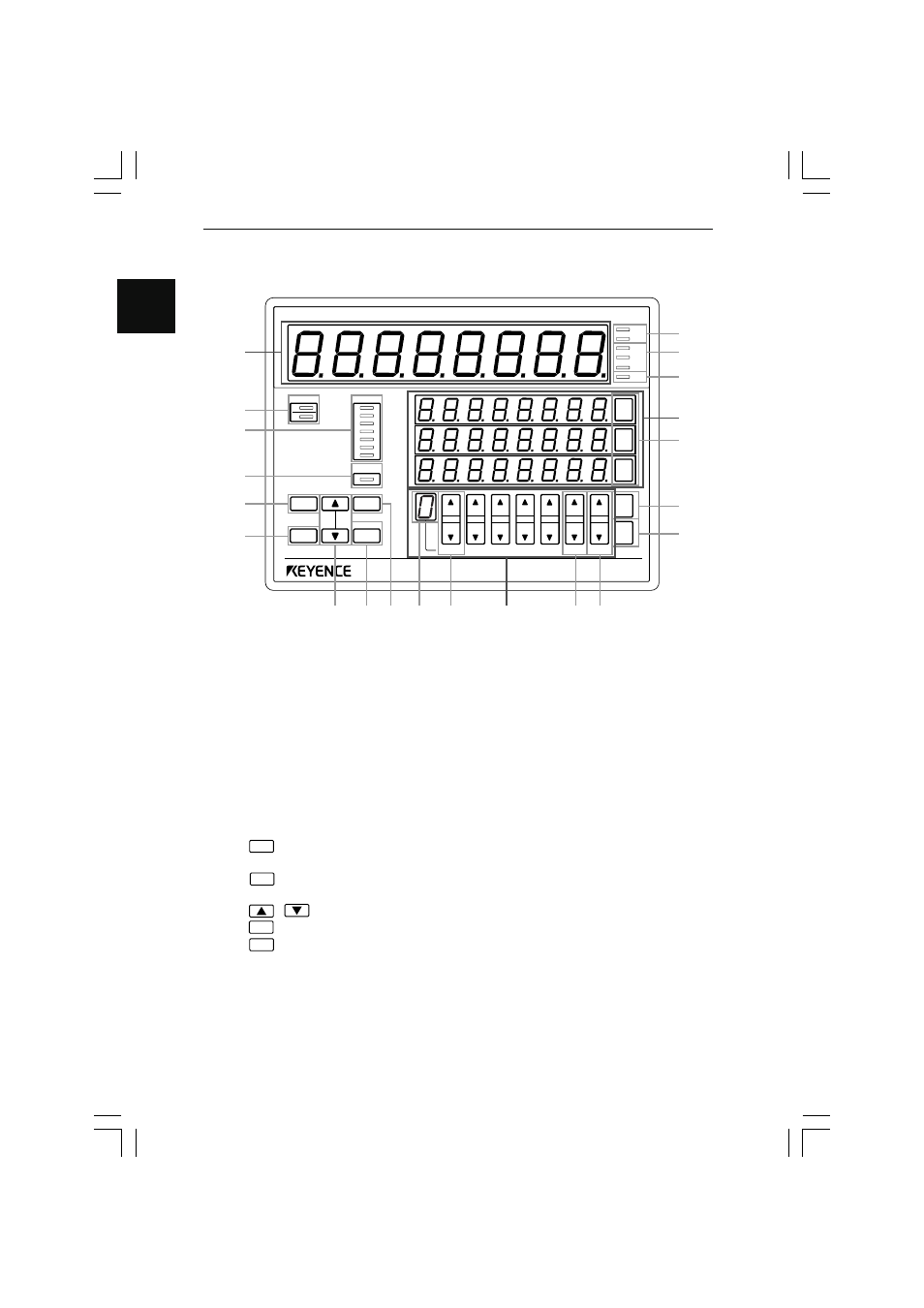

■ Control Panel
TIM
LO
GO
HI
OUT 2
OUT 1
PROG No.
PRINT
AREA DISP
LS-7000
ESC PROG
FUNC ENT
HOLD
ZERO
FOCUS
2
1
A R E A POSITION
HI
GO
LO
(1)
(3)
(4)
(5)
(6)
(7)
(8) (10) (9) (11) (12) (18) (13) (14)
(15)
(16)
(21)
(17)
(2)
(20)
(19)
(1) Main display: The measured value is displayed. Refer to Selection
of Measured Value Display on page 3-2.
(2) Sub display: Used to display tolerance or measured values while
the LS-7000 Series is in measuring operation. The set
value is displayed while in value setting. Refer to
Selection of Measured Value Display on page 3-2.
(3) Area monitor display: The number of the selected area is displayed. Refer
to Area Monitor on page 3-4.
(4) Position display: The position of the target in the selected area is
displayed. Refer to Area Monitor on page 3-4.
(5) Focus display: The focus status of the selected area is displayed.
Refer to Area Monitor on page 3-4.
(6) PROG (Setting) key: Press this key to set program details. Refer to
Program Changes on page 3-8.
(7)
FUNC
(Function) key: Press this key to set the setting item. Refer to Section
4 Function Settings.
(8) / key: Press the Up or Down key to select the set item.
(9)
ESC
key: Press this key to finish the present setting.
(10)
ENT
key: Press this key to enter the set item or print the meas-
ured value from the printers.
(11) Program number display: The selected program number is displayed.
(12) Program selection key: Press this key to select the program number when
measuring. (Page 3-8, Program Change)
(13) Area monitor selection key: Press this key to select the area number when
measuring. (Page 3-4, Area Monitor)
