4-12
Chapter 4 Function Settings
4

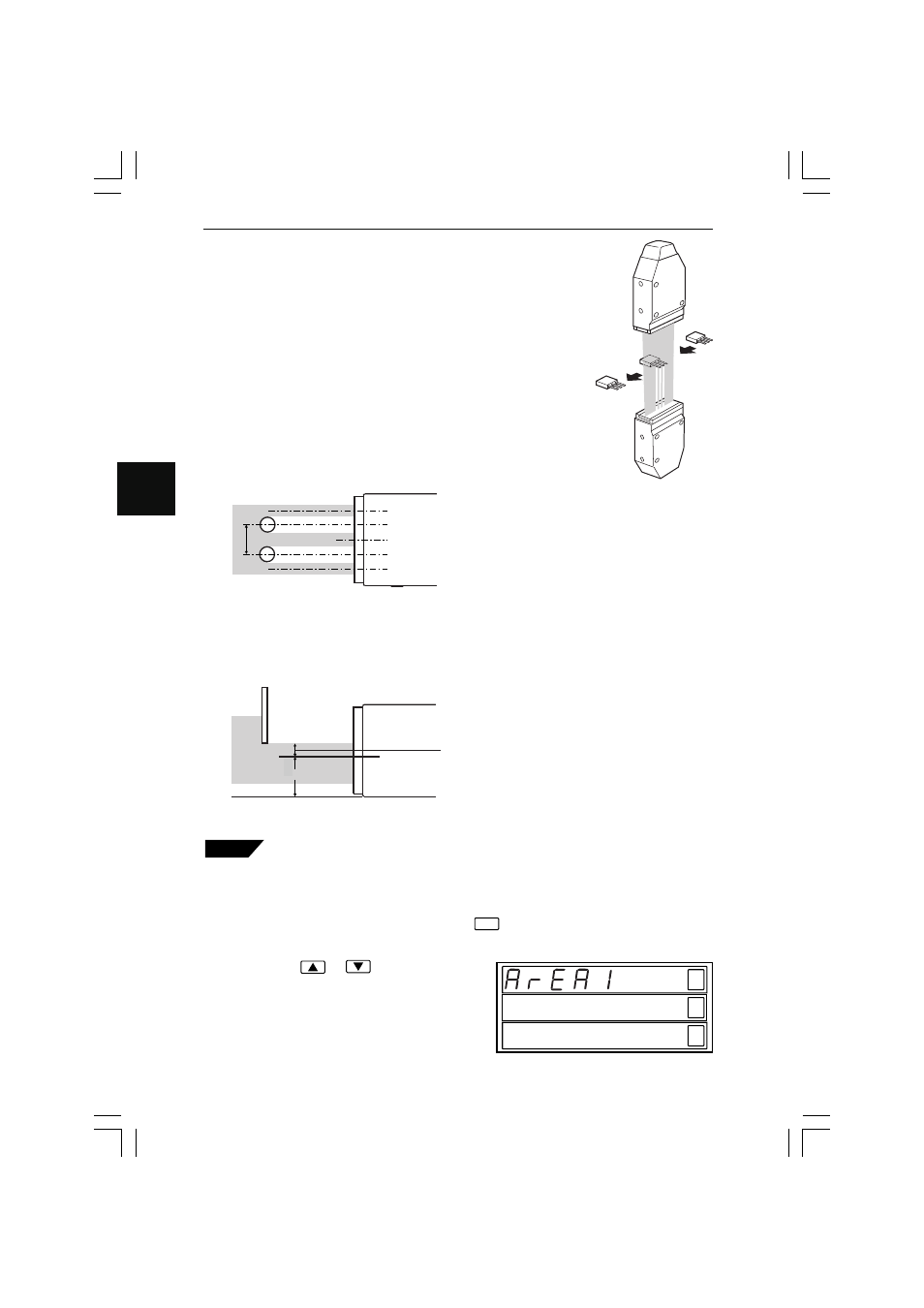

P (Pitch) Mode
The LS-7000 Series measures objects
based on the middle point between the
edges of the objects in this mode.
In this example as shown, five P-mode
edges exist, based on which the LS-7000
measures the center pitch of the target in
the measuring area.
Center pitch: The space between 2P and
4P
Bottom
Top
1E
1P
2P
3P
4P
5P
2E
3E
4E
5E
6E
Target center pitch
Edge 0
Edge 0 refers to a method of measure-
ment, in which the center of the optical
axis is used as an origin. In this case,
set the edge number to 0.
Use this method to position the objects or measure the movement or deviation of
objects.
Bottom
Center of
optical axis
Top
1E
Edge 0
2E
35.5 ± 0.2
Edge position of workpiece
: Space between+1E and 0
(+1E to 0E)
In the edge 0 method, the E and
P modes will not make any difference.
Tips Use edge 0 method if higher repetitive accuracy is required from the measure-
ment of objects.
■ Setting Procedure
1
Select the area to be set and press the
ENT
key.
2
Press the or key and select
the measuring method.
Set the following items that appear on the
LO
HI
GO
LO
