Measurement of movement and positioning – KEYENCE LS-7000 User Manual
Page 43

2-7
2
Chapter 2 Easy Setting Guide

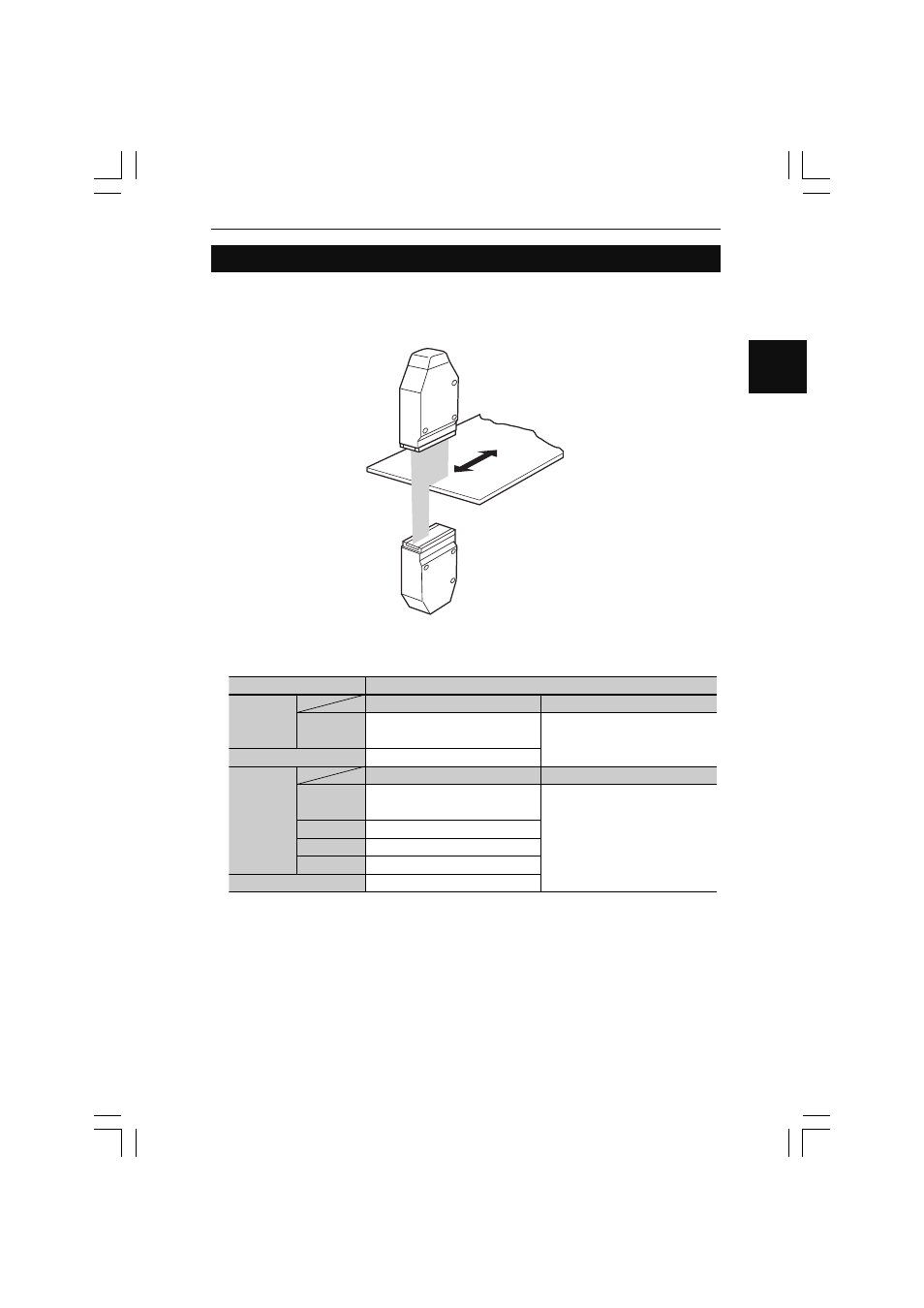

Measurement of Movement and Positioning
In the following example, the movement or position of the workpiece is measured. The
result of output is displayed as OUT1.
■ Set Values
Set item
Calibration
Tolerance setting
Area setting
Output
setting
AREA
Operation
Averaging
Measuring mode
Offset
Set value
AREA 1
Head 1 SEG.
(000-E, 002-E)
Make settings if required.
A1: 1.0
A2: OFF
Select the value according to the line speed
Normal
No settings are required
No settings are required
No settings are required
Set the upper and lower limit values.
AREA 2
OUT 1
OUT 2
■ Reference
Area Settings (Page 4-7)
Calibration Settings (Page 4-20)
Output Settings (Page 4-28)
Tolerance Settings (Page 4-50)
