4-15
Chapter 4 Function Settings
4
TIM
LO
GO
HI
OUT
OUT
FOCUS
2
1
A R E A
POSITION
HI
GO
LO
HI
GO
LO
PROG No.
AREA
DISP
ESC
PROG
FUNC
ENT
H
Z
FOCUS
2
1
A R E A
POSITION

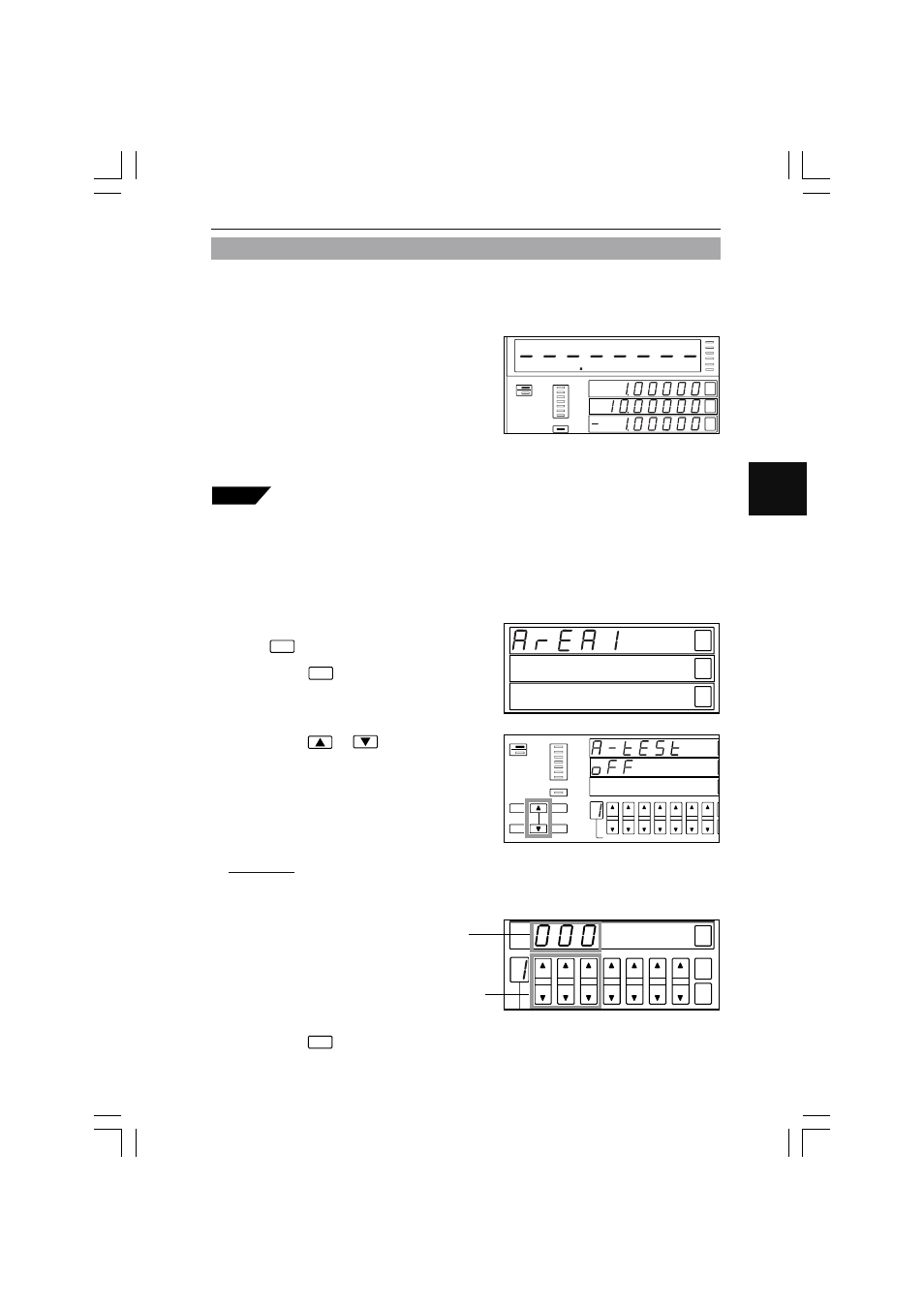

Area Check
Set the total number of edges to be measured. If the number of edges detected does not
coincide with the set value, the measured value will be invalidated.
This function makes it possible to prevent the measurement of abnormal values that may
result if dust or oil is stuck on the measuring head.
The monitor will display the following data if the
measured value is invalidated.
Setting Range
The setting range is between 2 and 127. Set the value to OFF if no area check is made.
Tips
The result of area checking can be external output as function output. Refer to
Selection of Function Output on page 4-17 for details.
■ Setting Method
1
Select the area to be set and press
the
ENT
key.
2
Press the
FUNC
key twice.
3
Press the
or
key and make
ON/OFF settings.
ON Setting
(1) Input the number of edges to be measured.
Press these keys
to set the value.
The setting part
flashes.
PROG No
AREA
DISP
HOLD
ZERO
LO
4
Press the
ENT
key after the value is set.
The input value is entered and the area display appears again.
