4-28
Chapter 4 Function Settings
4
Output Settings
Values measured in AREA1 and AREA2 can be processed in a variety of ways and output
as OUT1 and OUT2 signals. This section provides information on the details and methods
of output settings.
Possible Output Settings
The following output settings are possible.
• Area calculation:
The measured values of two-area points speci-
fied by area settings are used for calculation
processing.
• Number of averaging measurements: Set the number of measuring times.
• Measuring mode:
Measured values are output “as is” or proc-
essed as maximum and minimum timing output
values.
• Offset: An offset value is a desired value that can be
added to or subtracted from measured values.
• Analog output: Analog voltages are output according to the
measured values.
• Comparator output: Set the details of output that turns ON accord-
ing to the judgment results of measured values.

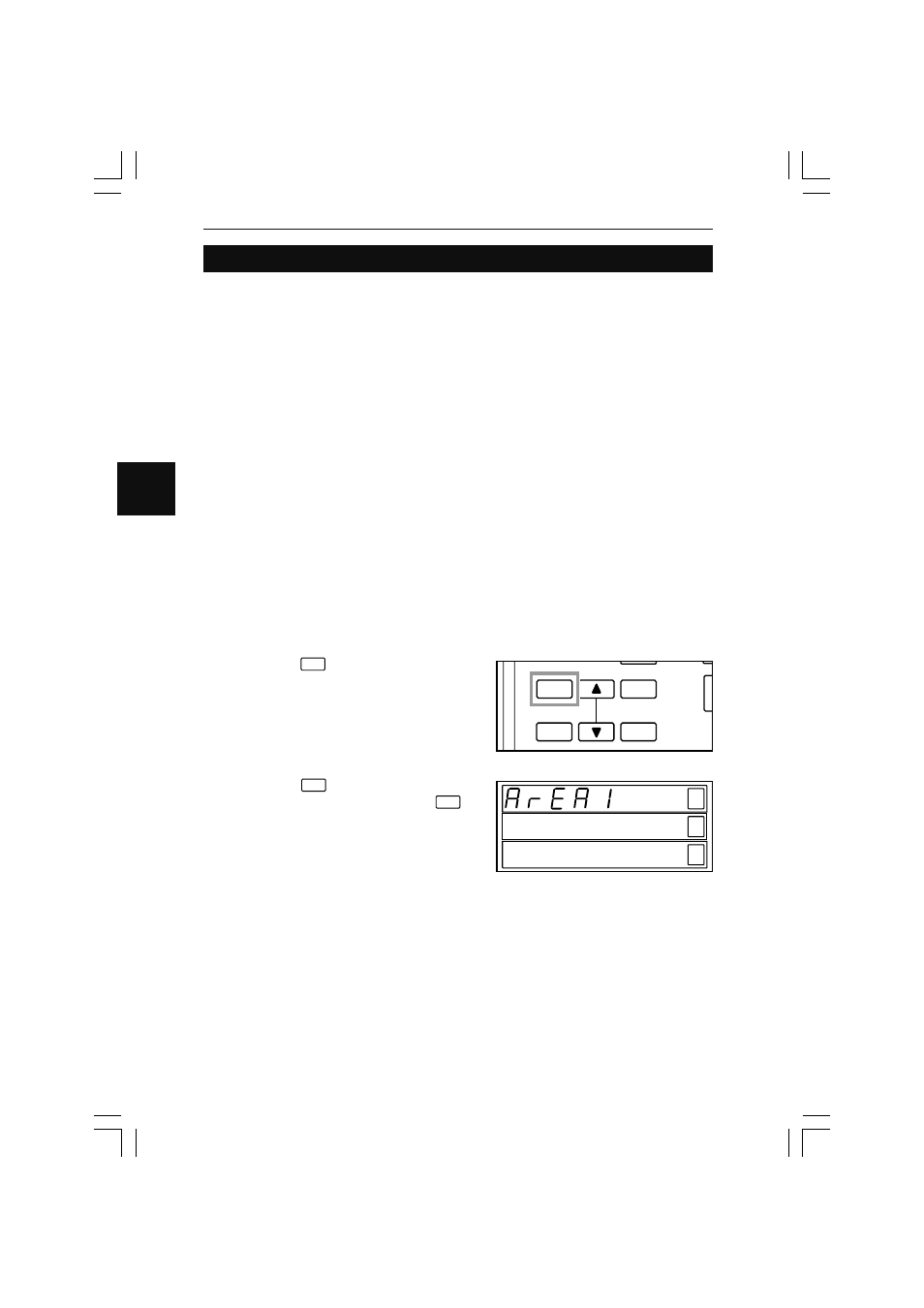

Output Settings
Make output settings while monitoring the sub display.
1
Press the PROG key.
PRINT
ESC PROG
FUNC ENT
HI
GO
LO
2
Press the FUNC key twice.
To make OUT2 settings, press the FUNC
key again.
