3-4
Chapter 3 Operation Control
3

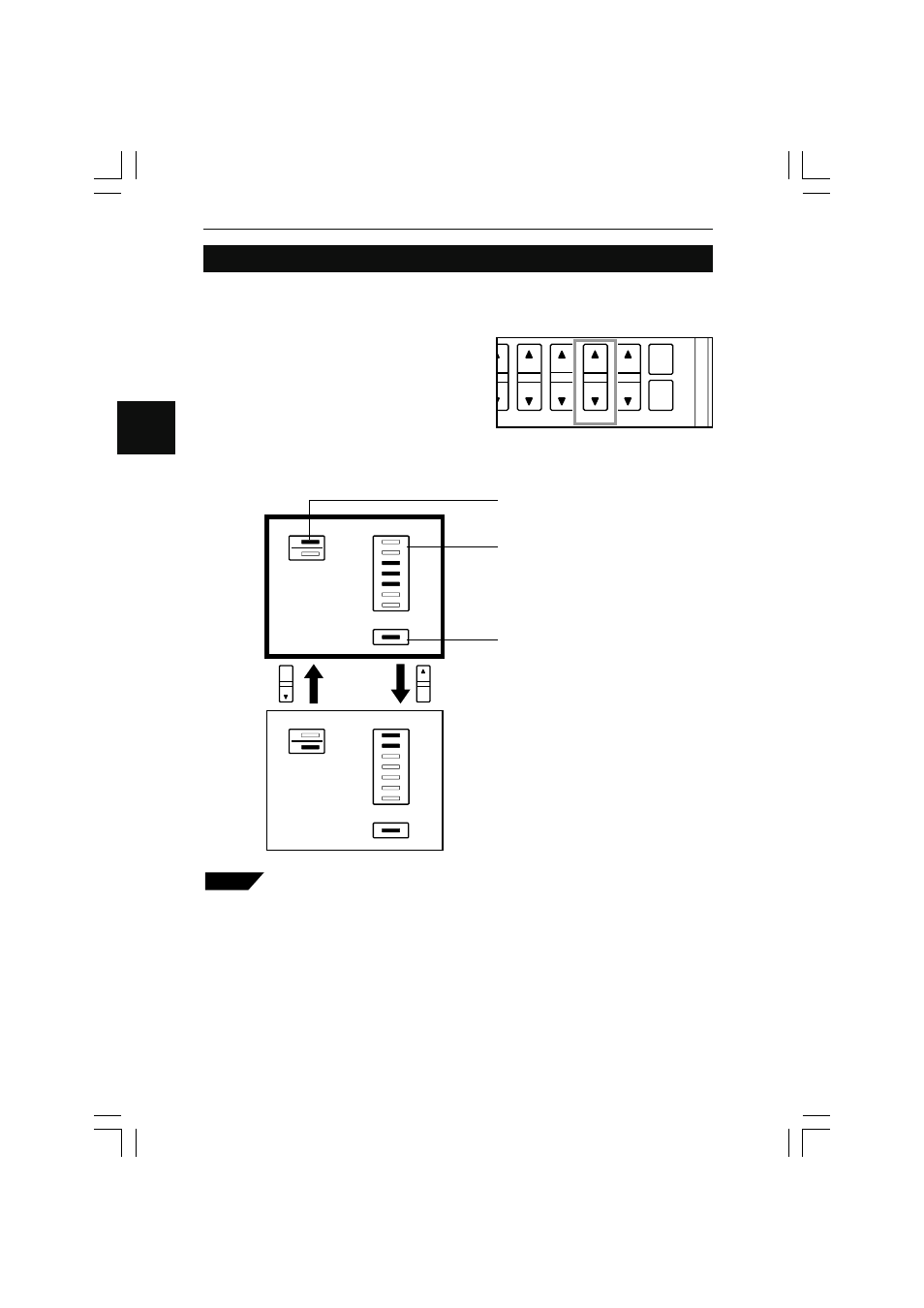

Area Monitor
The area monitor display can be used to confirm the insertion positions of the targets in
AREA1 or AREA2 to be selected.
Press the AREA key on the control panel
and select the area.
The following items will be displayed when
the area is selected.
AREA DISP
HOLD
ZERO
FOCUS
2
1
A R E A POSITION
FOCUS
2
1
A R E A POSITION
AREA AREA
The selected area number is lit.
FOCUS monitor
The FOCUS monitor is lit according
to the distance between the
receiver and target.
POSITION Monitor
The POSITION monitor is lit
according to the position and size of
the target in the CCD scanning
range.
Tips The displayed settings are saved in the program settings.
