4-30
Chapter 4 Function Settings
4
Area Calculation
The measured values from the two memory areas are used for calculation processing.
Setting Range
Select the coefficient from the following.
OFF (No coefficient will be multiplied and the value will be 0), 1.0, 0.5, -1.0, or -0.5

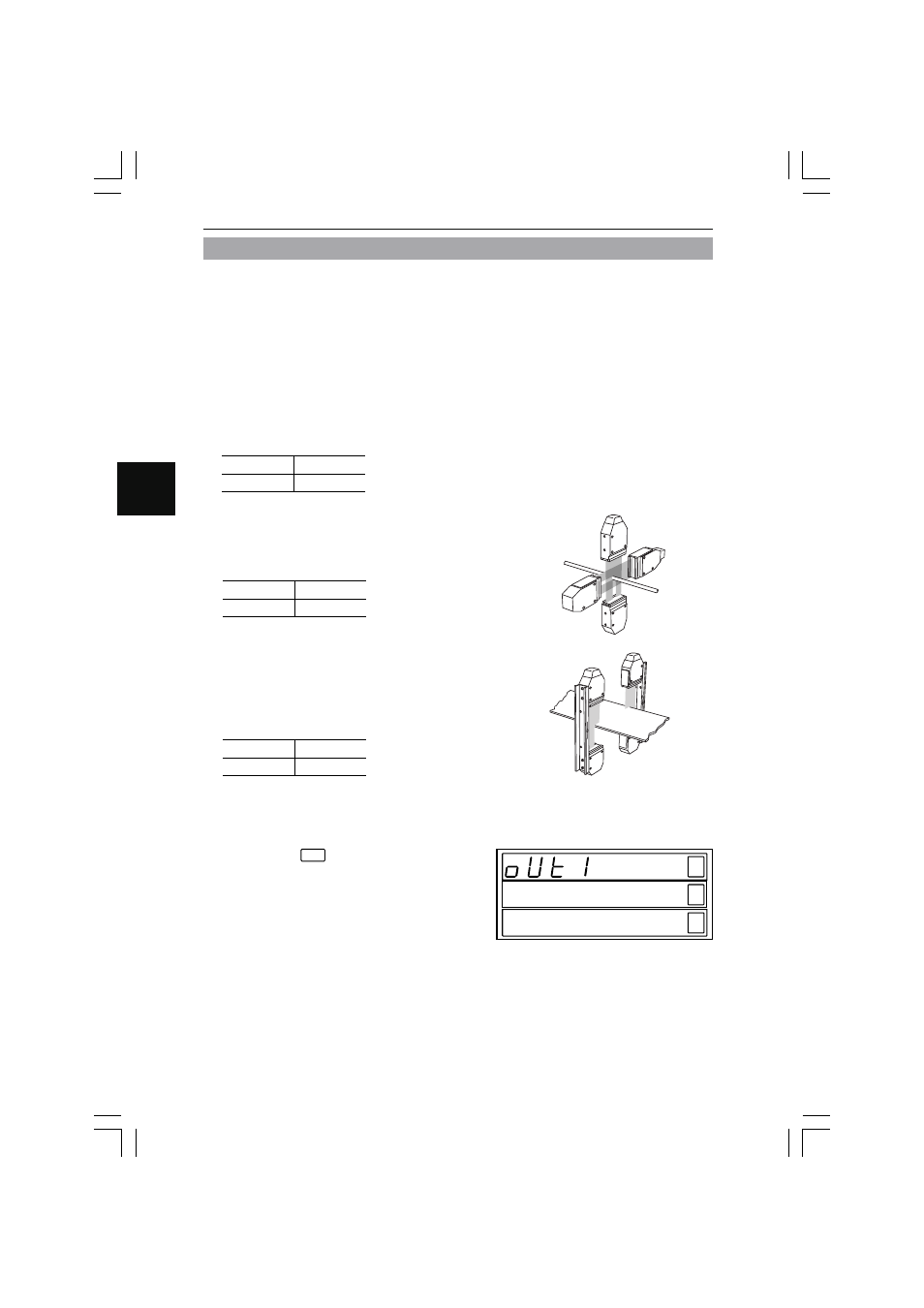

■ Examples of Area Calculation
By multiplying the measured values with the coefficient selected, automatic size calcu-
lation will be obtained. Set the coefficient as explained below to obtain the desired
output value.
No Calculation is Performed
A1
A2
1.0
OFF
Obtaining the Outer Diameter from Two
Measuring Heads
Set AREA1 for DIA of measuring head 1
and AREA2 for DIA in measuring head 2.
A1
A2
0.5
0.5
Obtaining the object width from Two
Measuring Heads
Set AREA1 for B-EDGE in measuring head
1 and AREA2 for B-EDGE in measuring
head 2.
A1
A2
–1.0
–1.0
■ Setting Method
1
Press the ENT key when the output
setting is displayed. HI
GO
LO
