3-5
Chapter 3 Operation Control
3
Hold Function
Measured values can be held and displayed. Furthermore, measuring mode combinations
allow the measurement of a variety of values, such as maximum and minimum values. The
types of measured values held vary with the measuring mode.
Refer to Measuring Mode on page 4-33 for details.
Measured values are held and displayed through the following functional components.
• Control panel
• External I/O terminals
• RS-232C interface
■ Control Panel
If either the OUT1 or OUT2 measured value is displayed, the displayed value will be
held. If both OUT1 and OUT2 measured values are displayed, both values will be held.

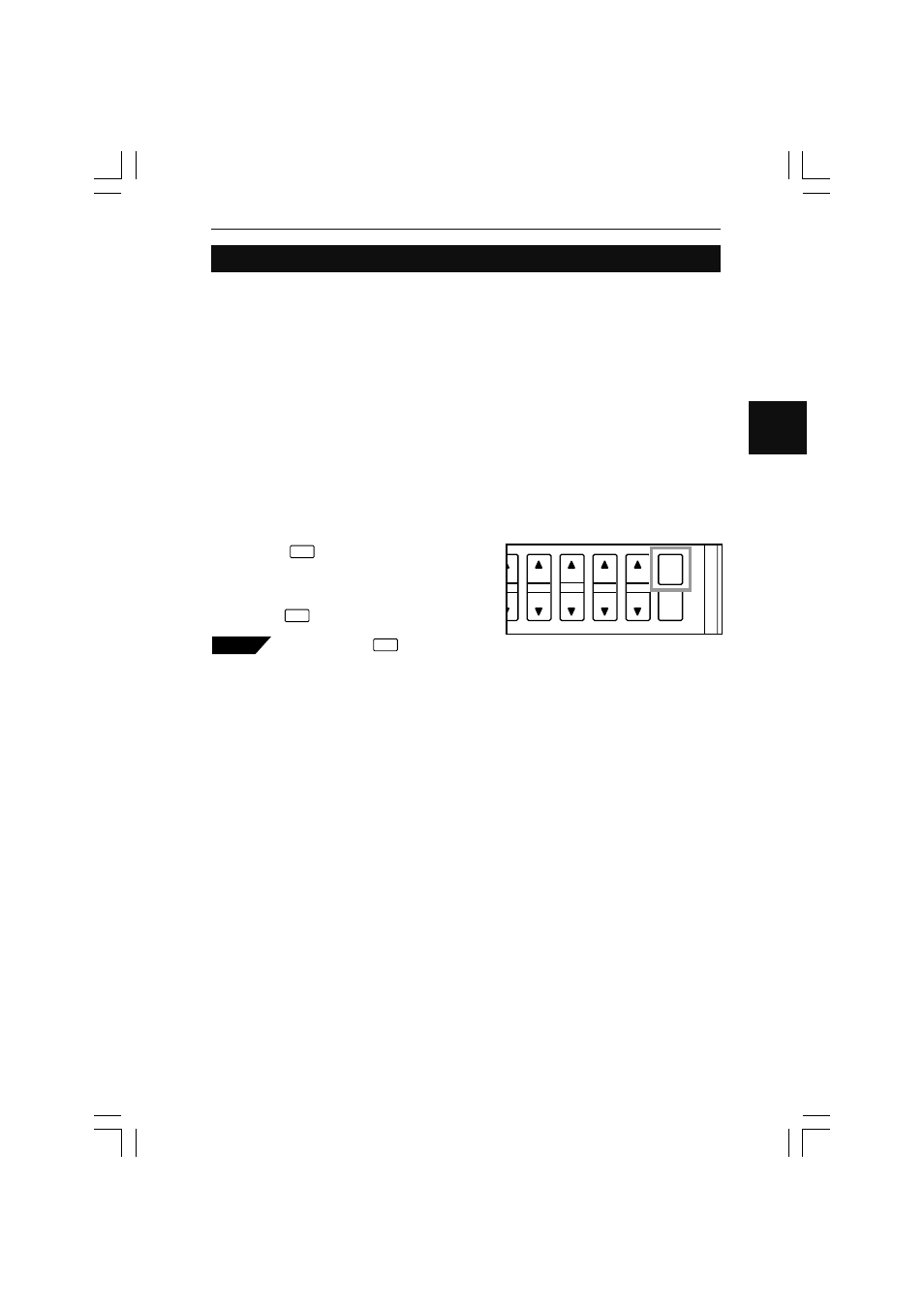

Press the HOLD key on the control panel.
When the measured value is held, the TIM
indicator on the right-hand side of the main
display will be lit. To cancel the hold status,
press the
HOLD key again.
Tips By pressing the ESC key, the
measured value kept on hold will
be reset.
AREA DISP
HOLD
ZERO
■ External I/O Terminals
Measured values will be held by short-circuiting the timing input terminal and COM
terminal together on the rear panel of the controller.
Refer to Section 6 I/O Terminals on page 6-1 for the external input terminals to be used.
■ RS-232C Interface
Commands sent by external devices through the RS-232C interface make it possible to
put measured values on hold.
Refer to Section 7 RS-232C on page 7-1 for the commands in detail.
