Server Component Replacements—TIGH2U Server
5.5.3 Installing a New SAS Backplane Board
To install a new backplane board, the drive bay assembly must be removed from the chassis and the
old backplane board removed. For instructions, see Table 5.5.1, “Removing the Drive Bay Assembly”
on page 93 and Table 5.5.2, “Removing the SAS Backplane Board from the Drive Bay Assembly” on
page 94 .
1. Line up the new backplane board with the back of the drive bay assembly. ( Figure 75 “A”)
2. Fasten the backplane board to the drive bay assembly with three screws, as shown. (“B”)

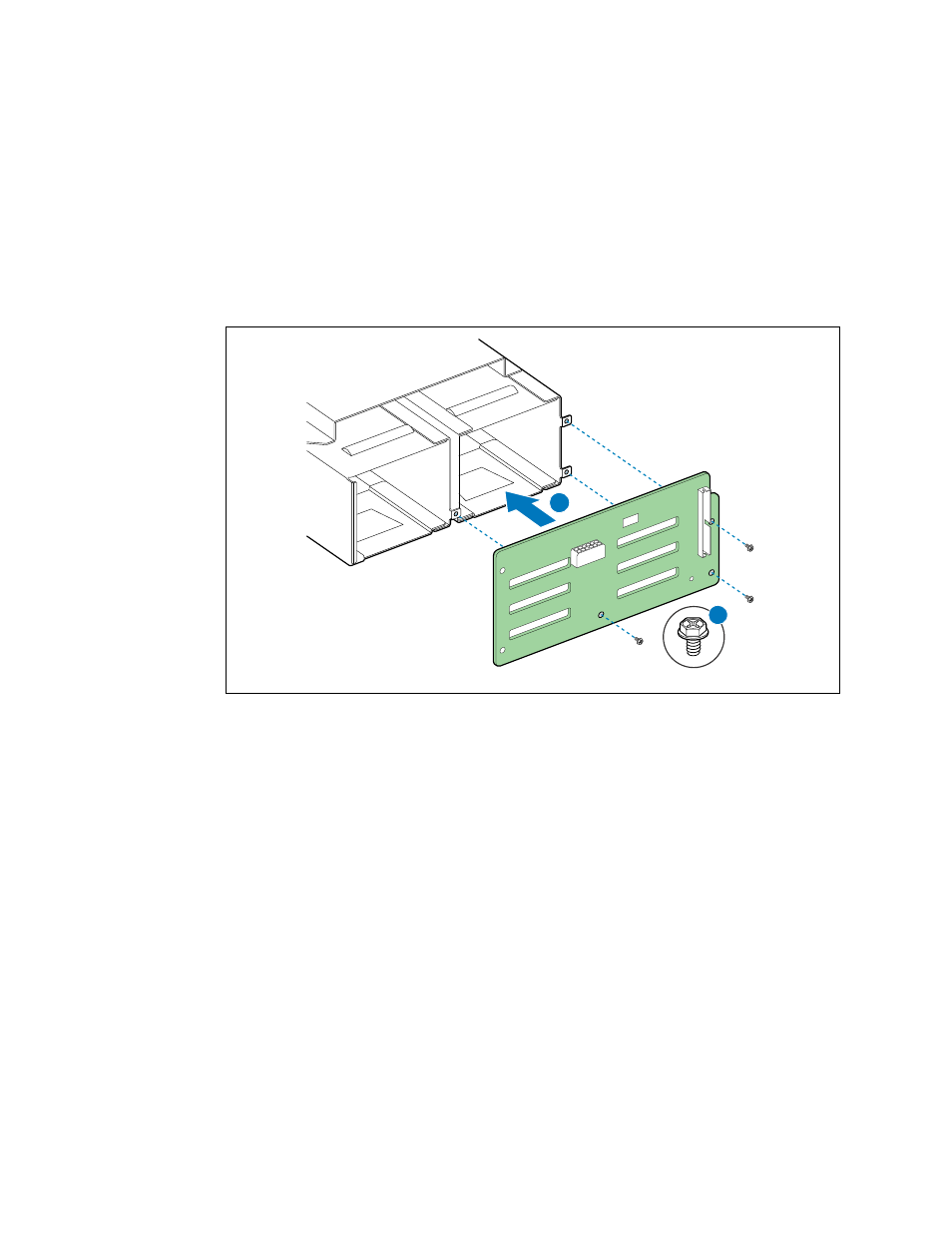

Figure 75. Installing the SAS Backplane Board
TS000316
A
B
