TIGH2U Server—Server Component Installations and Upgrades
Kontron Carrier Grade Server TIGH2U
Product Guide, rev.1.2
December 2009
50
5. Close the load plate completely. (
, “A”)

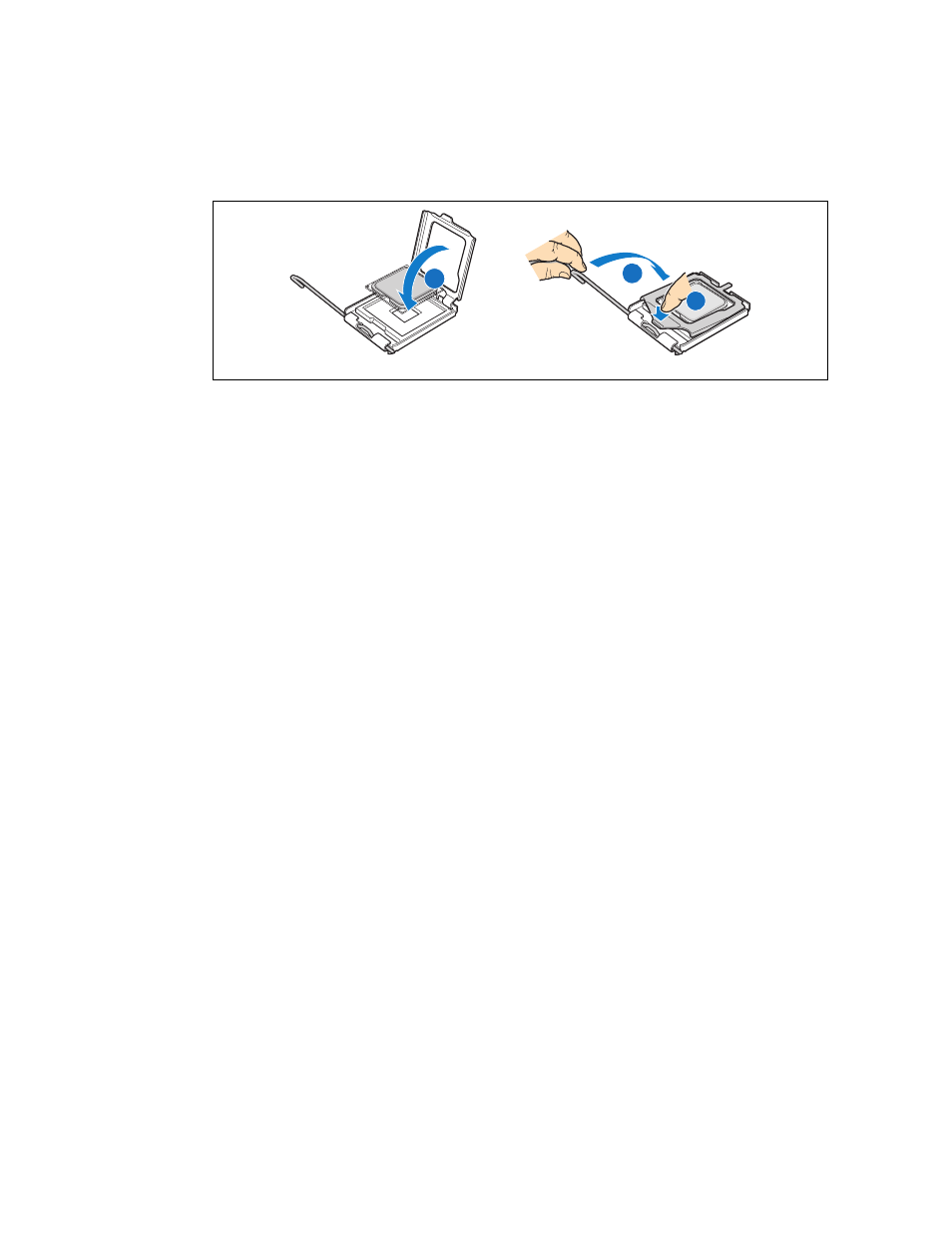

Figure 34.
Closing the Processor Load Plate and Socket Lever
A
C
B
AF000773
6. Close the socket lever and ensure that the load plate tab engages under the socket lever when
fully closed. (“B” and “C”)
3.4.5.4
Installing the Heat Sink
1. If this is a new heat sink (not the one you removed above), remove the protective film, if present,
on the Thermal Interface Material (TIM) located on the bottom of the heat sink.
2. Set the heat sink over the processor, lining up the four captive screws with the four posts
surrounding the processor. Align the heat sink fins to the front and back of the chassis for correct
airflow (front to back). Use caution and make sure that cables are not pinched beneath the heat
3. Loosely screw in the captive screws on the heat sink corners by tightening one, then the one
diagonally opposite, and so on.
4. Gradually and equally tighten each captive screw in diagonal order until each is firmly tightened.
See
for the order.
Caution:
The torque spec for these screws is 8-inch pounds. Be careful not to exceed it.
3.4.6
Other Installation and Upgrade Options
To install the server into a rack, see
“Installing the Server into a Rack”
, below. If you want to install
other optional components, see
Chapter 4, “Optional Component Installations”
If you are finished setting up your TIGH2U Server, replace the front bezel, the top cover, and
reconnect the external cables and power cord(s).
3.5
Installing the Server into a Rack
Installation instructions for the standard bracket kit and the optional rail kit are included with each kit.
These instructions can also be found on the server deployment toolkit CD and at
(Search for TIGH2U, click on Product Downloads, and then Ordering Guide) or on the Kontron
Deployment Assistant CD.
3.5.1
Connecting the Power Cord
Note:
When using a rack, only install the power cord(s) after the server is sucessfully
installed in the rack.
