Server Component Installations and Upgrades—TIGH2U Server
Caution:
The underside of the processor has components that may damage the socket pins if
installed improperly. The processor must align correctly with the socket opening before
installation. Gently place the processor onto the socket surface. Do not drop or push
the processor into the socket!
2. Orient the processor with the socket so that the processor cutouts match the socket notches.
(See
, “A”.)
3. Gently place the processor in the socket. (“B”)

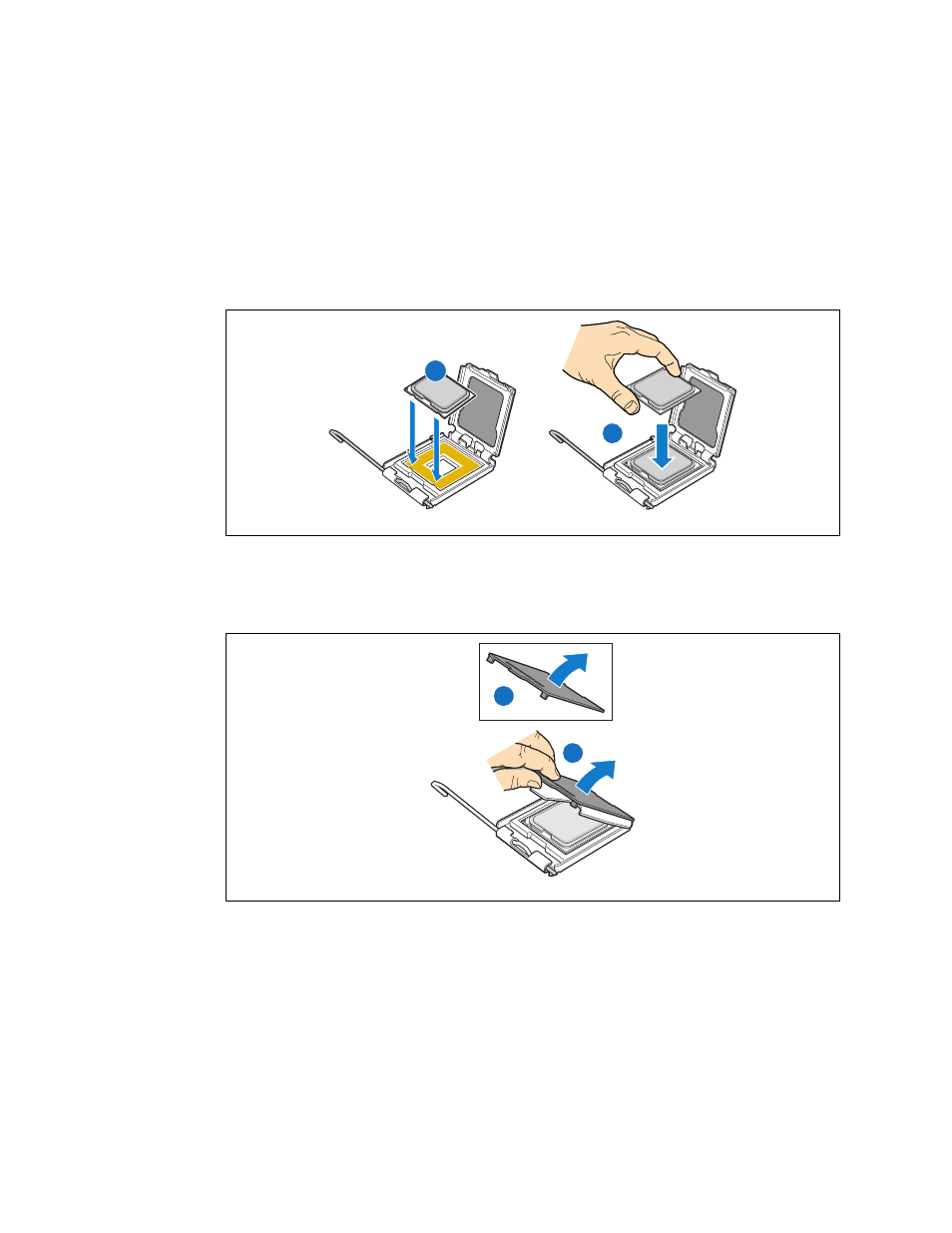

Figure 32.
Installing the Processor in the Processor Socket
A
B
AF000771
4. Remove the socket protective cover by grasping the cover tab and pulling it away from the load
plate. Store the protective cover for future use. (“A” and “B”)
Figure 33.
Removing the Socket Protective Cover
B
A
AF000772
