Kontron Carrier Grade Server TIGH2U
December 2009 Product Guide, rev.1.2
59

Optional Component Installations—TIGH2U Server
4.2.5 Installing the PCI Riser Card Assembly
1. Hold the riser card assembly by the two blue handles.
2. Insert the two riser card edge connectors into the super slot header and the smaller low-profile
riser card header next to it on the server board. (See “A” in Figure 36 .)
3. Align the forks on the riser card assembly with the pins on the rear chassis panel. (See “B” in
Figure 36 )
4. Slide the PCI fan assembly back and then to the right to attach the fan assembly to the riser card
assembly.
5. Insert the locking pin for the PCI fan assembly. See Figure 36 (“A”).
6. Set the PCI riser retention plate in place over the power supply area and pull it forward to lock it
into place.
7. If this is the last task you are performing, replace the top cover, see Section 3.2.4, “Installing the
Chassis Cover” on page 27 .
4.3 Installing an I/O Expansion Module
Two types of optional I/O expansion modules are available for the Carrier Grade Server TIGH2U:
• A dual GbE NIC module
• An external SAS hard disk drive module
Before installing an I/O expansion module you must remove the top cover and the PCI riser card
assembly.
1. Remove the chassis top cover. For instructions, see Section 3.2.3, “Removing the Chassis Cover”
on page 26 .
2. Remove the PCI riser card assembly. For instructions, Section 4.2.2, “Removing the PCI Riser
Card Assembly” on page 56 .
3. From the inside of the chassis, squeeze the sides of the I/O expansion module filler panel to
remove it from the rear panel. ( Figure 39 , “A”)

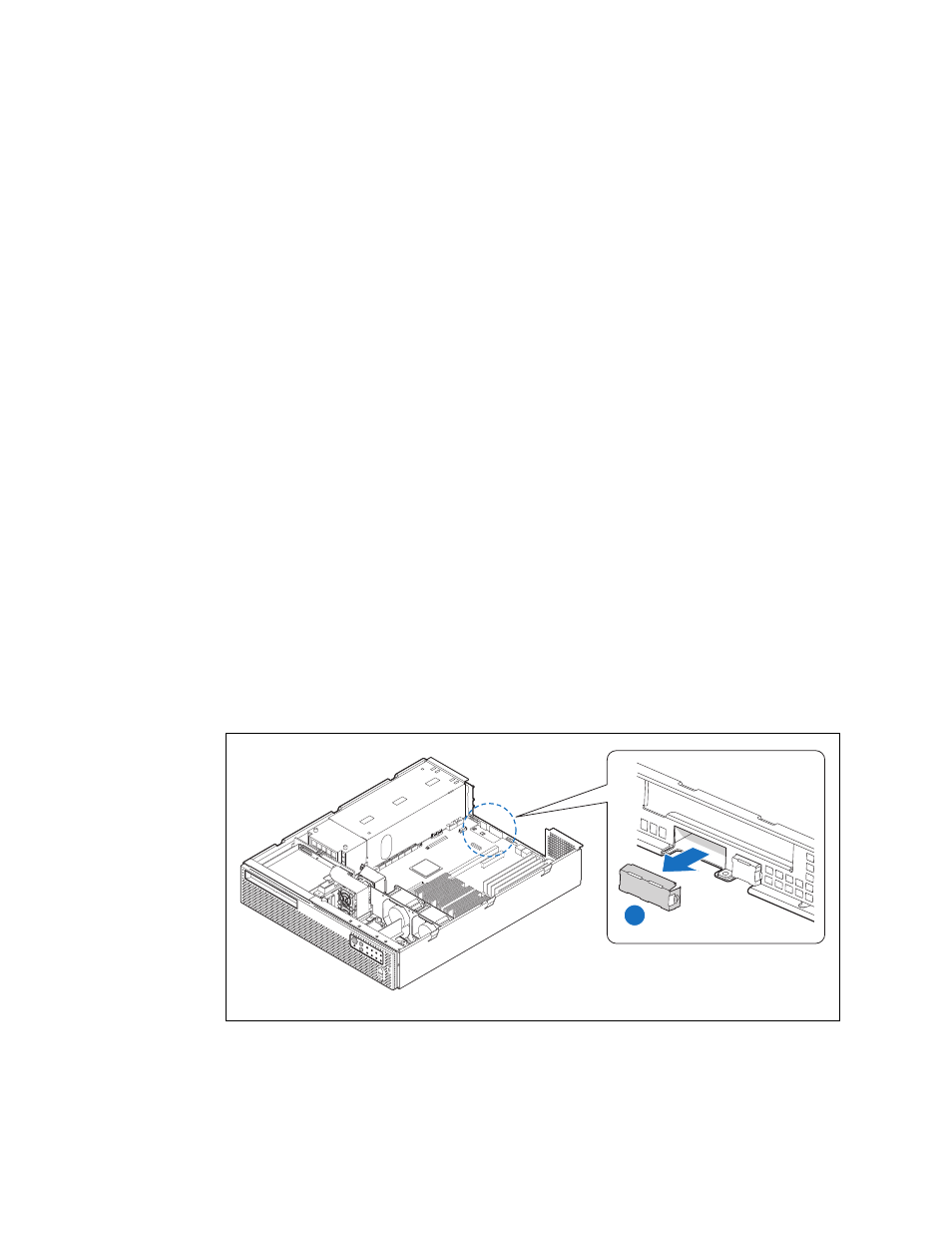

Figure 39. Removing the I/O Module Filler Panel
TS000425
A
4. Snap the three I/O expansion module standoffs into the server board. ( Figure 40 , “A”)
5. Attach the I/O expansion module to the server board connector (“B”) and the standoffs.
