Optional Component Installations—TIGH2U Server
Note:
Your SMART Embedded USB Solid-State Drive came with two cables. You will only need
the 2.5-inch cable for this installation.
6. Plug one end of the 2.5-inch SSD cable into the connector on the rear of the eUSB SSD. (“A”)
7. If you chose to remove the TAM board, reinstall it. For instructions, see
.
8. Connect the other end of the SSD cable into the connector header on the SFP board. (“B”)

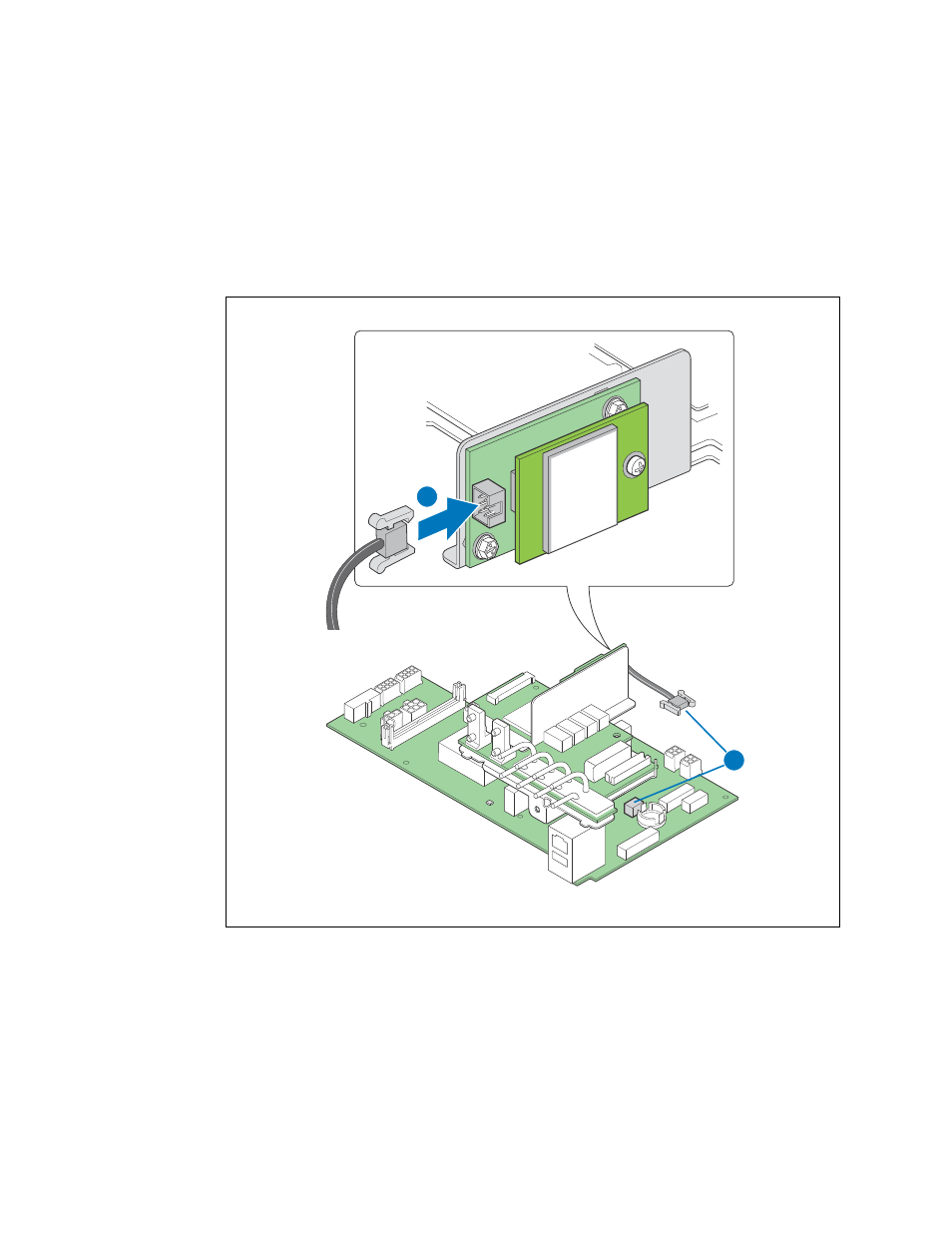

Figure 46.
Connecting the Embedded USB Solid-State Drive Cable
A
TS000449C
B
SFP Board
TAM Board
Interposer Board
Solid State
Drive
9. If this is the last task you are performing, replace the processor air duct and the chassis top
cover. Reconnect all the external devices and plug in the power cord(s).
4.6
Installing Hardware RAID 5 Components
The RAID 5 Kit includes three components for hardware RAID support:
• Intel
®
RAID Activation Key
