3.3.1.2 Attaching a Hard Drive to the Drive Tray
1. If a drive is already installed (that is, if you are replacing the drive), remove it by unfastening the
four screws that attach it to the drive tray. (“A”)

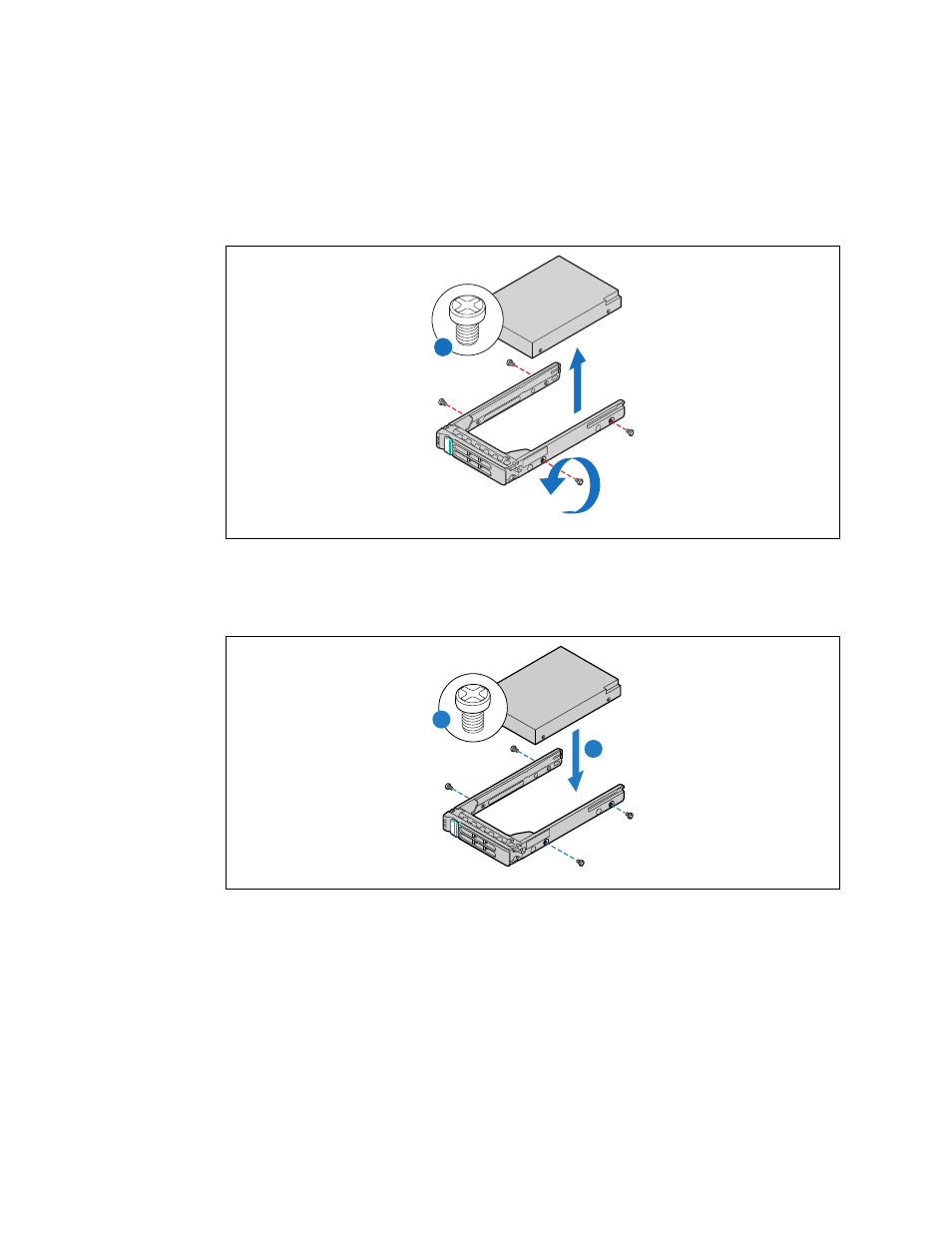

Figure 14. Removing a Hard Drive from the Drive Tray
TS000219
A
2. Install the new drive in the drive tray and secure the drive with the four screws provided with the
drive tray. ( Figure 15 , “A” and “B”)
Figure 15. Installing a Hard Drive in the Drive Tray
AF000810
A
B
