TIGH2U Server—Features
Kontron Carrier Grade Server TIGH2U
Product Guide, rev.1.2 December 2009
14
2.2 Back Panel

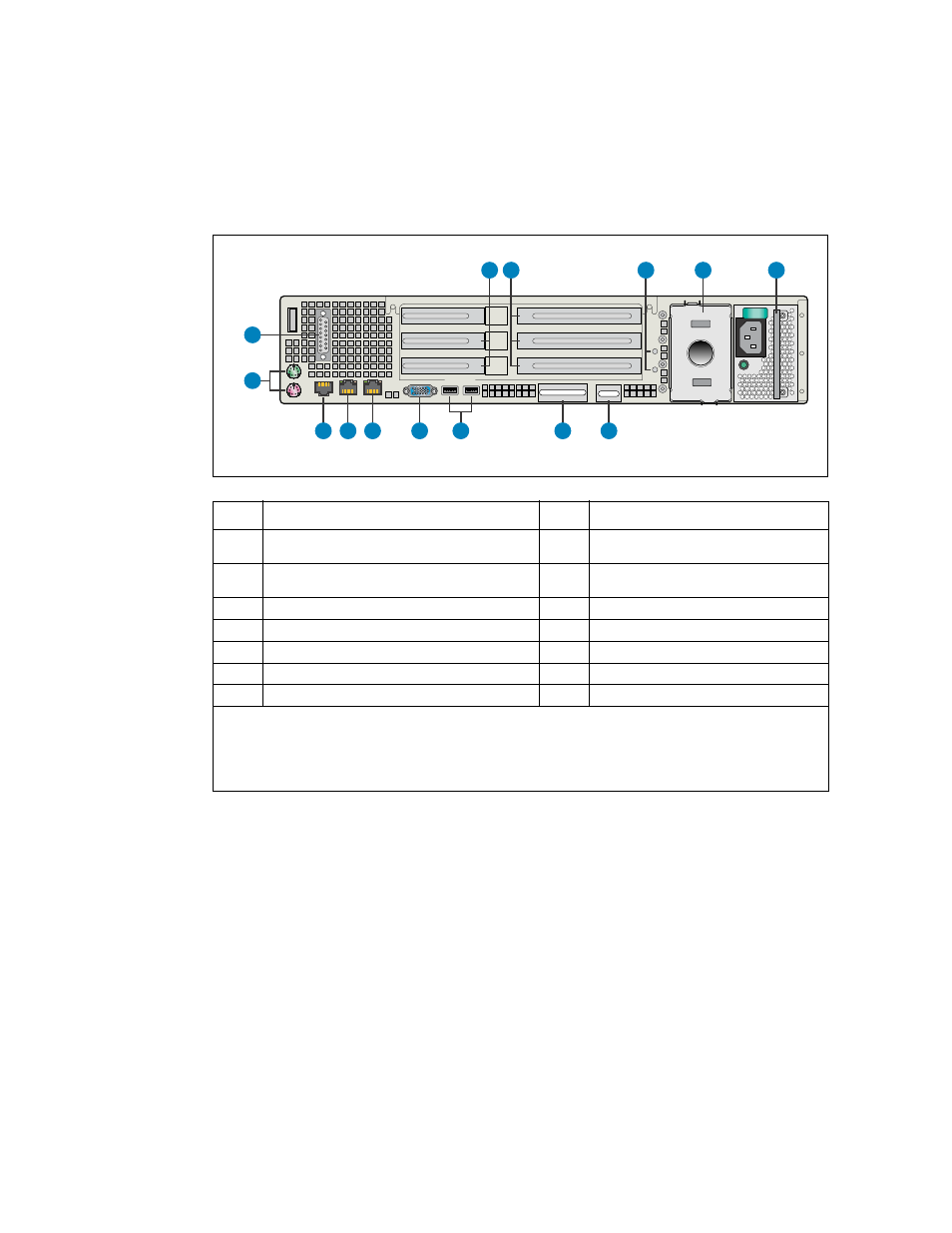

Figure 3 shows the back panel of the TIGH2U Server.
Figure 3. Rear View
TS000354
0 1
L K G F J I H
A D E B C
N
M
Item Description Item Description
A
Low-profile PCI Express add-in cards 
(or filler panels)
H USB 0 and USB 1 port connectors
B
Full-height PCI-X/PCI Express add-in cards (or
filler panels)
I Video connector
C Ground studs (used for DC-input system) J GbE NIC #2 connector ††††
D Power supply 2 slot; filler panel shown K GbE NIC #1 connector ††††
E Power supply 1 † L RJ45 serial port connector
F RMM2 NIC connector (optional) †† M PS/2 keyboard and mouse connectors
G I/O expansion module connector (optional) ††† N Alarms connector
† In Figure 3 , the power supply shown is an AC-input module. DC-input modules are also available.
†† If an RMM2 NIC is not present, a filler panel occupies this space.
††† May be either an external SAS port connector or Gigabit Etherport port connector. If neither of the
optional modules is installed, a filler panel occupies this space.
†††† The GbE ports are only designed to pass intra-building lightning surge when used with shielded
cabling, which must be grounded at both ends.
