Kontron Carrier Grade Server TIGH2U
December 2009 Product Guide, rev.1.2
67

Optional Component Installations—TIGH2U Server
4.6.2 Installing the RAID Smart Battery
WARNING
Danger of explosion if battery is replaced incorrectly. Replace only with the same or equivalent type
recommended by the equipment manufacturer. Discard used batteries according to manufacturer’s
instructions.
WARNING
Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af
samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.
ADVARSEL
Lithiumbatteri - Eksplosjonsfare. Ved utskifting benyttes kun batteri som anbefalt av
apparatfabrikanten. Brukt batteri returneres apparatleverandøren.
VARNING
Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som
rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.
VAROITUS
Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan
suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.
The Intel ® RAID Smart Battery is installed on the side wall of the chassis by the SAS Front Panel
(SFP) board. The connector, C8B3, is on the right end of the SFP board. You need to remove the front
bezel before installing the Smart Battery.
The Intel ® RAID Smart Battery has an internal battery power cable that must be connected.
1. Open the Intel ® RAID Smart Battery case lid. If necessary, use a small flat-blade screwdriver to
pry open the lid at the corners. ( Figure 48 , “A”)
2. Connect the battery cable. (“B”)

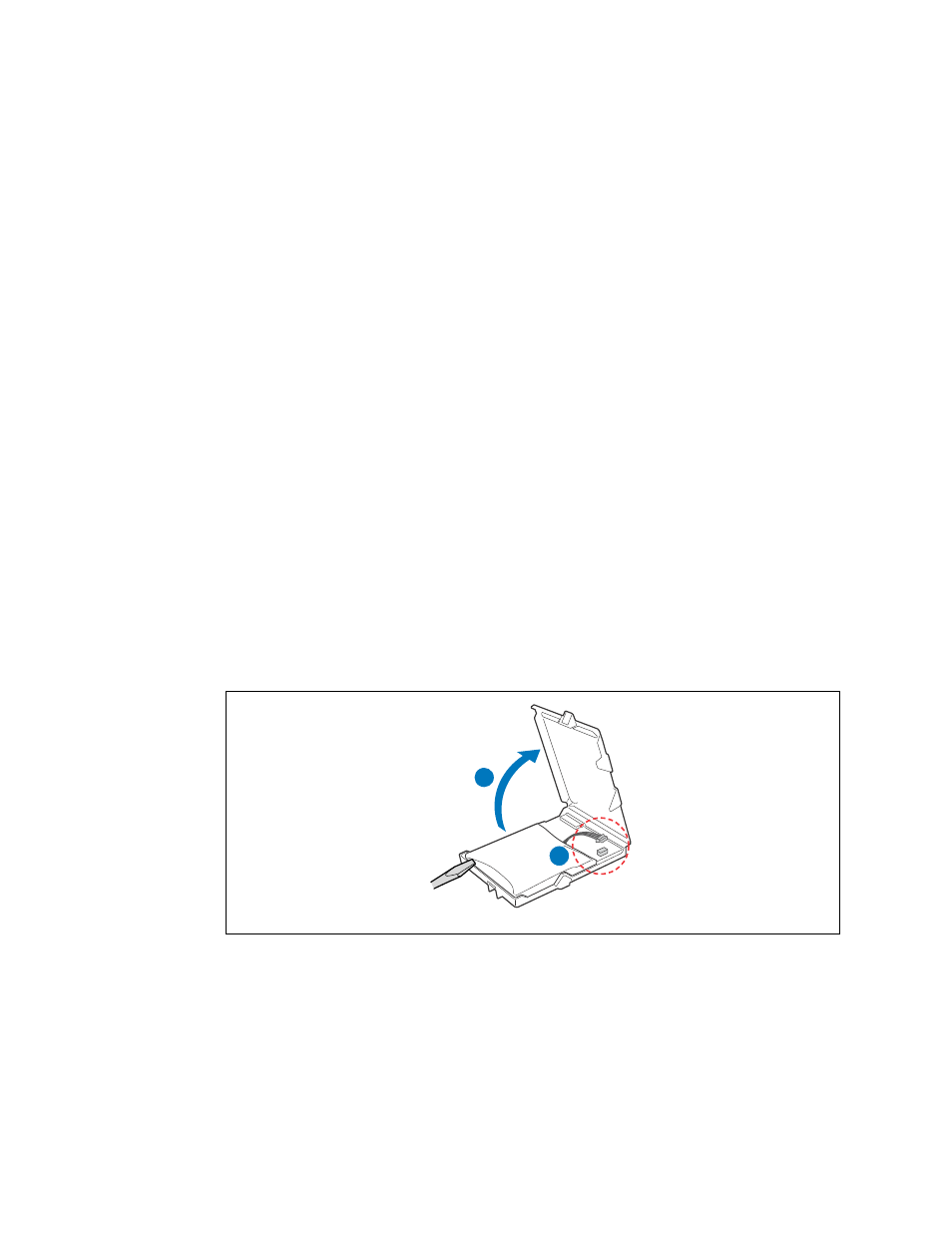

Figure 48. Connecting the RAID Smart Battery Power Cable
TS000301
A
B
