Kontron Carrier Grade Server TIGH2U
December 2009 Product Guide, rev.1.2
13

Features—TIGH2U Server
2.1 Server Components

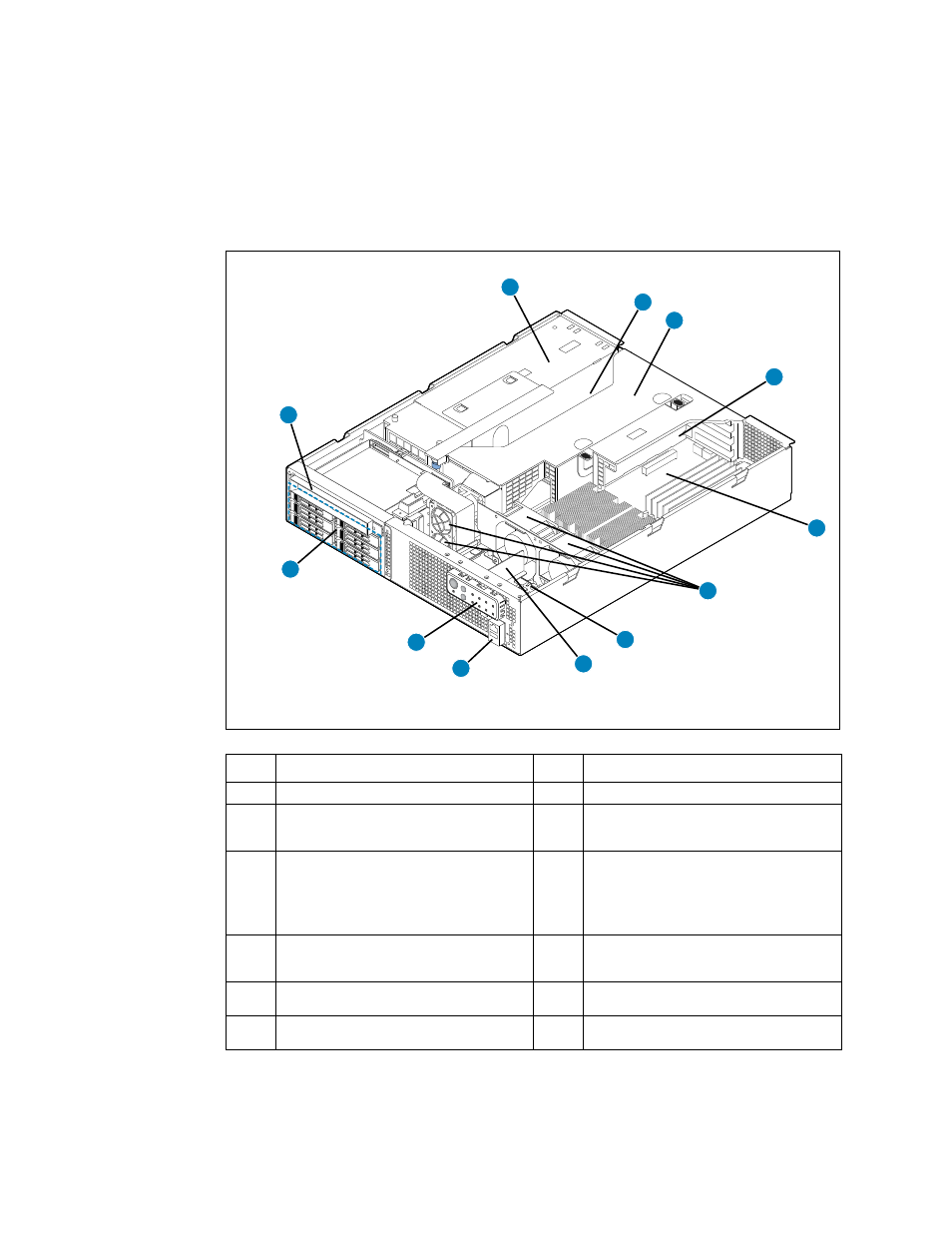

Figure 2 shows the TIGH2U Server with top cover and front bezel removed to show the internal
components. The components are listed on the next page.
Figure 2. Carrier Grade Server TIGH2U Components
TS000343
F
A
B
J
K
C
D
E
G
H
L
I
Note: View with fan ducting removed.
Item Description Item Description
A Optical drive (optional) G System fans
B
Power supply cage (contains one power
supply module with provision for an optional
second module)
H SAS front panel (SFP) board
C
Provision for PCI-X* and PCI Express*
(PCIe*) full-height and full-length add-in
cards
I
TAM board (behind front panel)
Note: The bracket on which the TAM board
is installed can also include an
optional SMART Embedded USB
Solid-State Drive, which provides
local memory storage
D
Riser card assembly (containing riser cards
for both full-height and low-profile add-in
cards)
J RJ45 COM2 and USB port 2 connectors
E
Provision for two PCI Express low-profile
add-in cards
K Control panel and status indicators
F Intel ® Server Board T5000PAL L
Hot-swappable SAS 2.5-inch disk drives (up
to six)
