Optional Component Installations—TIGH2U Server
2. Remove the processor air duct. For instructions see
Section 3.2.5, “Removing the Processor Air
.
3. The eUSB SSD attaches vertically to the TAM board. See the following figure, then choose your
installation method:
— Use a #1 Phillips offset screwdriver to install the Solid State Drive without removing the TAM
board. Continue with step 4, below.
— Remove the TAM board and then use a #1 Phillips screwdriver. For instructions to remove the
TAM board, see
Section 5.3.1, “Removing the TAM Board” on page 84
. Continue with step 4,
below.

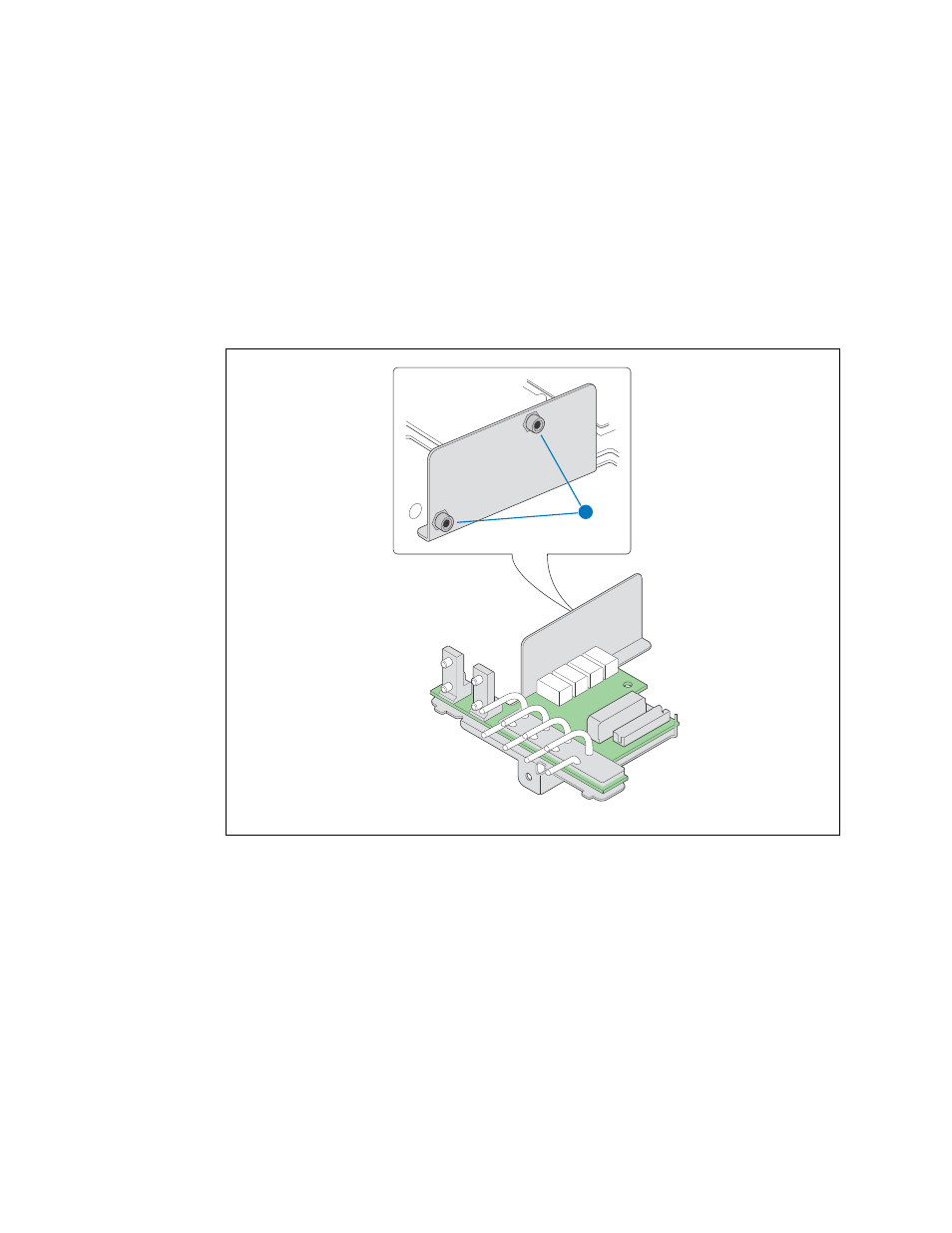

Figure 43.
Embedded USB Solid-State Drive Mounting Location
TS000449
TAM Board
A
