TIGH2U Server—Server Component Replacements
Kontron Carrier Grade Server TIGH2U
Product Guide, rev.1.2 December 2009
78
5.2.4 Removing the PCI Fan Assembly
Before the PCI fan assembly can be removed from the chassis, the chassis cover must be removed
and the flex cable that runs across the fan bracket must be disconnected.
1. Remove the flex cable support bracket. ( Figure 59 , “A”)

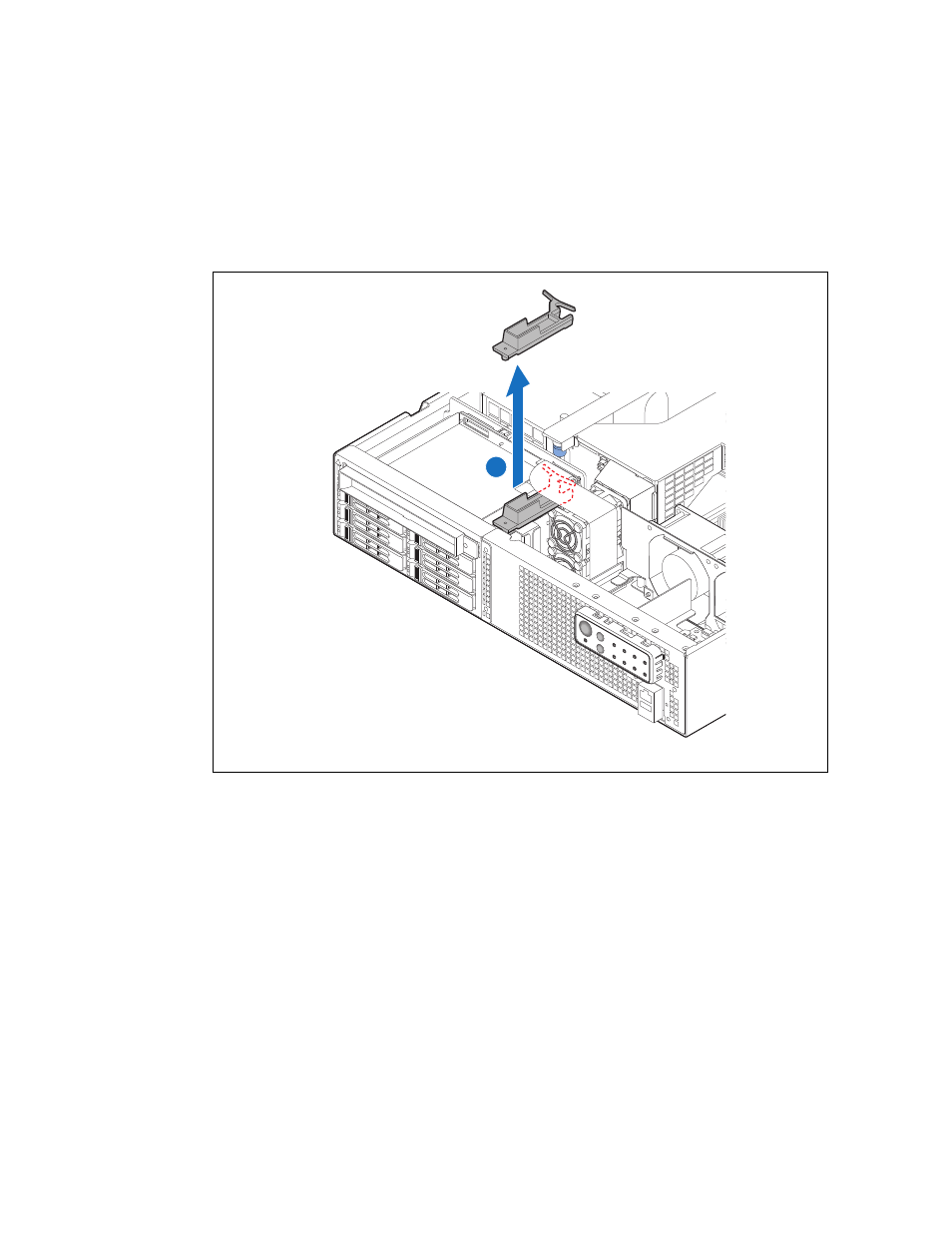

Figure 59. Removing the Flex Cable Support Bracket
TS000430
A
