TIGH2U Server—Server Component Replacements
Kontron Carrier Grade Server TIGH2U
Product Guide, rev.1.2
December 2009
80
3. Disconnect the PCI fan assembly power cables from the SAS front panel (SFP) board. (
,
“A”)
4. Pull up on the locking pin for the PCI fan assembly to remove it. (“B”)
5. Slide the fan assembly to the left to disengage the hooks. (“C”)
6. Lift the fan assembly. (“D”)

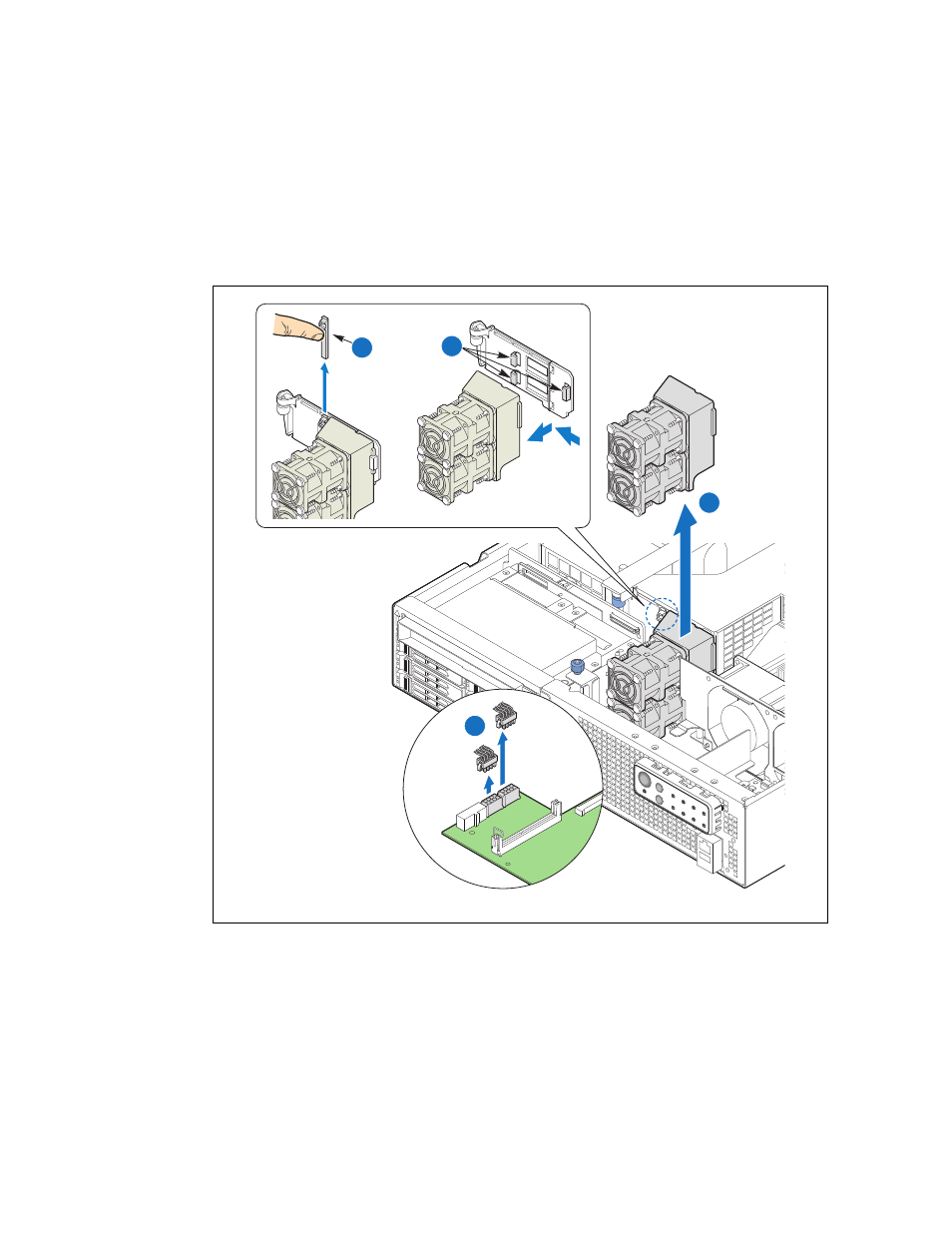

Figure 61.
Removing the PCI Fan Assembly
TS000433
B
C
A
D
