Kontron Carrier Grade Server TIGH2U
December 2009 Product Guide, rev.1.2
75

Server Component Replacements—TIGH2U Server
5.2.1 Removing the CPU Fan Assembly
1. Remove the chassis top cover. For instructions, see Section 3.2.3, “Removing the Chassis Cover”
on page 26 .
2. Remove the processor air duct. For instructions, see Section 3.2.5, “Removing the Processor Air
Duct” on page 28 .
3. Unplug the CPU fan assembly power cables from the front panel board. ( Figure 56 , “A”)
4. Loosen the blue thumbscrew fastener on the CPU fan assembly bracket. (“B”)
5. Lift the fan assembly from the chassis. (“C”)

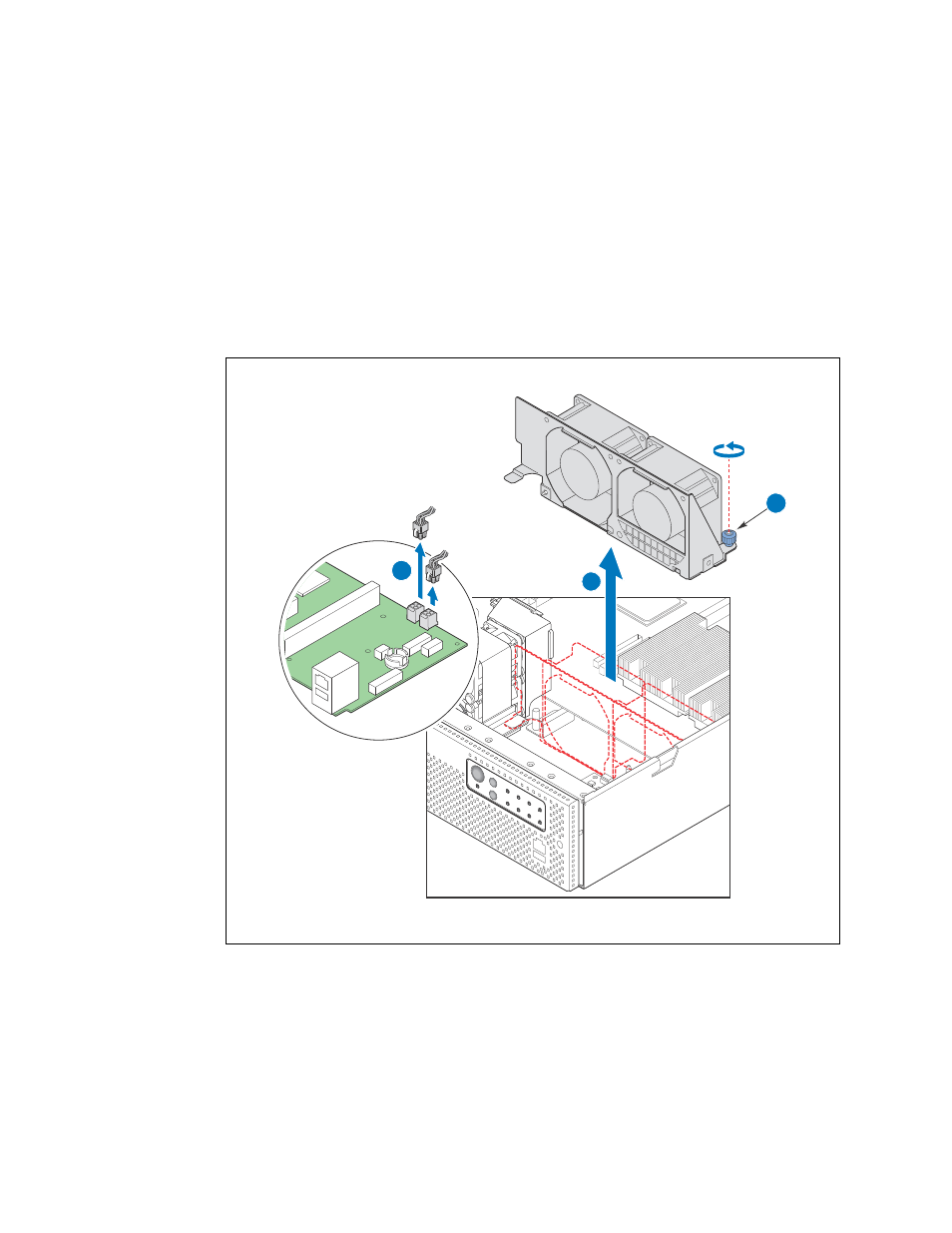

Figure 56. Removing the CPU Fan Assemblies
B
C
TS000429
A
