Kontron TIGH2U Carrier Grade Server User Manual
Page 16
TIGH2U Server—Features
Kontron Carrier Grade Server TIGH2U
Product Guide, rev.1.2
December 2009
16

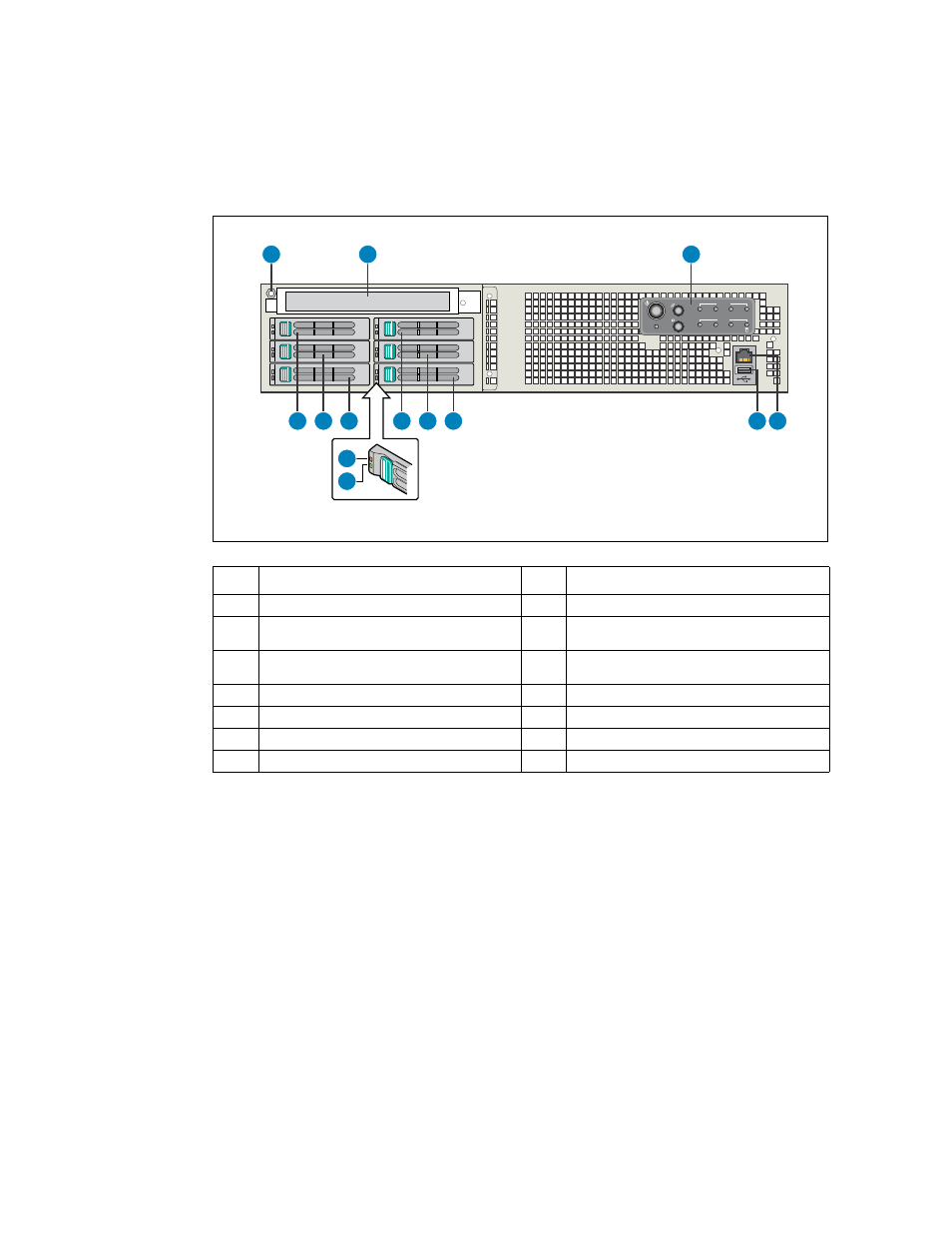

shows the front panel of the TIGH2U Server with the bezel removed. The components are
listed on the next page.
Figure 5.
Front View (Bezel Removed)
Alarms
Status
ID
ON
NIC
CRT
MNR
PWR
MJR
TS000346
A
B
C
D
E
K
H
J
G
I
F
L
M
Item
Description
Item
Description
A
Anti-static connection point
H
Hard drive bay 4
B
Optical drive (optional) or filler panel if no
drive is installed
I
Hard drive bay 1
C
Front panel control switches and status LEDs
(See
for details)
J
Hard drive bay 3
D
Front panel serial port connector (RJ45)
K
Hard drive bay 5
E
USB port 2 connector
L
Drive fault indicator (one per hard drive)
F
Hard drive bay 0
M
Drive activity indicator (one per hard drive
G
Hard drive bay 2
