TIGH2U Server—Optional Component Installations

Kontron Carrier Grade Server TIGH2U

Product Guide, rev.1.2

December 2009

60

6. If this is the last task you are performing, install any other components you removed.

— For instructions to replace the PCI riser assembly, see

Section 4.2.5, “Installing the PCI Riser

Card Assembly” on page 59

.

— Insert the locking pin for the PCI fan assembly. See

Figure 36

(“A”).

— For instructions to replace the top cover, see

Section 3.2.4, “Installing the Chassis Cover” on

page 27

.

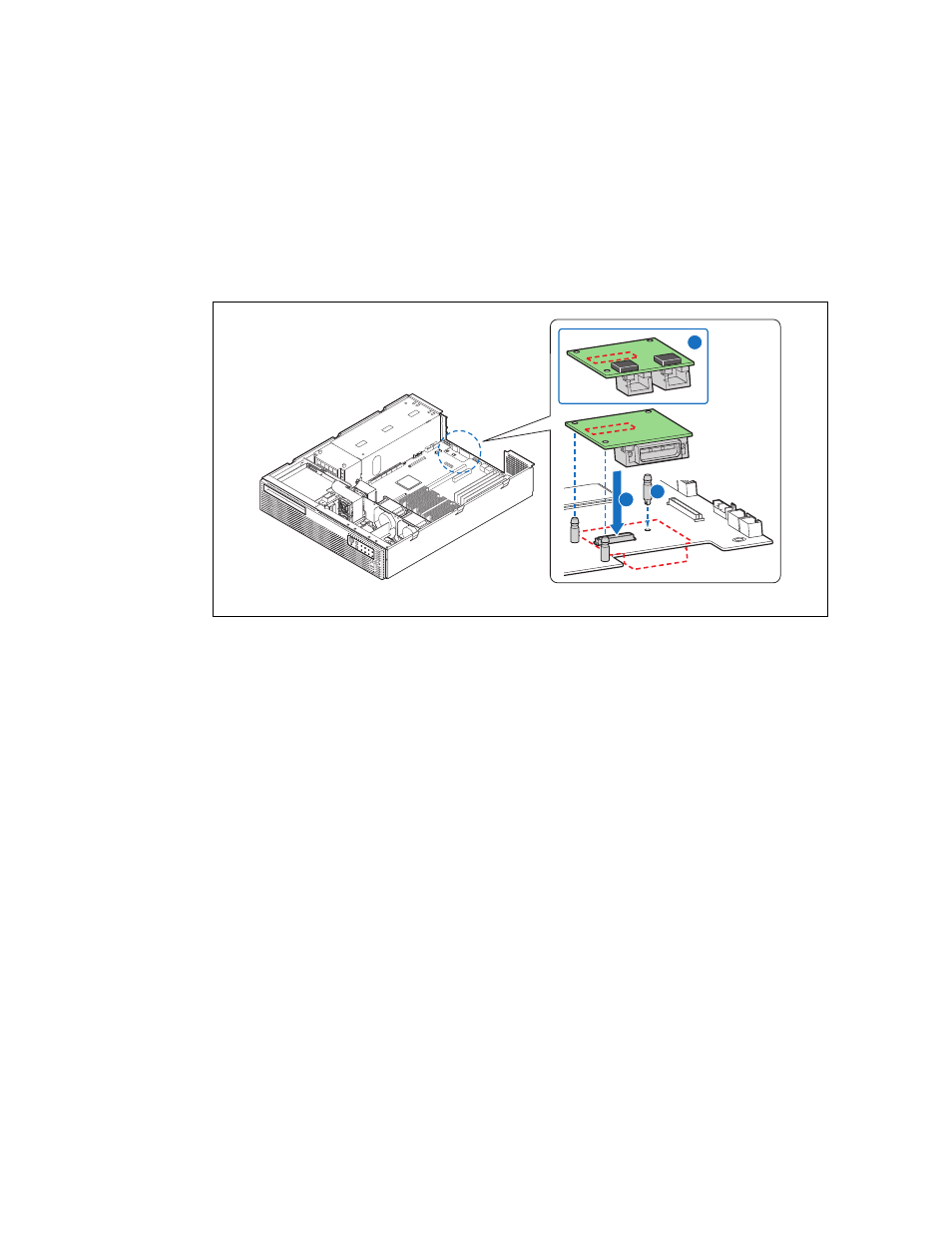

Figure 40.

Installing an I/O Expansion Module

TS000426

C

A

B
