3.3.2.1 Removing the Power Supply Module
1. Check the status LED to determine which power supply has failed and disconnect the appropriate
power cable. ( Figure 17 , “A”)
2. Press and hold the green safety lock downward to disengage the power supply module.
3. Grasp the handle (“B”) and pull the power supply module from the chassis.

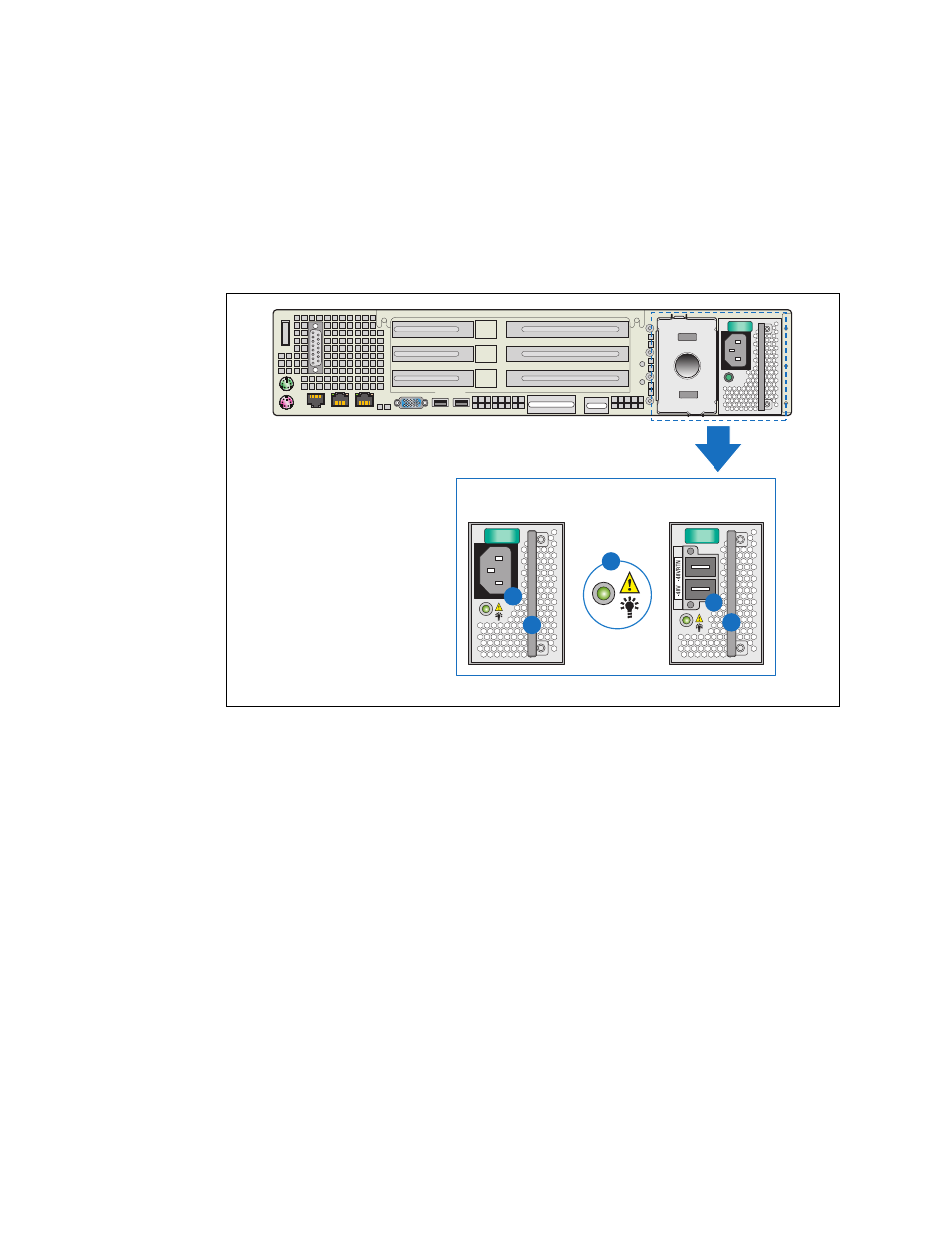

Figure 17. AC and DC Power Supplies
AC PS DC PS
A
B B
C
D
TS000424
3.3.2.2 Installing a Power Supply Module
1. Slide the power supply module into the chassis slot until it clicks into place.
2. Make sure the power supply is fully inserted by pulling on the handle. When correctly installed,
the power supply will not slide out without pressing the green safety lock.
