5.2 Replacing the Fan Assemblies
Caution: Your server does not have hot-swappable fans. Before replacing any of the fan
assemblies, you must first take the server out of service, turn off all peripheral devices
connected to the system, turn off the system by pressing the power button, and unplug
the power cord(s) from the system or wall outlet.
The replacement/spare fan set consists of two dual-rotor PCI fans as shown in Figure 55 (“A”), two
dual-rotor CPU fans (“B”), and push rivets to attach the fans to the fan brackets.
Kontron specifies that a skilled technician can service the fans in approximately 15 minutes.

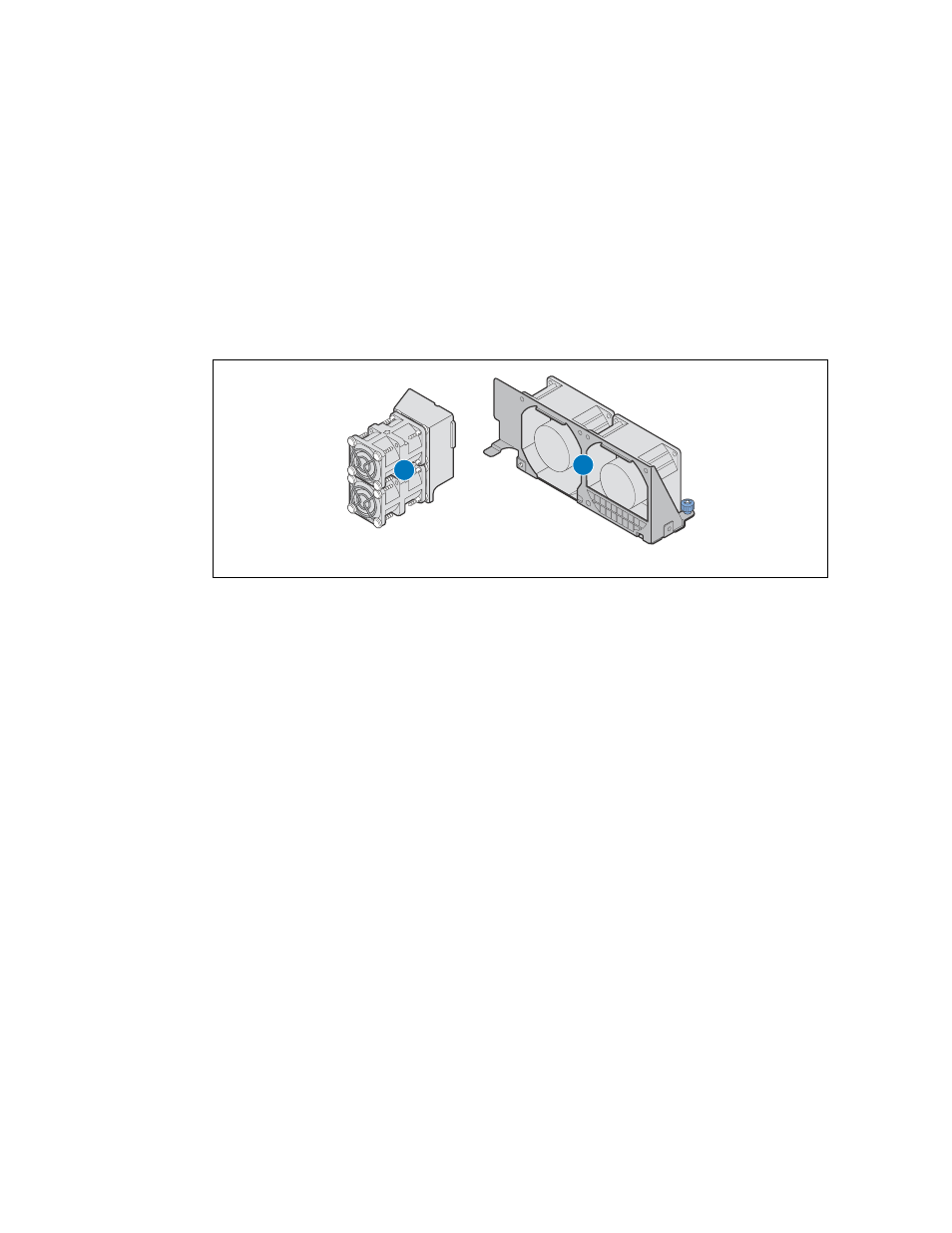

Figure 55. PCI Fan and CPU Fan Assemblies
TS000455
B
A
