Collecting and Reviewing Data 93
3. Tap the Offroute button to collect an off route measurement. The Off
Route Measurement screen appears.
4. Tap the User button. The Offroute User screen appears.
5. Highlight the parameter and press the RIGHT ARROW key to open the
menu of choices.
6. Select the choice by pressing the arrow keys, tapping the choice on the
touchscreen with the stylus, or typing in a value using the numeric key
pad.
7. Press the LEFT ARROW key to save your choices.
See Offroute User Parameters on page 112 for a description of the options in
the Offroute User screen.
To collect a user-defined measurement
1. After setting up the measurement, connect the proper transducer.

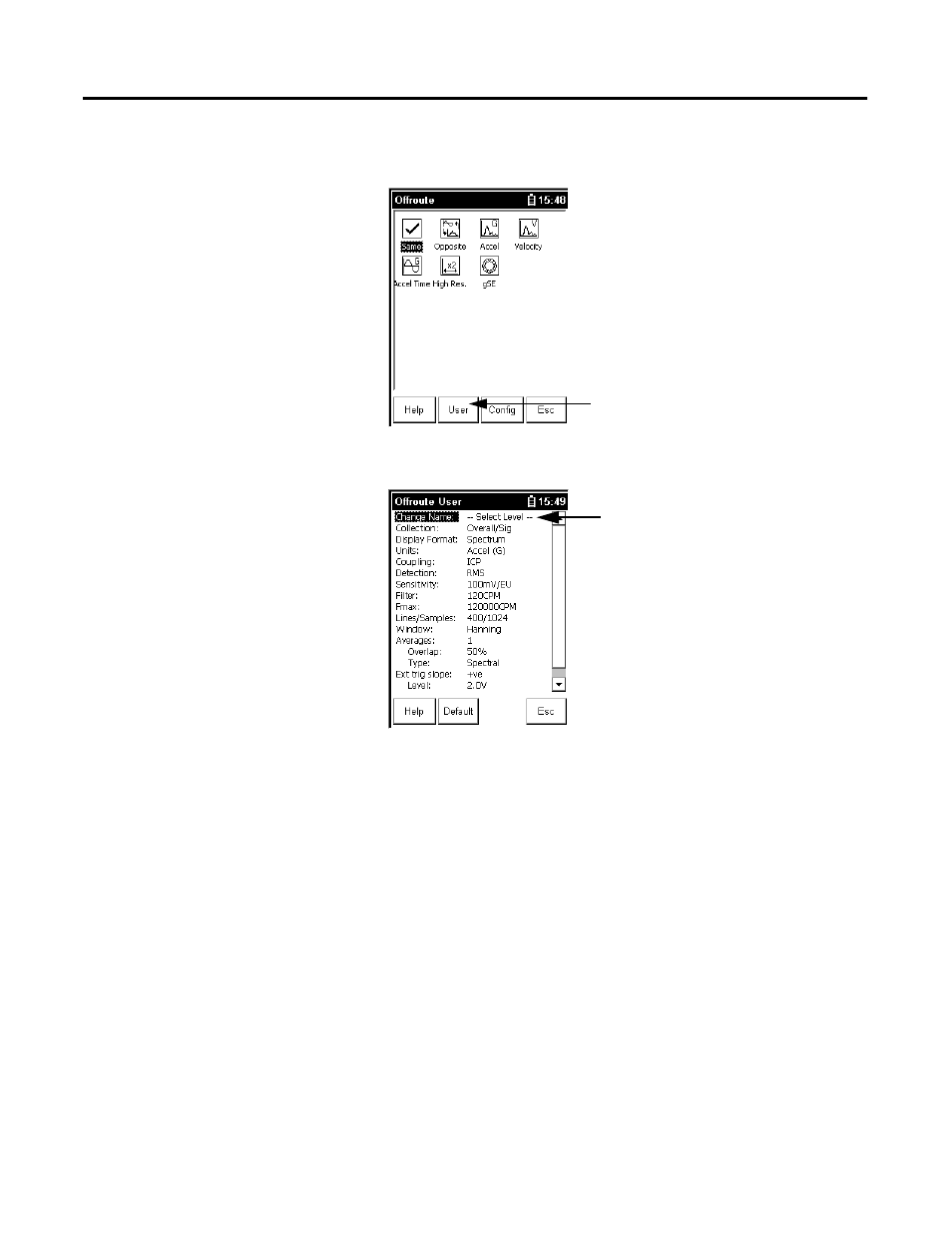

Tap User to create a user-defined
point
To highlight a parameter:
• press the UP or DOWN
ARROW key
• tap the parameter on the
touchscreen with the stylus
