Page 101

Publication GMSI00-UM001A-EN-E - February 2005
Collecting and Reviewing Data 95
If you do not have the Unscheduled location smart mode check box
selected, Emonitor stores unscheduled data in the unscheduled destination in
the hierarchy tree of the database.
You set the unscheduled destination with Tools > Set Unscheduled Dest.
See Emonitor online help for more information.
Reviewing Data
There
are several functions available to view and analyze data in the Enpac Ex.
This section discusses the available options for viewing and analyzing overall
and signature data. It also covers navigating through data in the Review Data
screen.

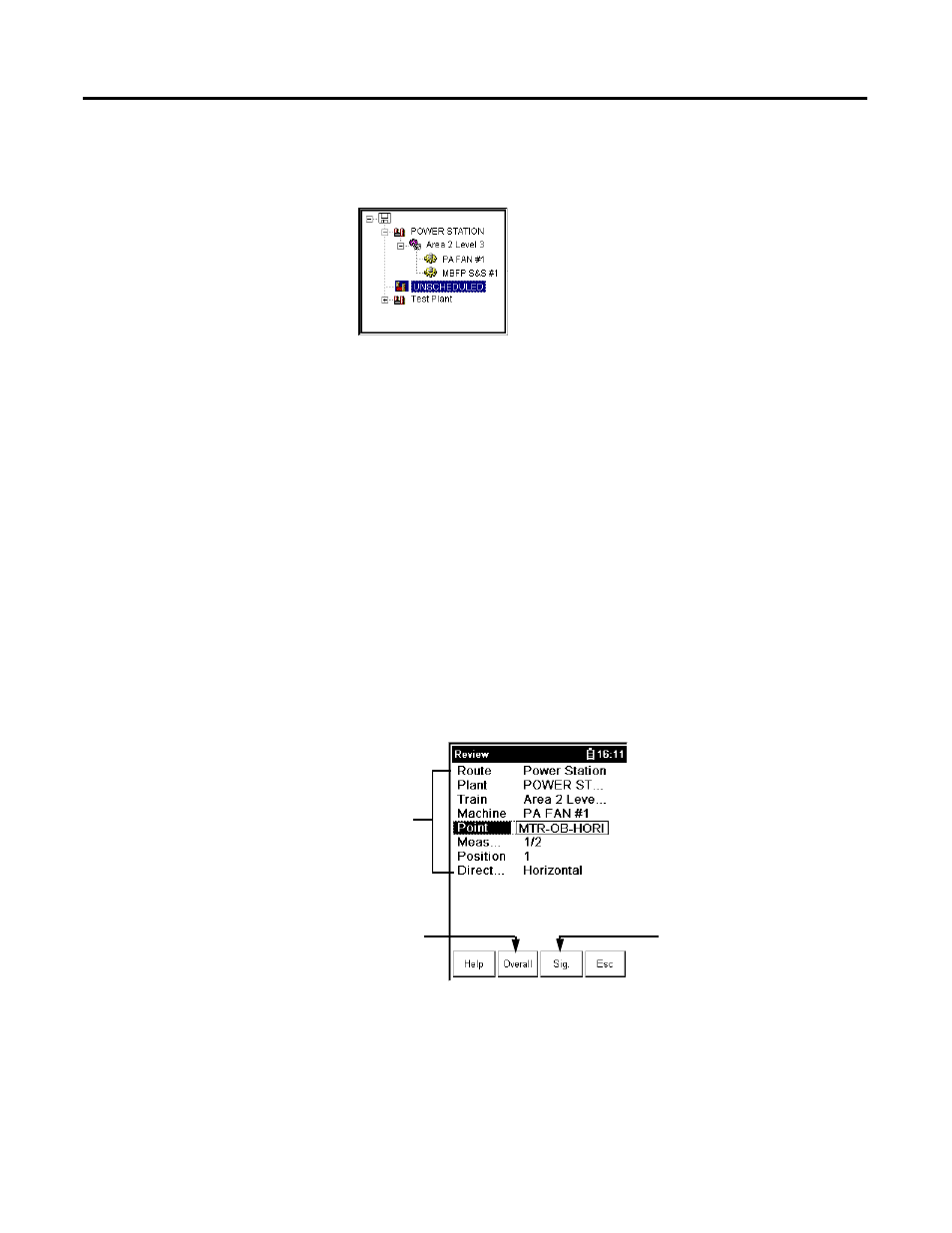

Review Data Screen
The Review Data screen allows you to navigate through the data and to review
previously collected route and off route data. Select Review Data from the
Main Menu to access the Review Data screen.
The data for you to review for the selected measurement is displayed at the
bottom of the Review Data screen. The Overall and Signature buttons are
Review spectral
measurement
Review overall
measurement
Select point to view by:
• pressing the UP or
DOWN ARROW key
• tapping the item on
the touchscreen with
the stylus:
Review spectral
measurement
