Rockwell Automation 441-PEN25 Enpac Ex Data Collector User Manual
Page 80

Publication GMSI00-UM001A-EN-E - February 2005
74 Loading and Unloading
Unloading Unscheduled (Off Route) Data from the Enpac Ex
Unscheduled measurements are measurements that are taken with the Off
Route function in the Enpac Ex. They are called off route measurements in
the data collector. See the Emonitor online help for more information on
setting the Unscheduled Measurement Destination.
You can unload the unscheduled measurements automatically when unloading
a list.

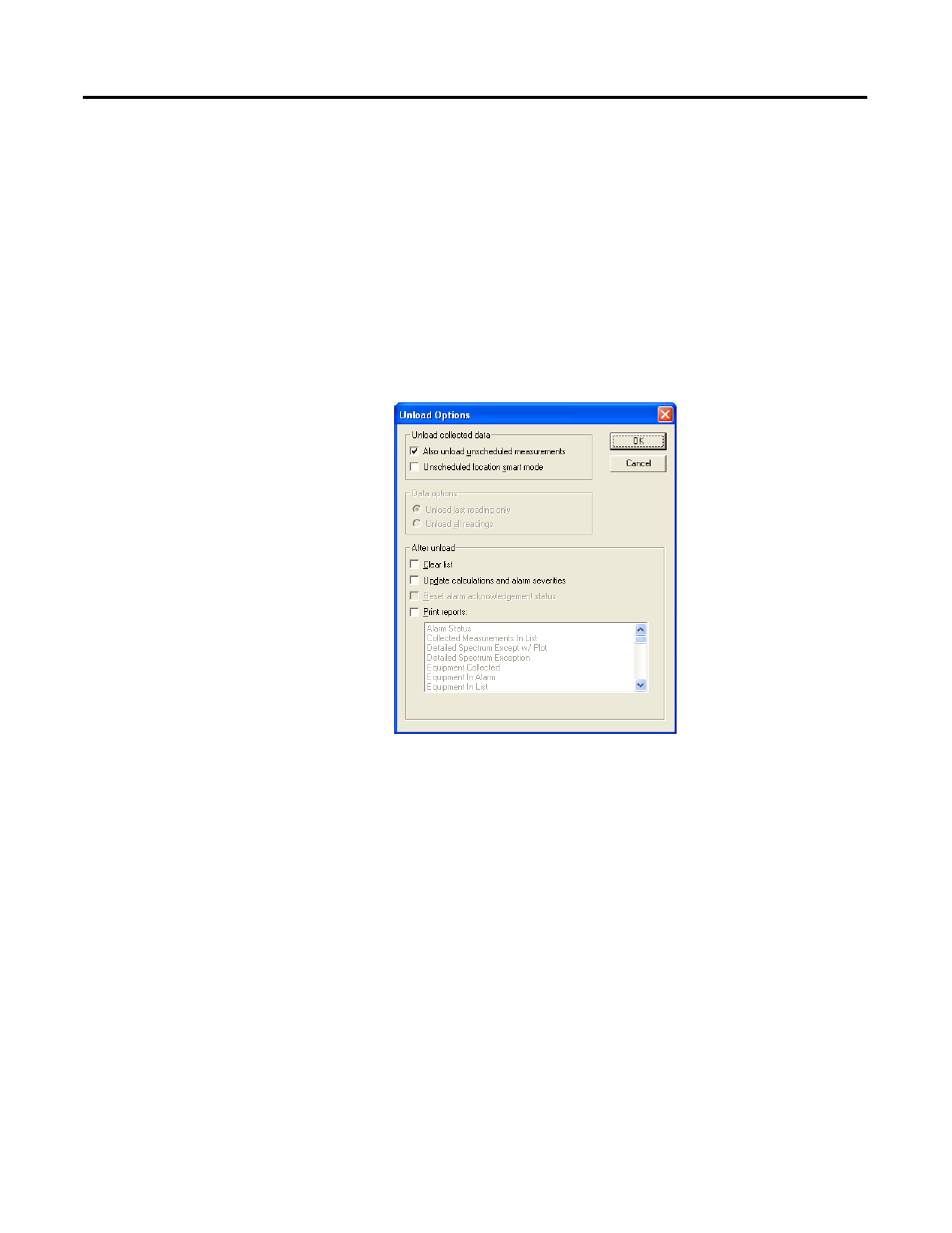

1. Click the Unload Options button in the Load/Unload dialog box.
The Unload Options dialog box appears.
2. Select the Also unload unscheduled measurements check box.
3. Click OK.
Unloading Measurements using Smart Unscheduled Mode
You can collect off route measurements in the Enpac Ex that match your
existing measurement definitions in Emonitor. This is done by choosing one
of the pre-defined measurement icons on the Off Route Measurement screen
in the Enpac Ex. When you unload the data, Emonitor stores the data under
